4-4 BE1-50/51B-244 Installation 9252000793 Rev C

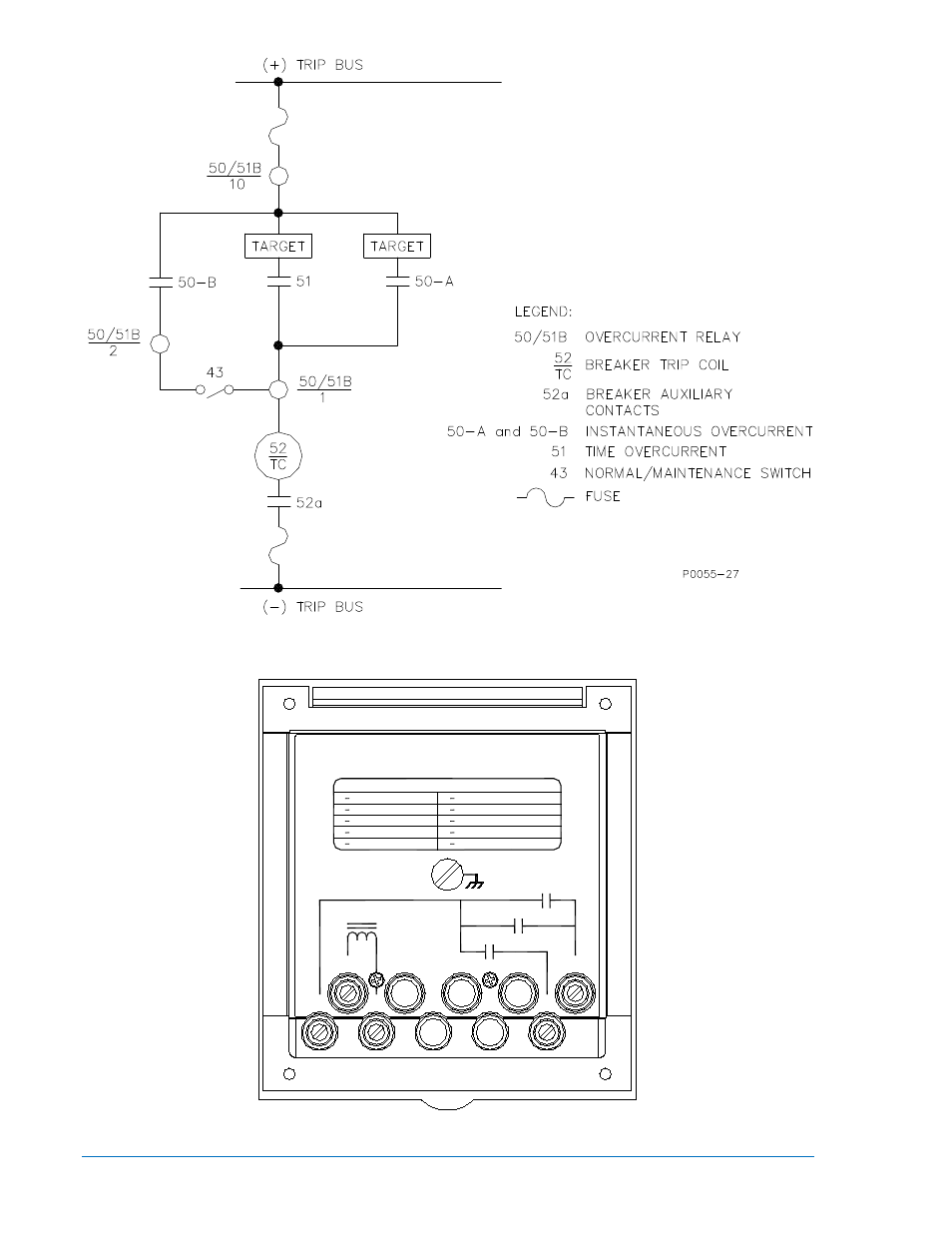

Figure 4-5. Typical DC Connections
Figure 4-6. Terminal Connections, Rear View
1
50-A
51
S SHORT INVERSE
LONG INVERSE L
DEFINITE TIME D
MODERATELY INVERSE M
INVERSE I C BS142 EXTREMELY INVERSE
B BS142 VERY INVERSE
F FIXED TIME
E EXTREMELY INVERSE
VERY INVERSE V
CURVE DEFINITIONS
2 4 6
3 7
10 8
9
OVERCURRENT
CT
50-B
GND
P0064-48
