4-2 BE1-50/51B-244 Installation 9252000793 Rev C

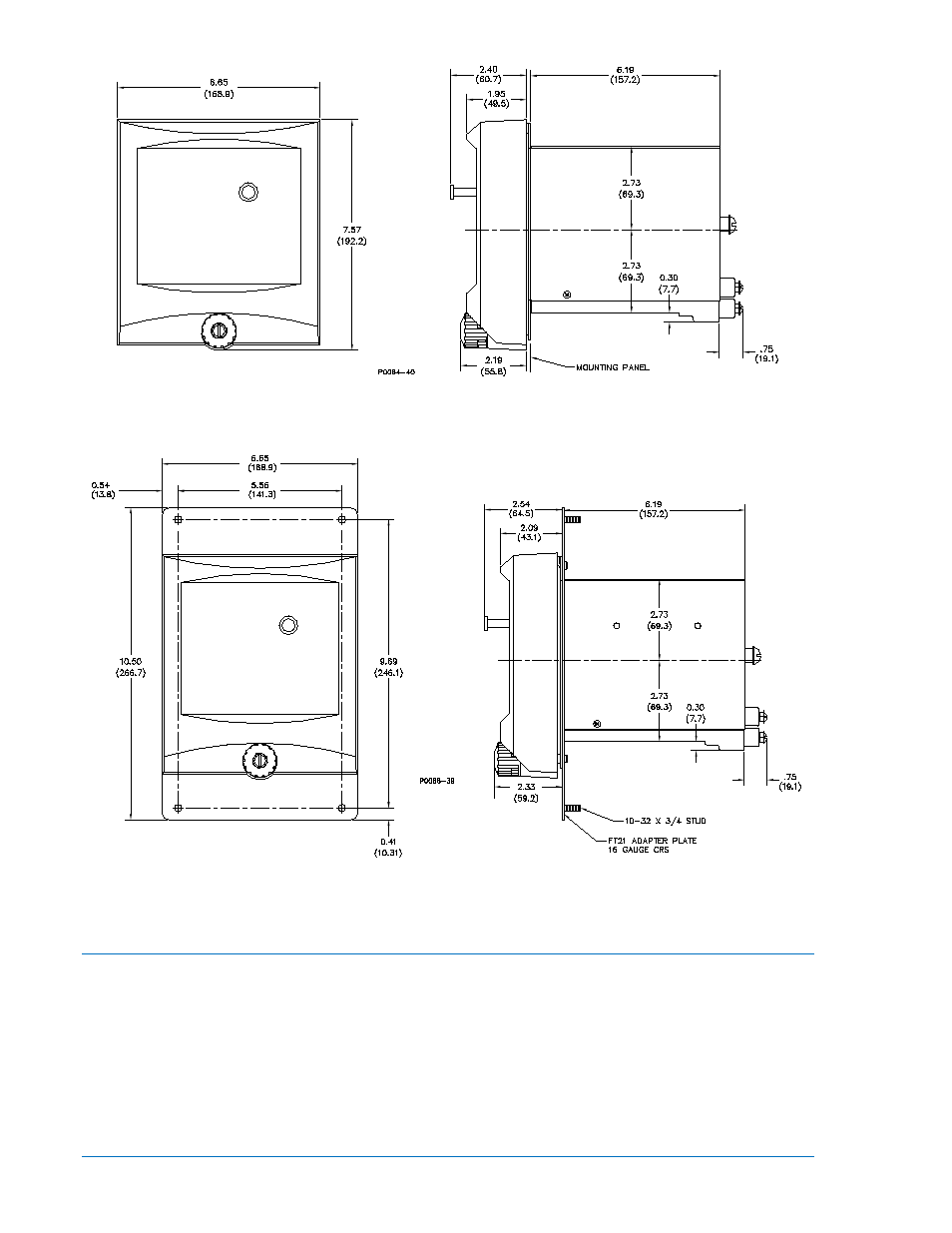

Figure 4-2. Outline Dimensions, FT11 Case
Figure 4-3. Outline Dimensions, FT21 Case
Factory Settings
Factory settings for the internal switches of SW3 and jumper settings are as follows:
• SW3-1 — OFF (60 hertz operation).
• SW3-2 — OFF (0.0 additional fixed delay for the instantaneous element).
• SW3-3 — OFF (Westinghouse CO type characteristic curves).
• SW3-4 — ON (Integrating reset characteristics).
• J1 pins 2-3 — 50-A minimum target operating current of 80 to 200 mA
• J2 pins 2-3 — 51 minimum target operating current of 80 to 200 mA
