5.5.4 Alarm Tags

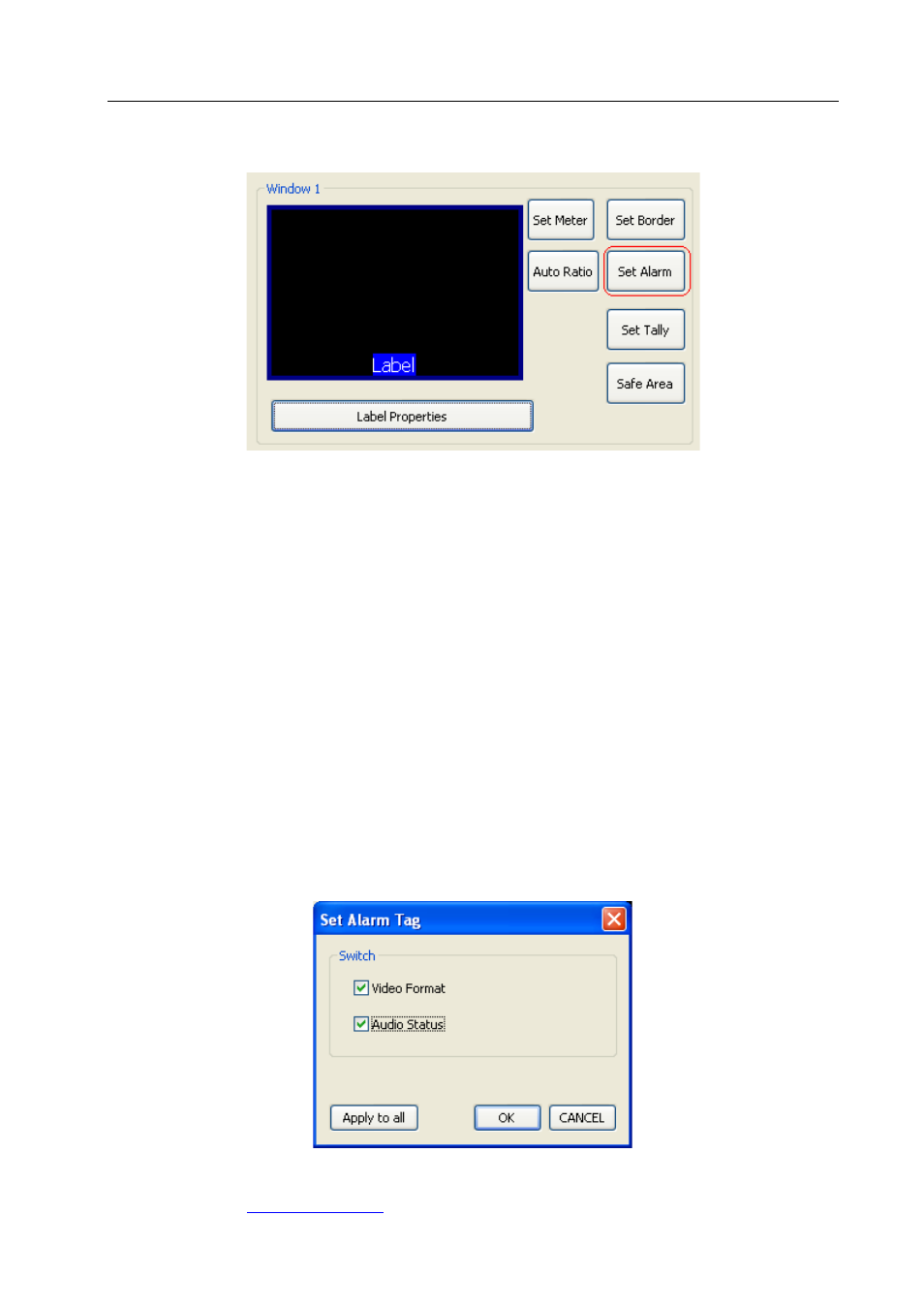

Figure 5.22: Set Alarm Tags
• Set Alarm Tags
o Video Format and Audio Status alarm tags can be turned on/off
o Video Alarm Tags shows the following
§
While video signal is present
• Displays video format, (NTSC/PAL, 525, 626, 720p, 1080i/p
50/60)
§
While video signal is lost
•
o Audio Alarm Tags shows the following
§
While audio signal is present
• No tag
§
While audio signal is lost
• “No Audio”
Figure 5.23: Turn Alarm tags on / off
