HDMI CLEAN SWITCH – MODEL: CLN-SW-6x1-H
7

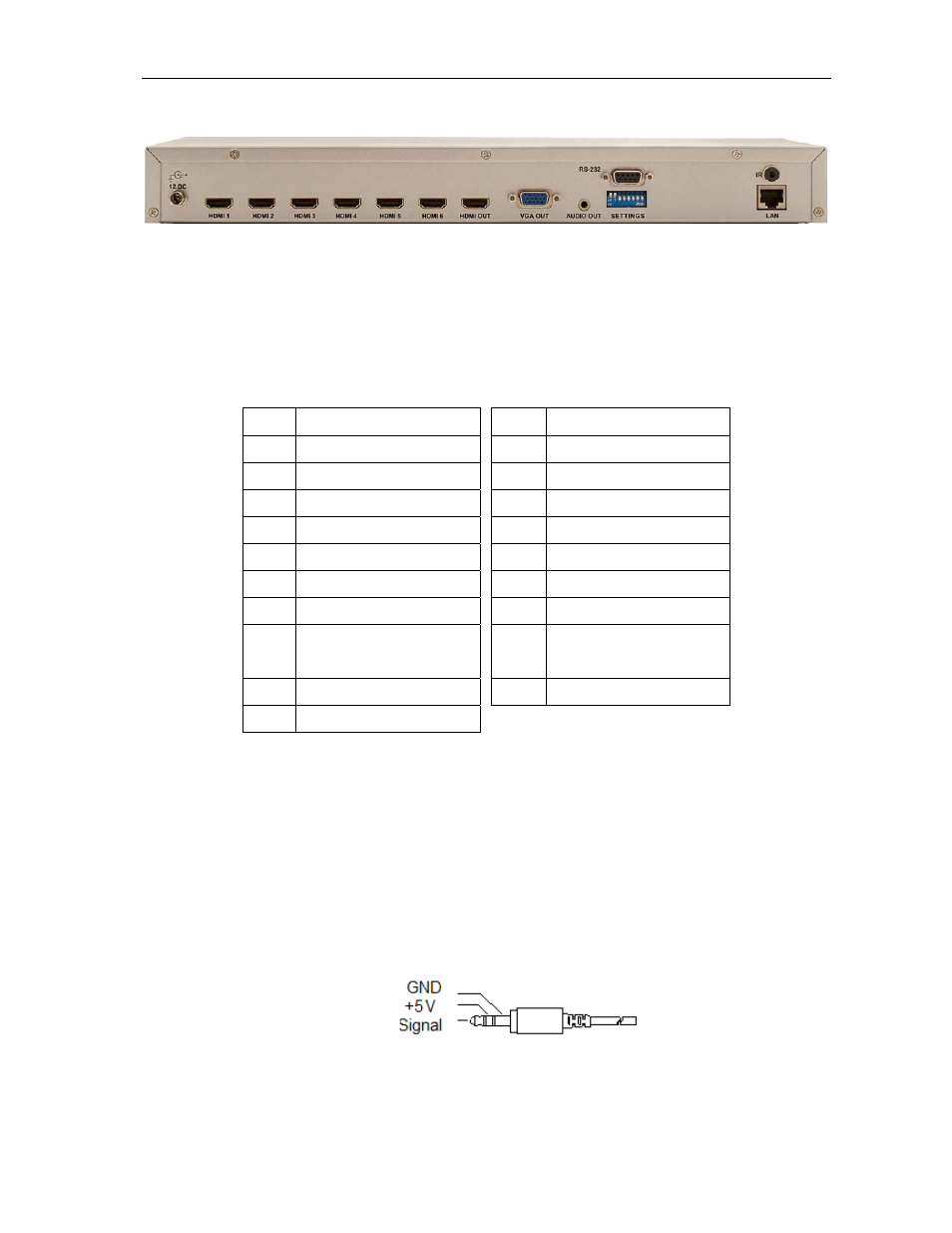

4.0.3: Rear Panel
Figure 4-2: CLN-SW-6x1-H Rear Panel
1. Power: 12V DC 3A
2. HDMI 1 ~ 6: 6 HDMI inputs
HDMI Type A Connector Pin Definition:
Pin # Signal Pin # Signal
1 TMDS Data2+ 11 TMDS Clock Shield
2 TMDS Data2 Shield 12 TMDS Clock-
3 TMDS Data2- 13 NC
4 TMDS Data1+ 14 NC
5 TMDS Data1 Shield 15 DDC-SCL
6 TMDS Data1- 16 DDC-SDA
7 TMDS Data0+ 17 DDC-Ground
8
TMDS Data0
Shield
18 +5V Power
9 TMDS Data0- 19 Hot Plug Detect
10 TMDS Clock+
3. HDMI out: HDMI output
4. VGA out: VGA copy of HDMI out
5. Audio out: Analog audio monitoring output. Follows video output
6. RS232
7. IR: Connection to the IR Blaster
8. DIP Switch:
