HDMI CLEAN SWITCH – MODEL: CLN-SW-6x1-H
APANTAC LLC ● 7470 SW Bridgeport Road, Portland, OR 97224 USA
PHONE +1 503 986 3000 ● FAX +1 503 389 7921 ●
●
WWW.APANTAC.COM
9
9. HDMI 1 ~ 6: HDMI/DVI monitors or projectors
HDMI Type A Connector Pin Definition:
Pin #
Signal
Pin #
Signal
1
TMDS Data2+
11
TMDS Clock Shield
2
TMDS Data2 Shield
12
TMDS Clock-
3 TMDS
Data2- 13
NC
4 TMDS
Data1+ 14
NC
5
TMDS Data1 Shield
15
DDC-SCL
6 TMDS
Data1- 16 DDC-SDA
7 TMDS
Data0+ 17 DDC-Ground
8
TMDS Data0
Shield
18 +5V
Power
9 TMDS
Data0- 19
Hot
Plug
Detect
10 TMDS
Clock+
5.0
Remote
Communications
5.0.1 Switch Control Connection
Use the supplied RS232 cable to connect the computer’s serial port (COM1
or COM2) to the RS232 port of the CLN-SW-6x1-H to enable remote control
via serial interface.

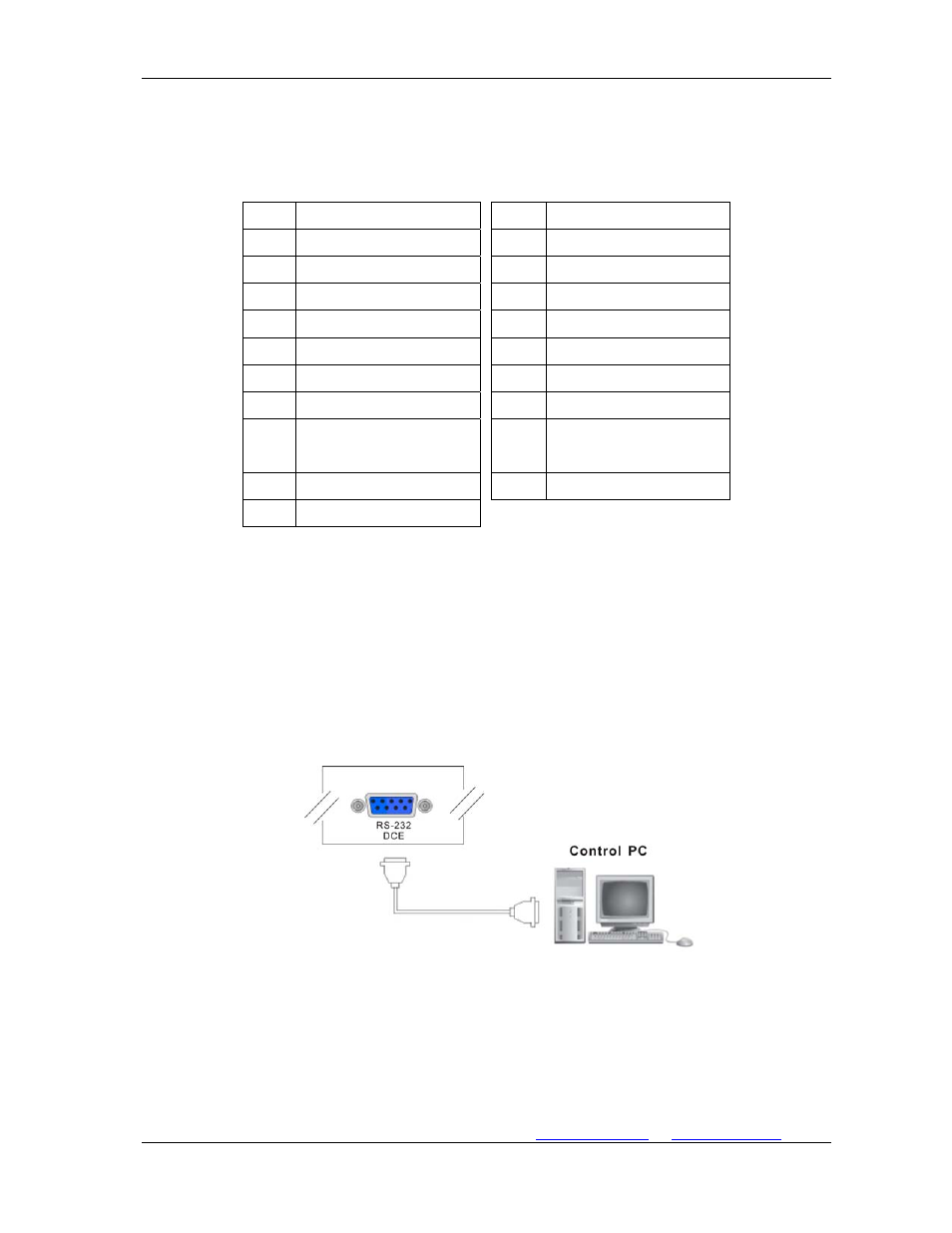

Figure 5-1 (a): RS232 and Control PC connection
CLN-SW-6x1-H also supports a LAN port that allows you to control the
switch through a browser.
