HDMI CLEAN SWITCH – MODEL: CLN-SW-6x1-H
11
RS232 Pin out
Pin No.
Leg
Description
1 N/u Null 2 Tx
Send
3 Rx
Receive
4 N/u Null 5 Gnd
Ground
6 N/u Null 7 N/u Null 8 N/u Null 9 N/u Null

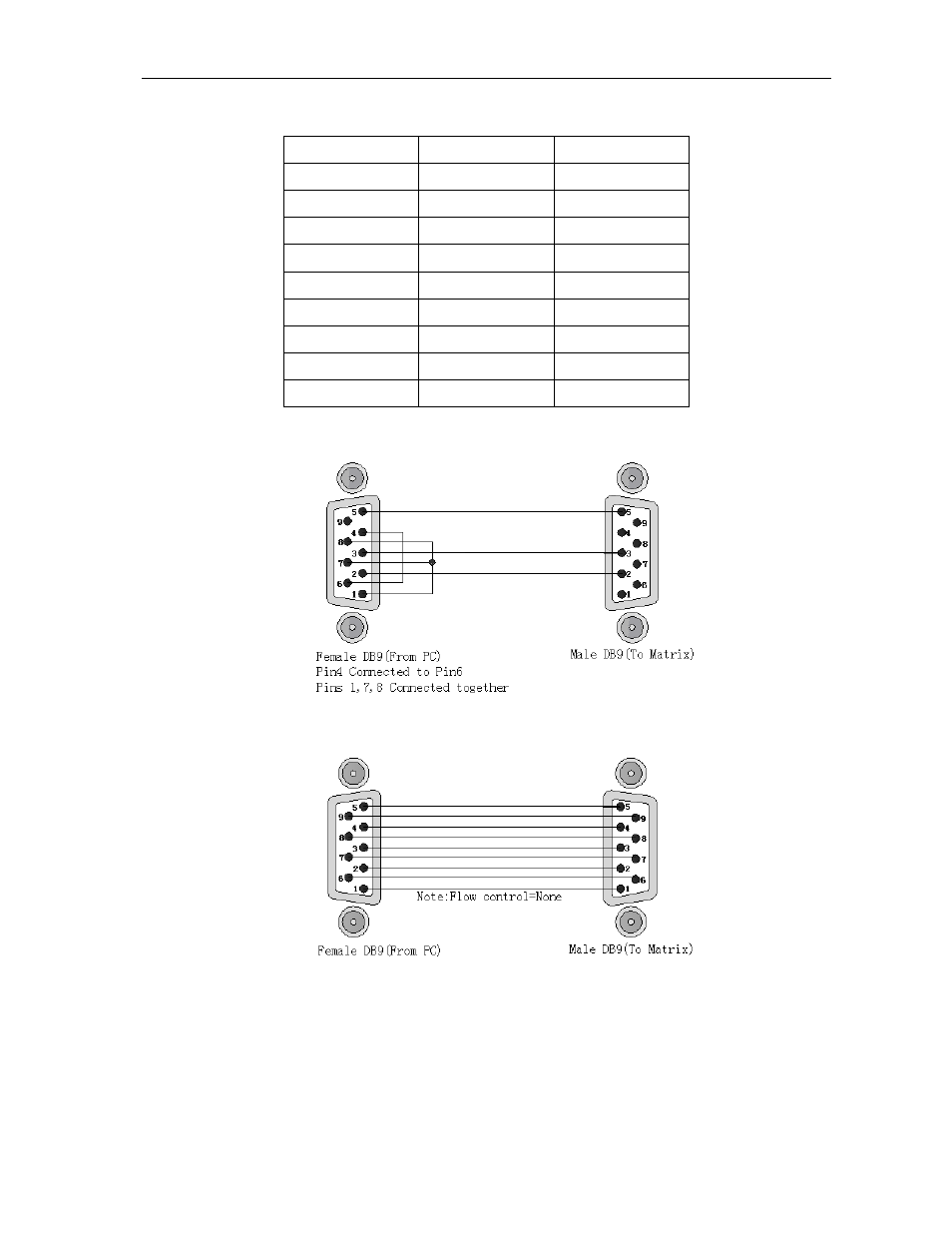

Figure 5-3
Figure 5-3 (a)
