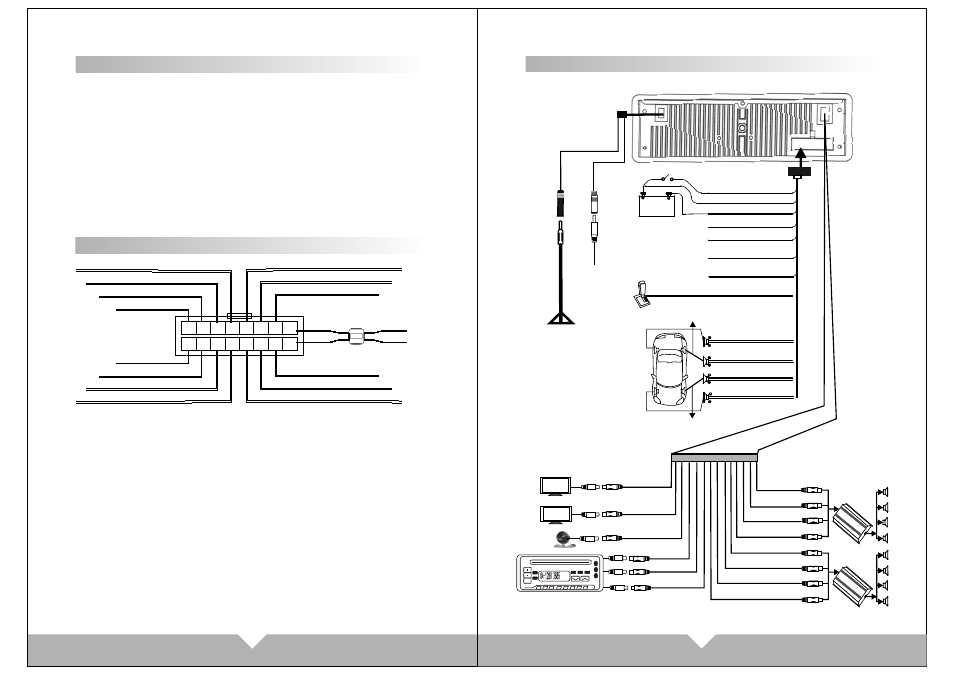

Unit Rear Side Connection
12
R
A
D
I
O
A
N
T
R
A
D
I
O
N
E
N
N
A
A
A
T
E
R
A
T
D
P
ACC
(RED)
(YELLOW)BATT(Memory backup)
BATTERY
BATTERY
GND
(BLACK)
(
BLUE/WHITE
) ANT-CON
An te nn a con tr ol c ab le
REAR RIGHT
REAR LEFT
FRONT RIGHT
FRONT LEFT
(
GRAY
)
(
GRAY
/BLACK)
(GREEN)
(GREEN/BLACK)
(PURPLE)
(PURPLE/BLACK)
(WHITE/BLACK)
(WHITE)
BRAKE-CON
(PINK)
REVERSE-CON
(ORANGE)
M an ua l br a ke s wi tc h
MUTE-CON
(BROWN)
AMP-CON
(BLUE)
E xt er na l po w er a mp li fi er c o nt ro l ca ble
Re ve rs e mir ro r co ntr ol c ab le ,c on n e
ct ed t o t he c ar ba ck in g lam p.
YELLOW/VIDEO OUT1
Display
YELLOW/VIDEO OUT2
Display
YELLOW/
BACK -VIDEO- IN
Camera
WHITE/RL OUT
LINE-OUT-R
LINE-OUT-L
SUBWOOFER
SUBWOOFER
WHITE/FL OUT
RED/RR OUT
RED/FR OUT
YELLOW/VIDEO IN
WHITE/AUTIO LIN
RED/AUTIO RIN
B
L
E
O
T
I
N
U
T
O
H
M
C
I
8
7
6
5
4
3
2
9 10 11 12 13 14 15 16
PURPLE/RR+
GREEN/RL+
GREEN(BLACK)/RL-
BROWN/MUTE-CON
GREY/FR+
GREY(BLACK)/FR-
WHITE/FL+
WHITE(BLACK)/FL-
ORANGE/REVERSE-CON
RED/ACC
BLACK/GND
PURPLE(BLACK)/RR-
BLUE(WHITE)/ANT-CON
PINK/BRAKE-CON
BLUE/AMP-CON
1
FUSE
Y EL LO W/ BAT T( Me mor y b ack up )
BLUE/AMP-CON
Wire connection
User instroduction
1.Please connect the signal cable with power cable according to “Unit rear side
connection” to connect to power and signal.
2.After connect to power, press the power button, then the picture will show the
RADIO mode.
3.When display DVD or VCD disc, the unit is automatically identify the video
system PAL and NTSC.
4.Can through the button on panel to adjust the function. And can use the remote
control or touch screen to adjust the function.
5.FM mode will be factory default when without any signal input. If put the disc or
USB/SD, the picture will auto read the file and enter to play picture.
1. (BLACK)GND: connect to ground.
2. (BLUE/WHITE) ANT-CON: Antenna amplifier output control
3. (BROWN) MUTE-CON: Mute control cable
4. (ORANGE)REVERSE-CON: Car reversing cable
5. (PURPLE) RR+: Rear right audio output (positive pole)
6.(GREY) FR+: Front right audio output (positive pole)
7. (GREEN ) RL+: Rear left audio output (positive pole)
8.(WHITE ) FL+: Front left audio output (positive pole)
9.(WHITE/BLACK) FL-: Front left audio output (cathode)
10.(GREEN/BLACK) RL-: Rear left audio output (cathode)
11.(GREY/BLACK) FR-: Front right audio output (cathode)
12.(PURPLE/BLACK) RR-: Rear right audio output (cathode)
13. (PINK) BRAKE-CON: Hand brake connection cable
14. (BLUE) AMP-CON: Amplifier output control
15. (RED) ACC: Connect to battery positive pole
16. (YELLOW) BATT(Memory backup): Power cable
(positive pole)
(Cathode)
