Coaxdata Gigabit with Ethernet over Optical Fiber 1000Base-X
EN
www.televes.es
Using a modem ref.769202 (SFP)
ref.769202 incorporates a SFP module that allows connection to a
multimode fiber network compliant with 1000BASE-X Gigabit
standard. SFP module enables CoaxData connect to provider
optical fiber networks.

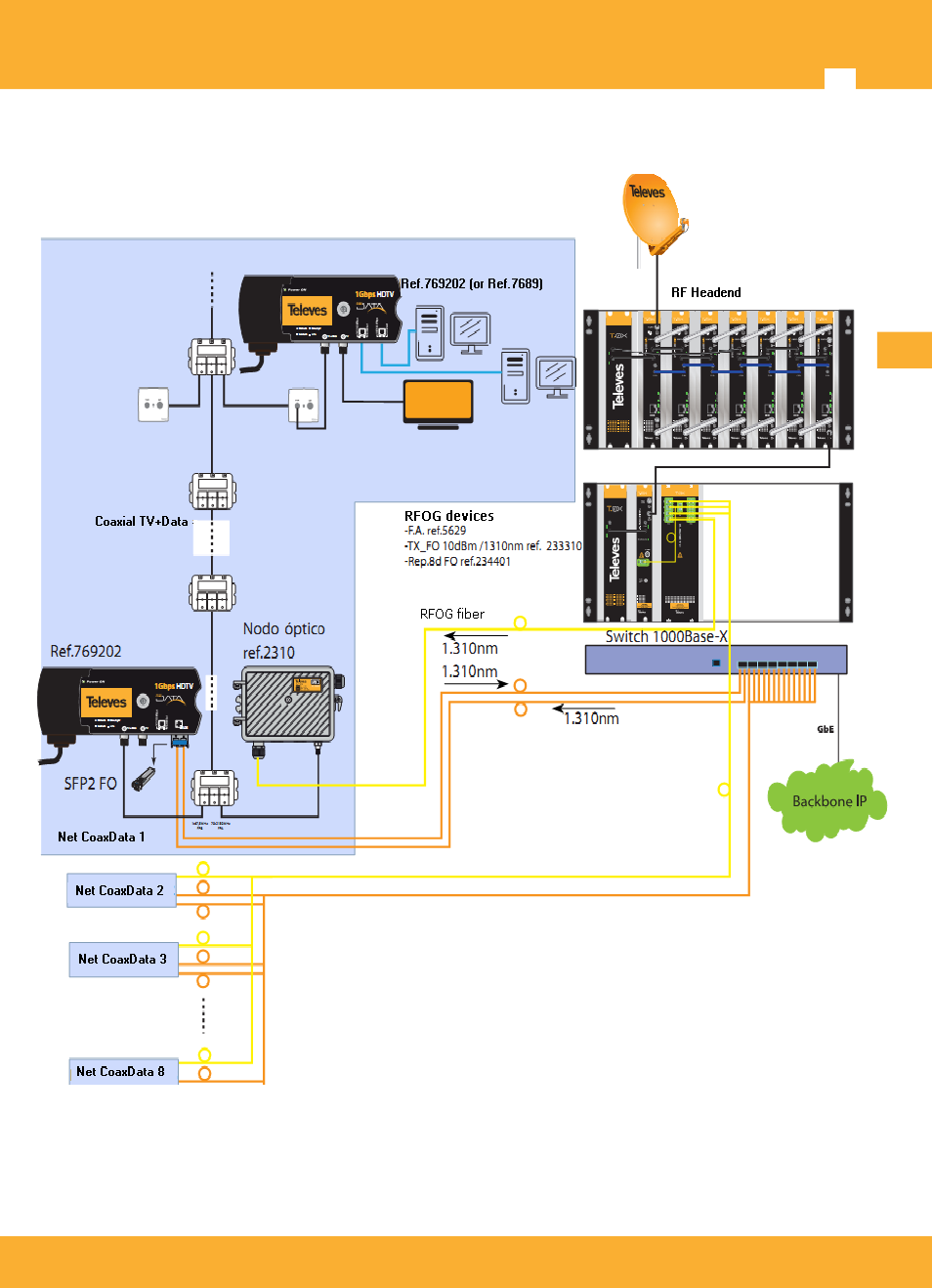

Figure shows an case where ISP operator provides high speed
1000BASE-X fiber network with 8 different networks, where each
conduit is formed by three fibers, one for TV (RFOG) and two for
data (for bidirectional transmission).
