HomeNetworking Installation of CoaxData 1Gps-HDTV
CoaxData HDTV 1Gbps adapter is configured to create a HomeNetworking plug-and-play network.
This mode creates a LAN and enabling all devices to communicate with each other (peer-to-peer).
After unpacking the product (1), quick install consists
of a medium selection by which to create the network.
Only can be well Coaxial (3) or by a hybrid output (2), ie
can transmit on both Coaxial and electrical network,
enabling communication between modems through
coaxial outlets or power sockets of house.
Connect modems to devices demmanding internet access
such as set-top boxes, printers and PCs, using an
Ethernet cable.
In a typical installation of Internet access, one modem is
connected to the Internet Router Operator (4) and other
modems to get internet access (5).
 CoaxManager ™ modes (Only Coaxial / Hybrid),
must correspond with medium switch selection on
the front of device

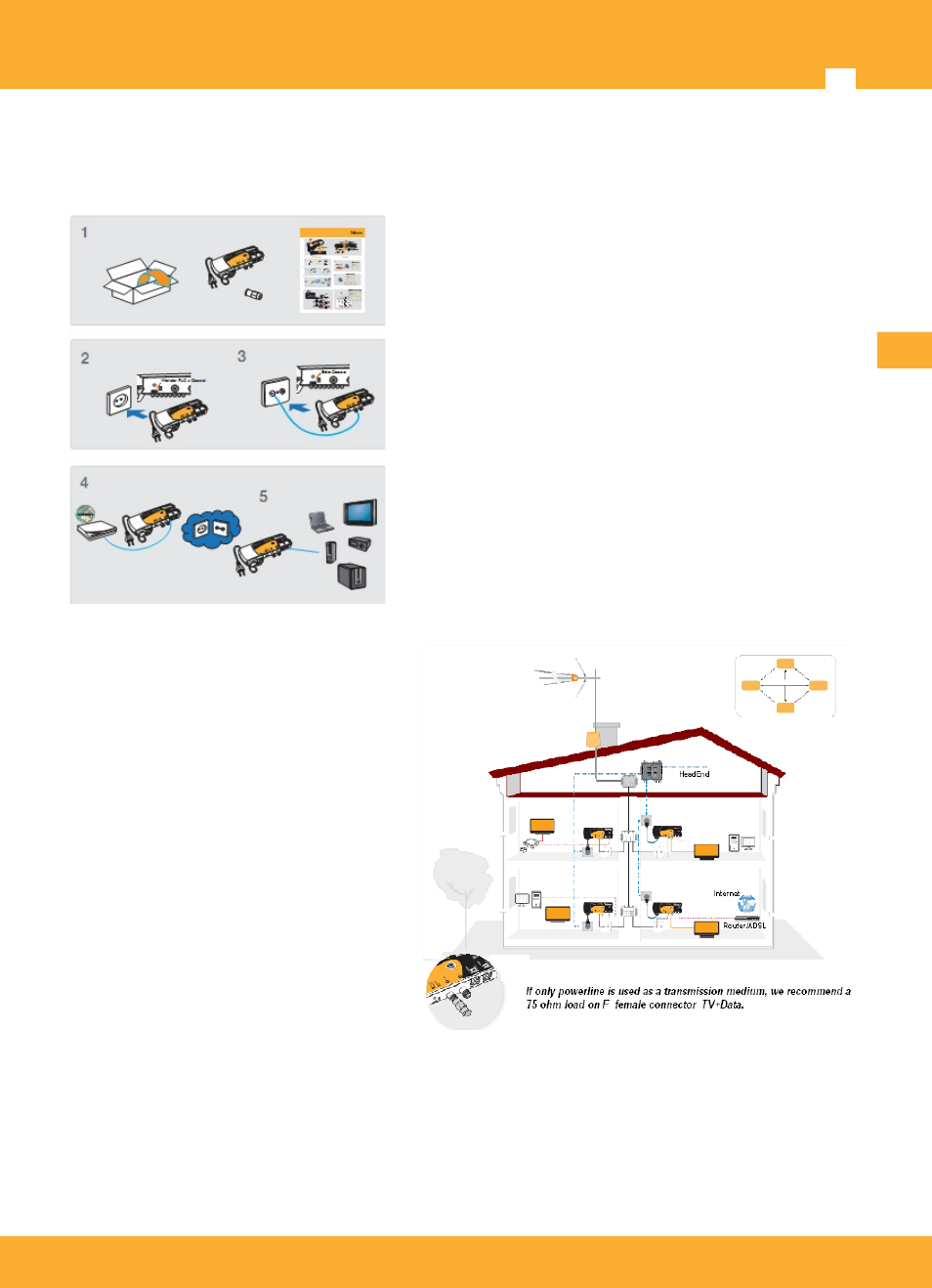

Figure shows Plug&Play HomeNetworking
installation, where 1Gbps CoaxData HDTV
modems are set on hybrid mode, enabling
intercommunication between all modems
either coaxial or by powerline. Thus, it
becomes possible to extend the network to
the dwelling places where there is a Coaxial
outlet or plug socket.
