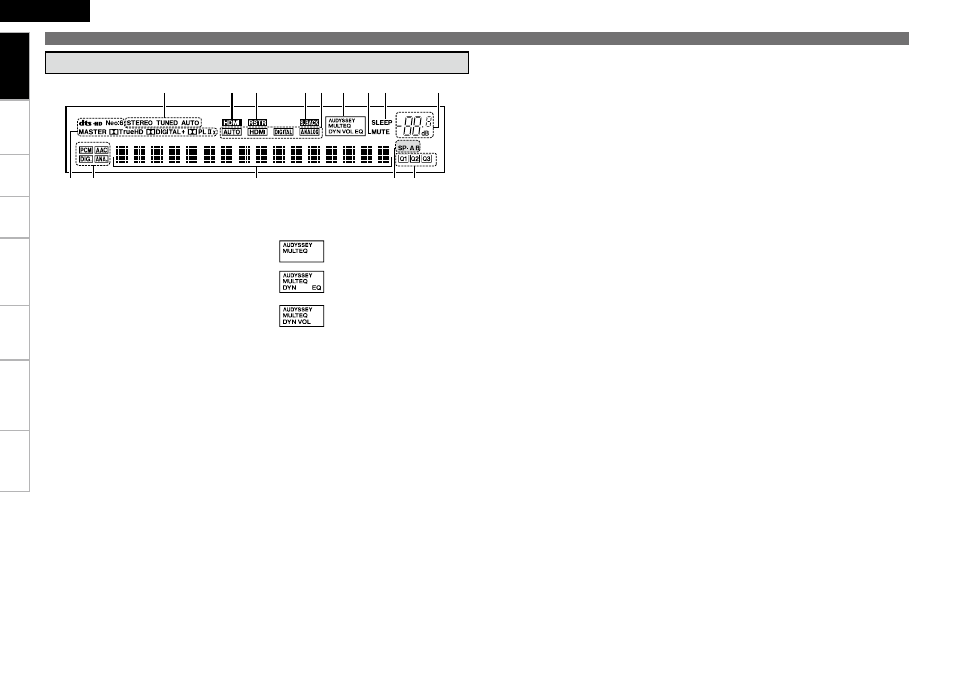

Part Names and Functions
u y i o Q0 Q1 Q2 Q3 Q4
w q e t r
q Decoder indicators
The indicator for the currently operating decoder
lights.
w Input audio signal indicators
e Information display
The input source name, surround mode, setting
values and other information are displayed
here.
r Front speaker indicator
These light according to the settings of the
front A and B speakers (vpage 37).
t QUICK SELECT indicators
These light when the Quick Select function is
set (vpage 45).
y Master volume indicator
When performing setting operations, displays
the menu number
.
u SLEEP TIMER indicator
Lights when the sleep timer is operating
(vpage 44).
i MUTE indicator
Lights when the muting mode is set (vpage
37).
o AUDYSSEY indicator
These light as shown below in the different
modes (vpage 41).
: During “MultEQ” operation
: During “MultEQ” , “Dynamic EQ”
operation
: During “MultEQ” , “Dynamic EQ”,
“Dynamic Volume” operation
b When speaker settings are changed after the
Audyssey Auto Setup procedure, either the
indicators’ frame turns off or all the indicators
turn off.
Q0 Input mode indicators
Q1 S.BACK indicator
Lights when surround back audio signals are
being output from the SURR. BACK / FRONT
HEIGHT PRE OUT connectors (vpage 25).
Q2 RESTORER indicator
Lights during “RESTORER” operation (vpage
43).
Q3 HDMI indicator
Lights when HDMI input signals are detected
(vpage 13).
Q4 Tuner reception mode indicators
This lights according to the reception conditions
when the input source is set to “TUNER”.
• AUTO
This lights when in the auto tuning mode.
• STEREO
In the FM mode, this lights when receiving
analog stereo broadcasts.
• TUNED
This lights when the broadcast is properly
tuned in.
