14

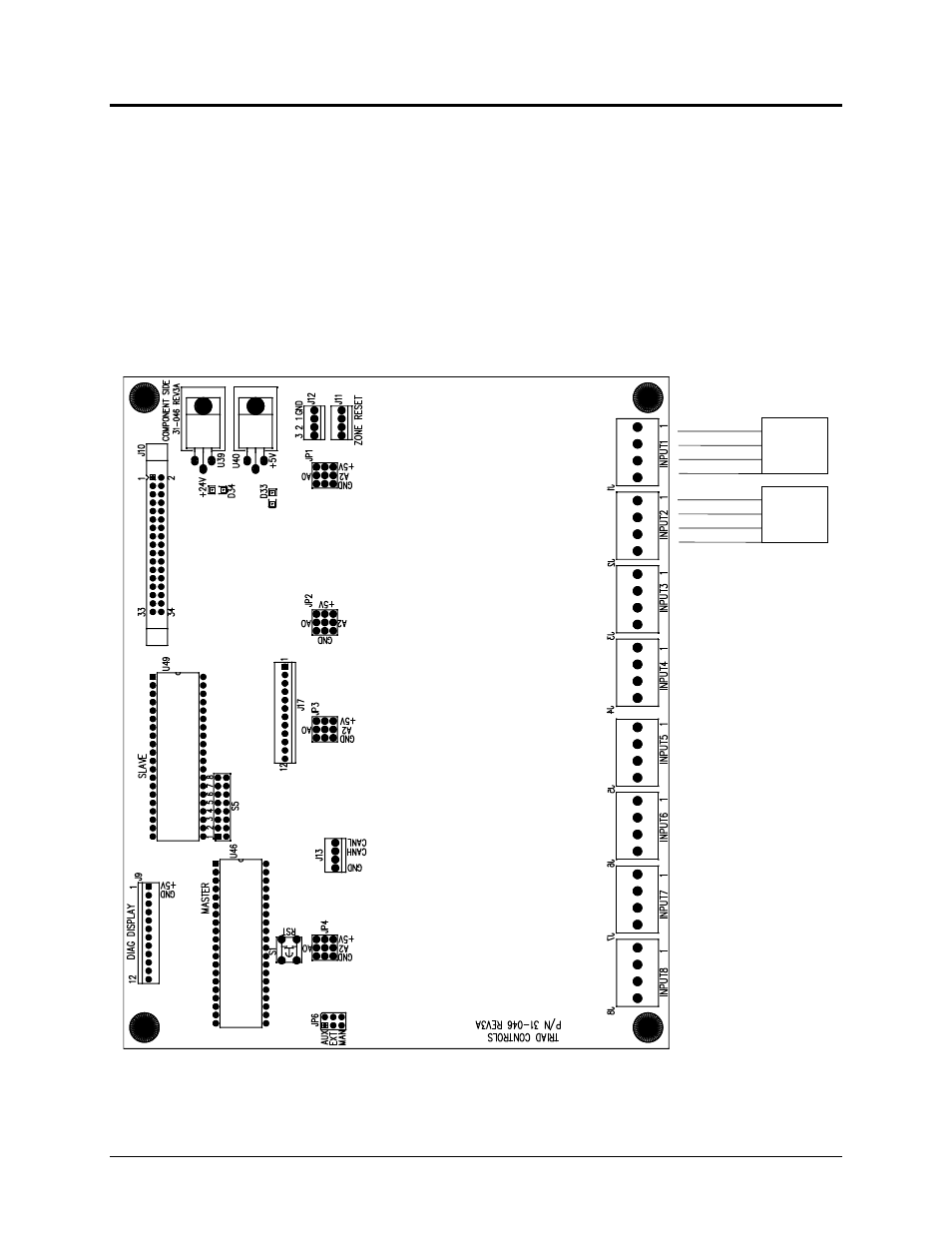

WIRING DIAGRAM FOR MAT(S)
Metal Box Controller
This example is for two mats. Each additional mat gets its own input (up to 8 on an input board). Follow
the color code from each mat back to the STTS control box.
NOTE: Adjust the S5 jumper block when adding / deleting mats and zones.
NOTE: The manual/automatic reset feature sets all mats. You cannot select some mats for manual and
some for automatic.
NOTE: Canadian market wiring is black, red, red, black with 18-guage wiring size.
Mat #1
blue
white
black
brown
Mat #2
blue
white
black
brown
