SLT Series

Accessories

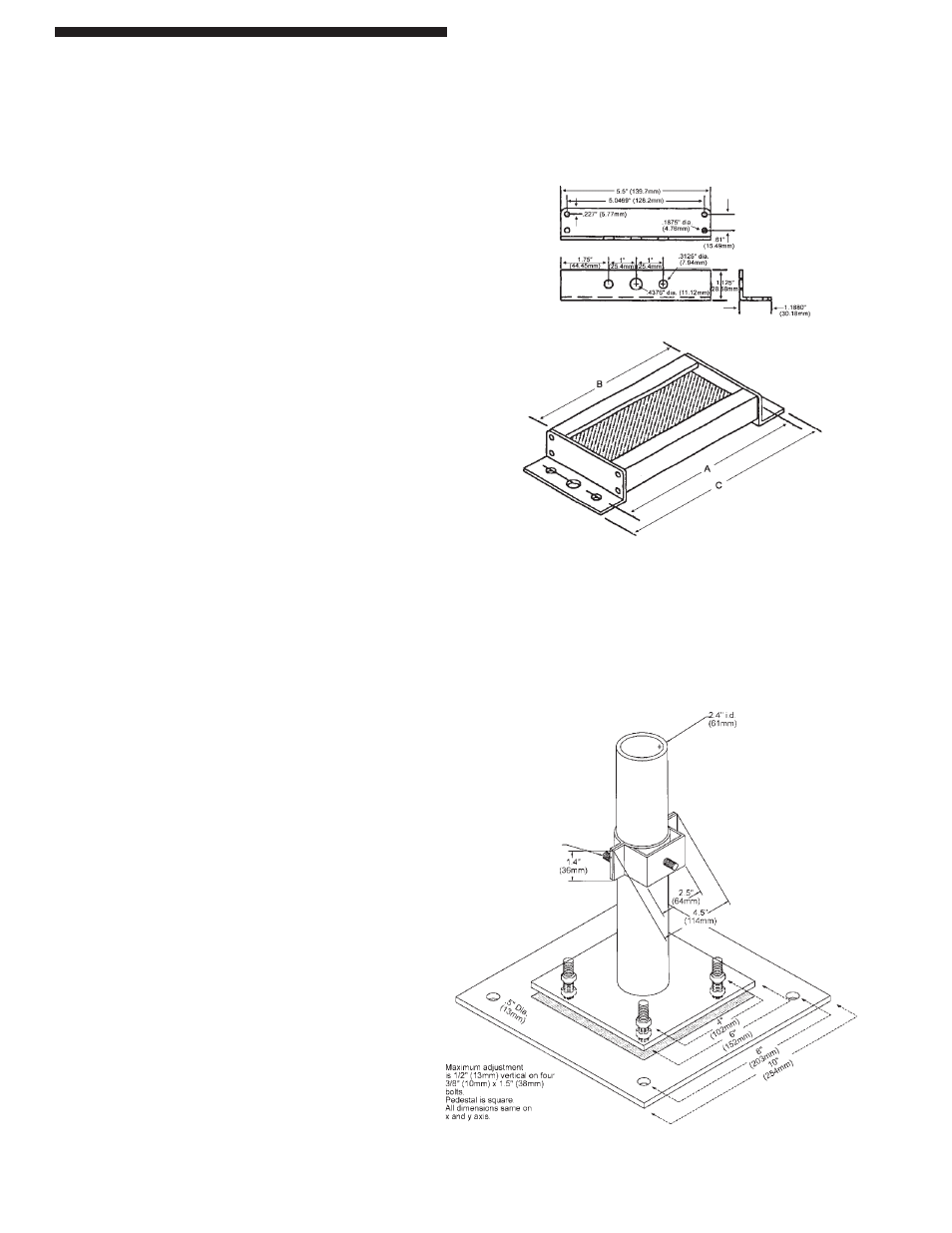

Cor

Cornering Mir

nering Mir

nering Mirrrrrror

orsssss

Through the use of cornering mirrors, multiple sides or

work envelopes can be guarded which enhance safety

and reduce down-time related to mechanical and

electrical interlock systems.
Include a

5% reflectivity loss per mirror

when

calculating total scanning distance of light curtain.
NOTE: Mirrors are surface coated. Wipe surface using

only a damp, clean, soft 100% cotton cloth. To replace:

remove the end bracket, slide out the mirror with the

gasket.

Dim A

Dim B

Dim C

Model

(Hole to Hole)

(Mirror)

(Total)

TRM12 19.45" (494mm)

18.25" (464mm)

20.50" (521mm)

TRM18 25.45" (646mm)

24.25" (616mm)

26.50" (673mm)

TRM24 31.45" (799mm)

30.25" (768mm)

32.50" (825mm)

TRM30 37.45" (951mm)

36.25" (921mm)

38.50" (978mm)

TRM36 43.45" (1104mm) 42.25" (1073mm) 44.50" (1130mm)

TRM42 49.45" (1251mm) 48.25" (1226mm) 50.50" (1282mm)

TRM48 55.45" (1408mm) 54.25" (1378mm) 56.50" (1435mm)

TRM60 67.45" (1713mm) 66.25" (1683mm) 68.50" (1739mm)

TRM72 79.45" (2018mm) 78.25" (1988mm) 80.50" (2045mm)

Pedestal Mounts (Model 8000)

edestal Mounts (Model 8000)

The heavy duty, all welded steel pedestal floor mounts

can be used for mounting either the SLT Series system

or cornering mirrors. Sliding mounts on the pedestal

are of universal design and are supplied standard.

Unique floating base on pedestal is designed to

compensate for uneven floors.

Pedestals must be bolted to the floor, they must not
be movable!

1) Sliding Mounts supplied
2) Standard height - 72" - Model 8000

Optional height - 96" - Model 8096

3) Painted OSHA yellow
4) Pedestal - 12 gauge steel

Base Plate - 1/4" steel plate
