Paxton Superchargers 5.2 Dodge Ram - Manual (Page 9)

P/N: 4809625
©2003 Paxton Automotive
All Rights Reserved, Intl. Copr. Secured
25NOV03 v2.0 97-01 5.2/5.9 Dodge(4809625v2.0)
3-1

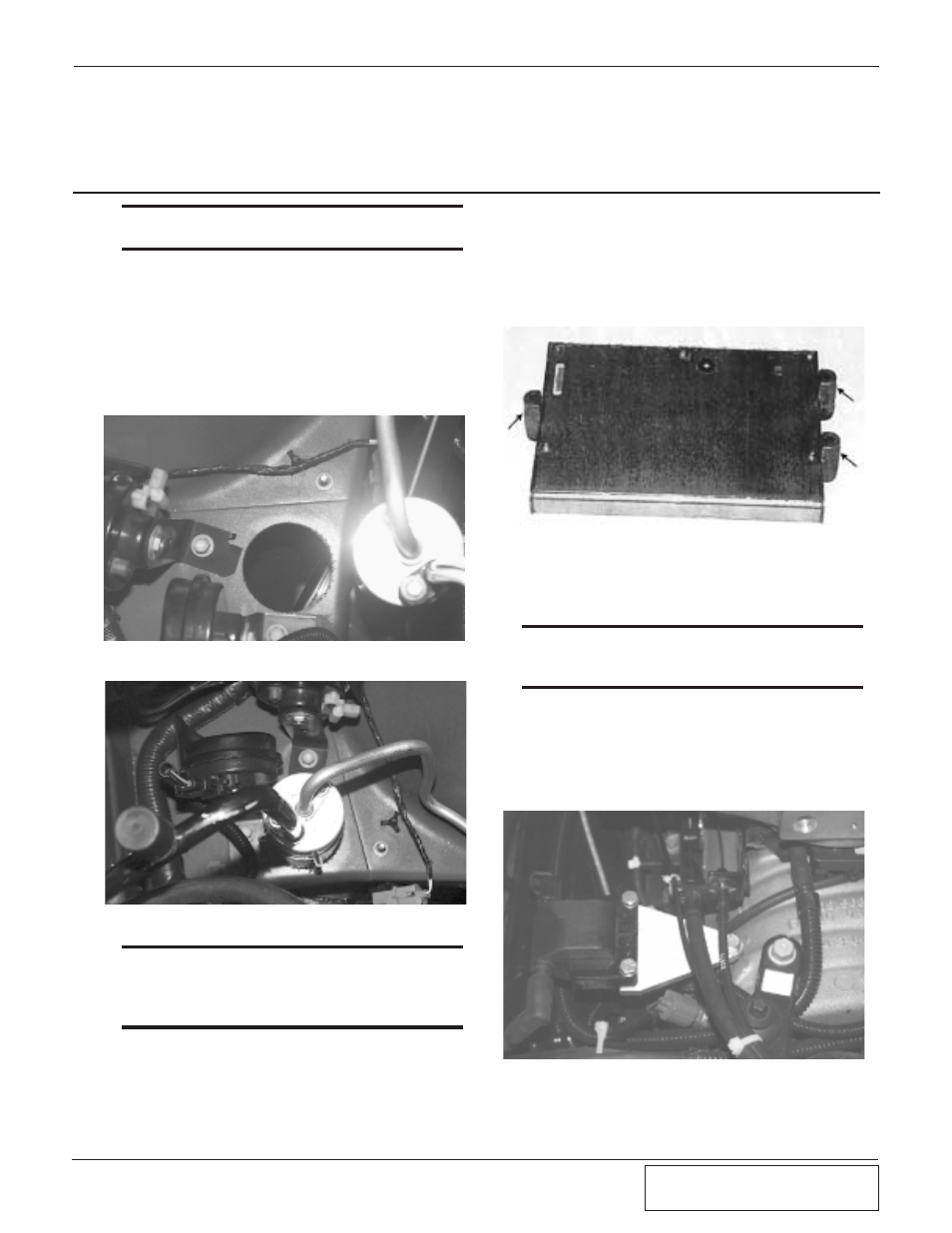

Fig. 3-a
Fig. 3-b
Fig. 3-c
Fig. 3-d
Section 3
RELOCATION AND MODIFICATION
3-1 A/C DRIER RECEIVER RELOCATION
A. Use a 2 1/2" hole saw and cut a hole
between the horns. (See Fig. 3-a.)
B. Remove the receiver/drier from the stock
location and re-install into the new hole.
You will need to bend the hard lines. (See
Fig. 3-b.)
C. Re-mount the computer to the factory
bracket and re-install.
*** NOTE ***
This modification will gain clearance for the intake
duct.
3-3 COIL RELOCATION
A. Mount the coil relocation bracket with the
two screws provided. Use the existing
mounting stud to secure the bracket to the
engine. (See Fig. 3-d.)
*** NOTE ***
On '99-'01 vehicles, this step does not apply.
B. Cut these three mounting tabs just above
the case retaining screws. (See Fig. 3-c.)
B. Use the supplied wire and connectors to
extend the factory harness to the relocated
coil.
*** NOTE ***
This will take time to get them bent correctly to clear
the supercharger. You may need to re-bend them after
installing the supercharger bracket.
3-2 COMPUTER MODIFICATION
A. The computer is located on the passenger
side fender well. You will need to remove
the plugs and the three small screws hold-
ing it to the factory bracket.
