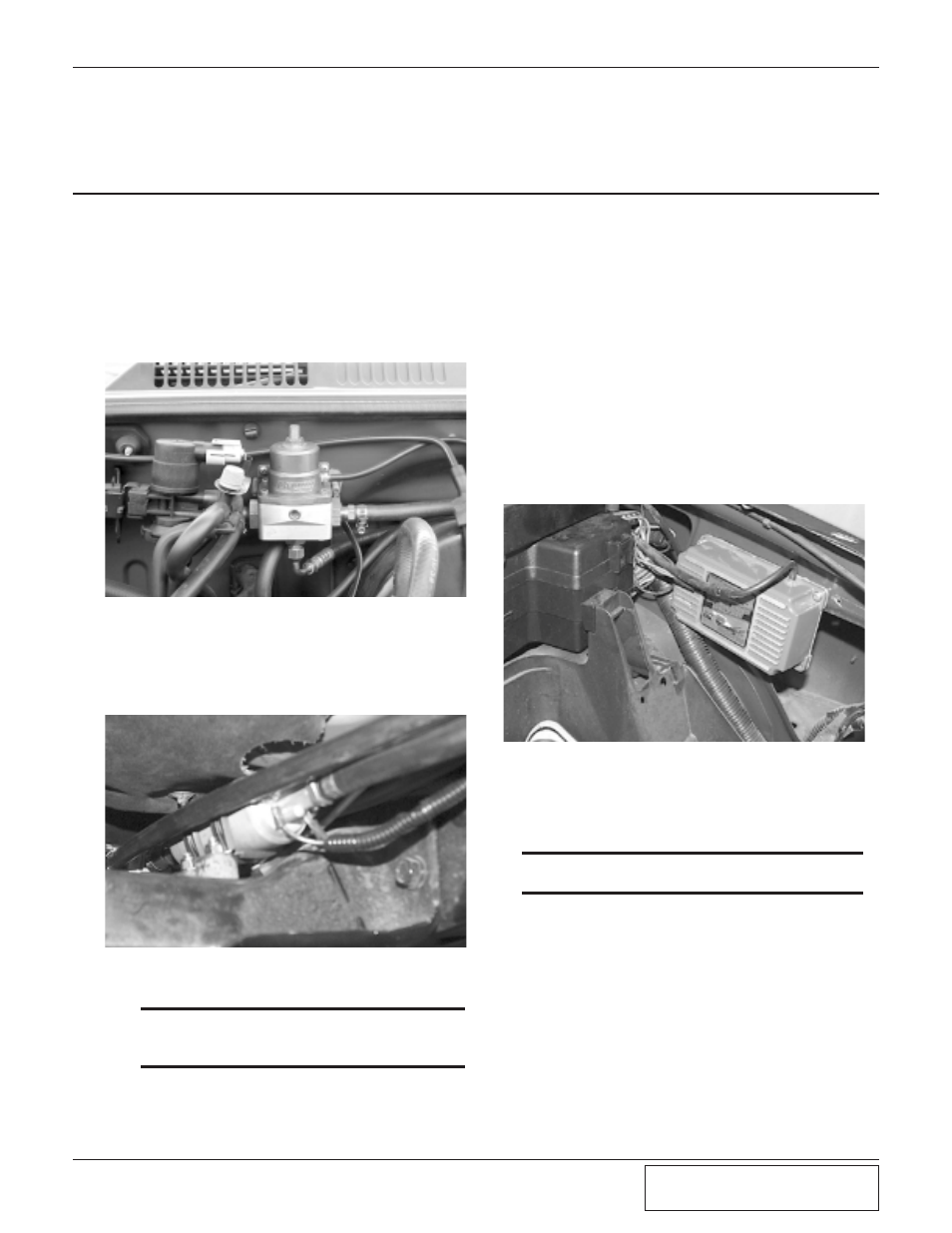

Fig. 5-a
Fig. 5-b
C. Drill holes and mount the fuel pump to the
driver’s side frame rail underneath the
vehicle using the supplied hardware. (See
Fig. 5-b.)
D. Route the fuel lines between the fuel
pump and fuel pressure regulator. Connect
the fuel line between the fuel pressure reg-
ulator and the fuel rail using the supplied
fitting. Connect the fuel line from the fuel
pump to the stock fuel line. Refer to
Appendix #1017735 for fuel pump assem-
bly procedure.
5-1 FUEL ENRICHMENT
A. Disconnect the stock fuel supply fitting at
the fuel rail.
B. Using the fuel pressure regulator as a tem-
plate, drill two .Ø145. holes and mount
the fuel pressure regulator to the firewall.
(See Fig. 5-a.)
Section 5
FUEL SYSTEM MODIFICATIONS
*** NOTE ***
Refer to Appendix #1017735 for fuel enrichment
assembly.
5-2 MSD TIMING RETARD BOX
INSTALLATION
A. Drill holes and Mount the MSD timing
retard to the the driver’s side inner fender
well at the front of vehicle. (See Fig. 5-c.)
Fig. 5-c
B Mount the boost retard switch where it can
easily be reached by the driver per the
instructions included with the MSD timing
retard box.
*** NOTE ***
This is also provided in the Appendix.
