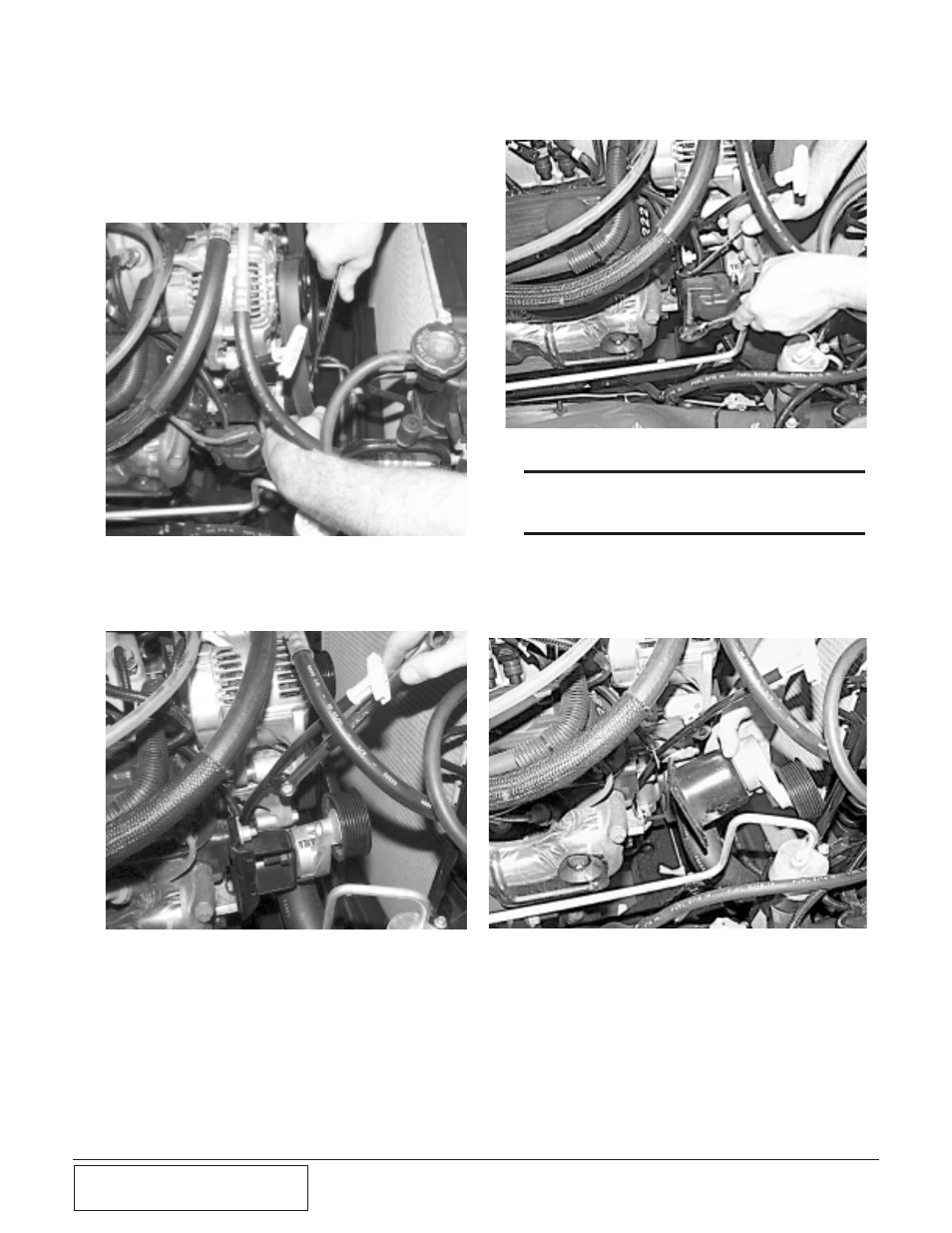

Fig. 2-h
Fig. 2-e
Fig. 2-f
Fig.. 2-g
B. Remove the bolt attaching the dipstick to
the alternator bracket. (See Fig. 2-f)
2-3 DISASSEMBLY OF ACCESSORY BELT,
COIL, AND BELT TENSIONER
A. Using a wrench on the accessory belt ten-
sioner, rotate the tensioner counter-clock-
wise and remove the accessory belt. (See
Fig. 2-e.)
*** NOTE ***
The coil bracket can be discarded, but the tensioner
and tensioner bracket will be re-used.
C. Remove the coil from the existing coil
bracket. (Coil will be relocated at a later
time.) Remove the two 10mm bolts and
nuts. Disconnect the plug from the coil.
(See Fig. 2-g.)
D. Remove the nuts and bolts(3) attaching the
tensioner bracket, coil bracket, stud and
nut from the front of the engine. (See
Fig. 2-h.)
