Section 5
AIR INLET & DISCHARGE INSTALLATION
5.1 AIR DISCHARGE INSTALLATION
A. Locate the fuel pressure test port directly
under the dipstick on the passenger side fuel
rail. (See Fig. 5.1-a.)
B. Remove the plastic cap and place a rag over
the port. Hold the rag with one hand and
depress the valve with a small screwdriver
to relieve fuel system pressure. Use caution
when prforming this step to avoid getting
fuel in your eyes. Remove the valve core
using a small screwdriver or valve core
removal tool
.
B. Attach the discharge tube so the injectors are
situated under the throttle linkage. (See Fig.
5.1-b.)
5.2 AIR INLET INSTALLATION
A. Attach the air filter housing using the sup-
plied sheet metal screws to the frame rail
next to the radiator. Install the air filter
assembly and attach with the screws sup-
plied. (See Fig. 5.2-a.)

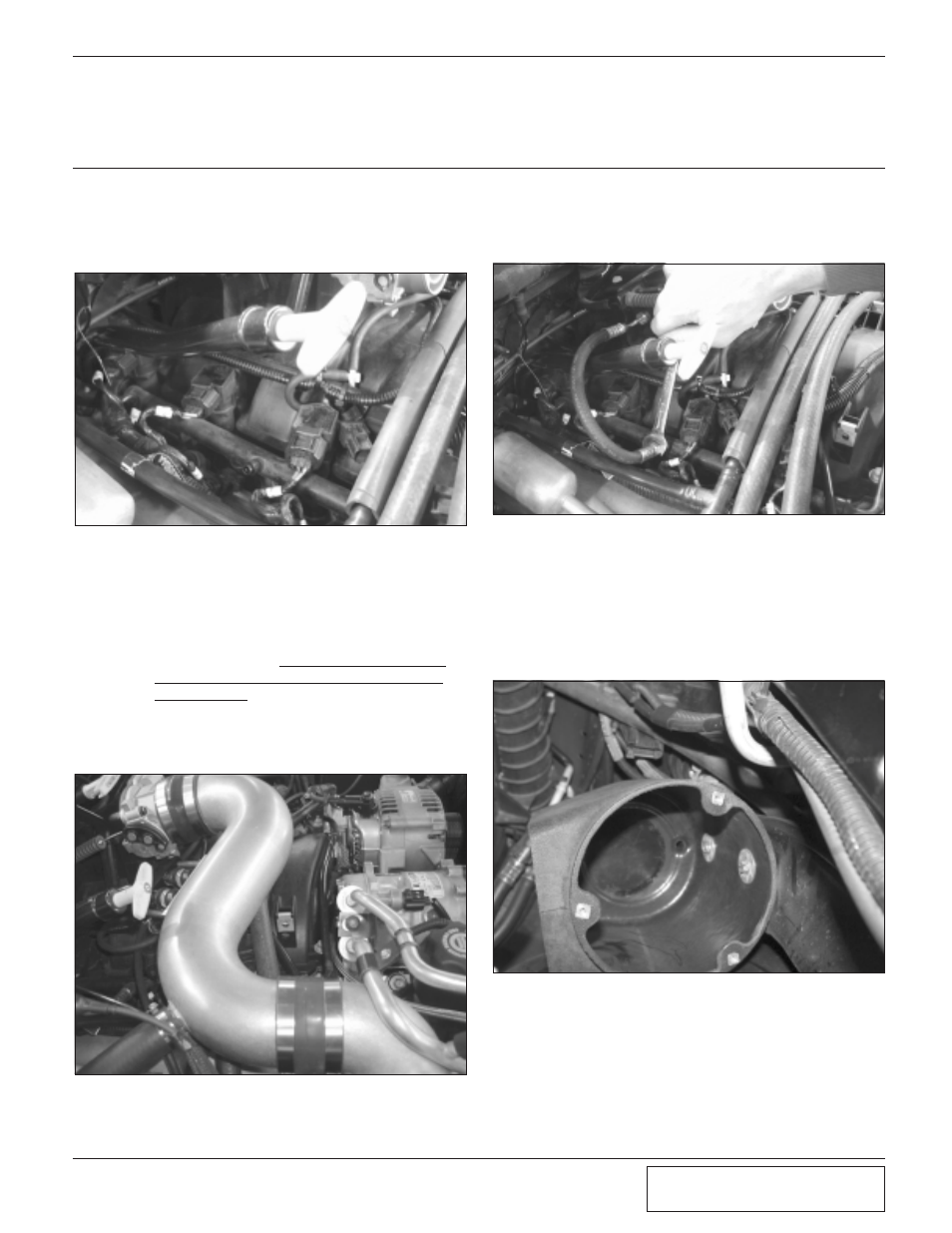

Fig. 5.1-a
Fig. 5.1-b
C. Attach the straight end of the fuel line to the
fuel rail and the 90° end to the injector
block. Tighten using a 9/16" wrench. (See
Fig. 5.1-c.)
Fig. 5.1-c
Fig. 5.2-a
