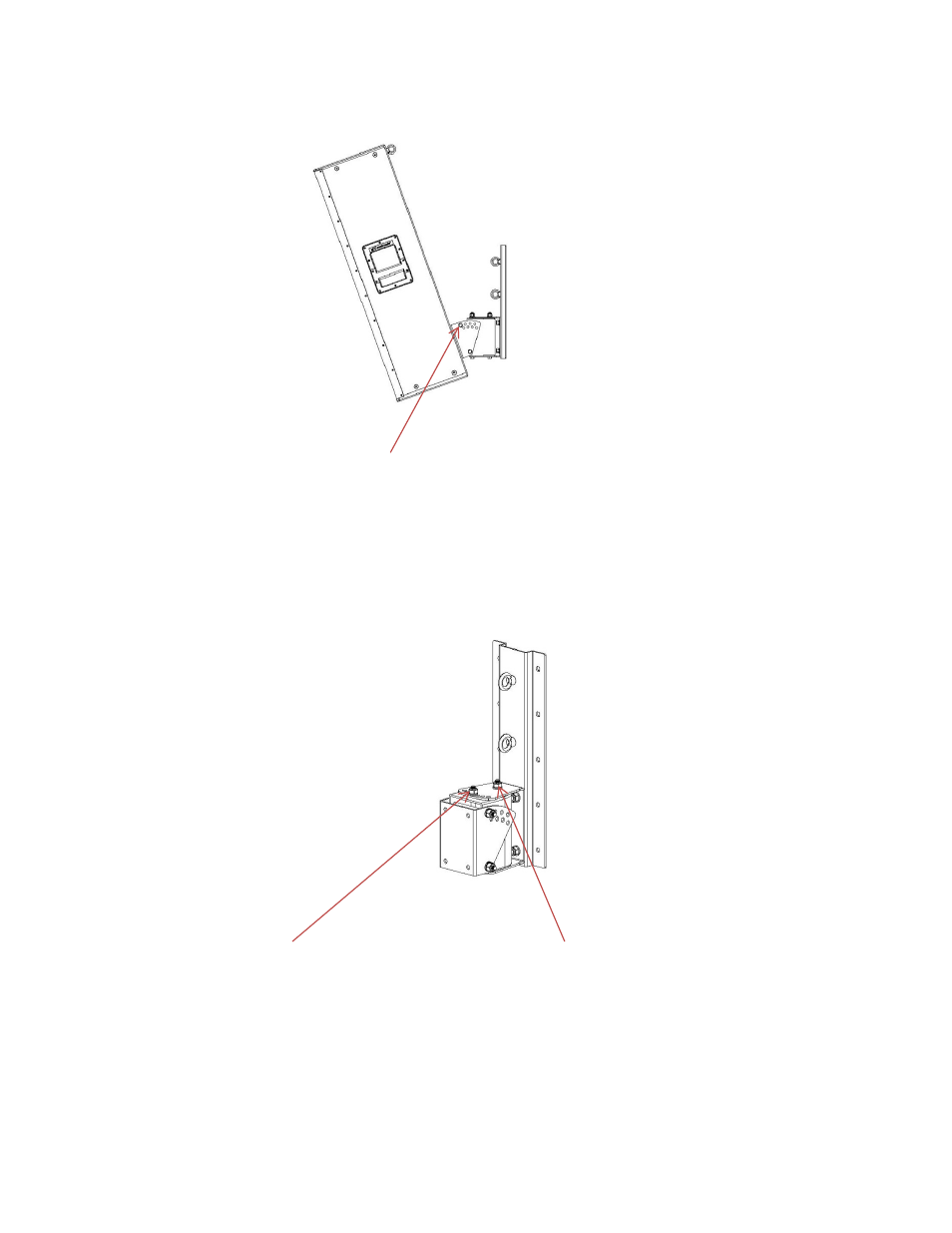

Figure 5a showing tilt aiming bolt
Now the pan aiming bolt can be adjusted if needed. NOTE: The pan pivot bolt should
NOT be removed.
The pan angle can be adjusted by removing the pan angle aiming bolt as shown below
in Figure 5b.
Pan angle aiming bolt Pan angle pivot bolt (DO NOT REMOVE)
Figure 5b
!Once both the tilt and pan angles are set, make sure that all aiming and pivot bolts for
both the pan and tilt axis are tight and secure!
