User's manual K&F SCENA 15
KLING & FREITAG GMBH © 2010 Revision 1.0 Page 16 of 18
11. Technical�Specifications
Design 2-way passive system, bass reflex tuning (equalisa-
tion via CD 44), switchable between 1- or 2-chan-
nel mode
Frequency�range�-10�dB 49 Hz - 20 kHz
Frequency�range�+/-�3�dB 65 Hz - 18 kHz
Coverage�angles�nominal 50° x 70° (hor. x vert., horizontal use)
Power�Handling 400 watts nominial 1)
800 watts program 2)
Max.�SPL�(1m) 134 dB SPL (1 channel mode)
136 dB SPL (2 channel mode)
Components 15" coaxial chassis with 1.4" horn tweeter
Impedance�(nominal) 8 Ω
Connectors 2 x Speakon 4-pol NLT-4MP (parallel)
Enclosure Frame-reinforced 15mm Multiplex enclosure with
35° monitor angle and highly resistable Polyurea
synthetic coating in black, integrated pole mount
flange, ergonomic handles on the sides for horizon-
tal and vertical transport, hidden connecting pan-
el, 4 flying points M8 on the sides, 7 non-abrasive
plastic sliding feet, ball proof steel grille with black
acoustic foam behind the grille.
Dimensions 640 x 355 x 568 mm
Weight 23,5 kg
Accessories K&F eyebolts M8 x 20
1) Pink noise 40 - 5000 Hz, 2 h; 2) as 1) but with 50% duty cycle
The K&F SystemRack is required for operation of the K&F SCENA 15.

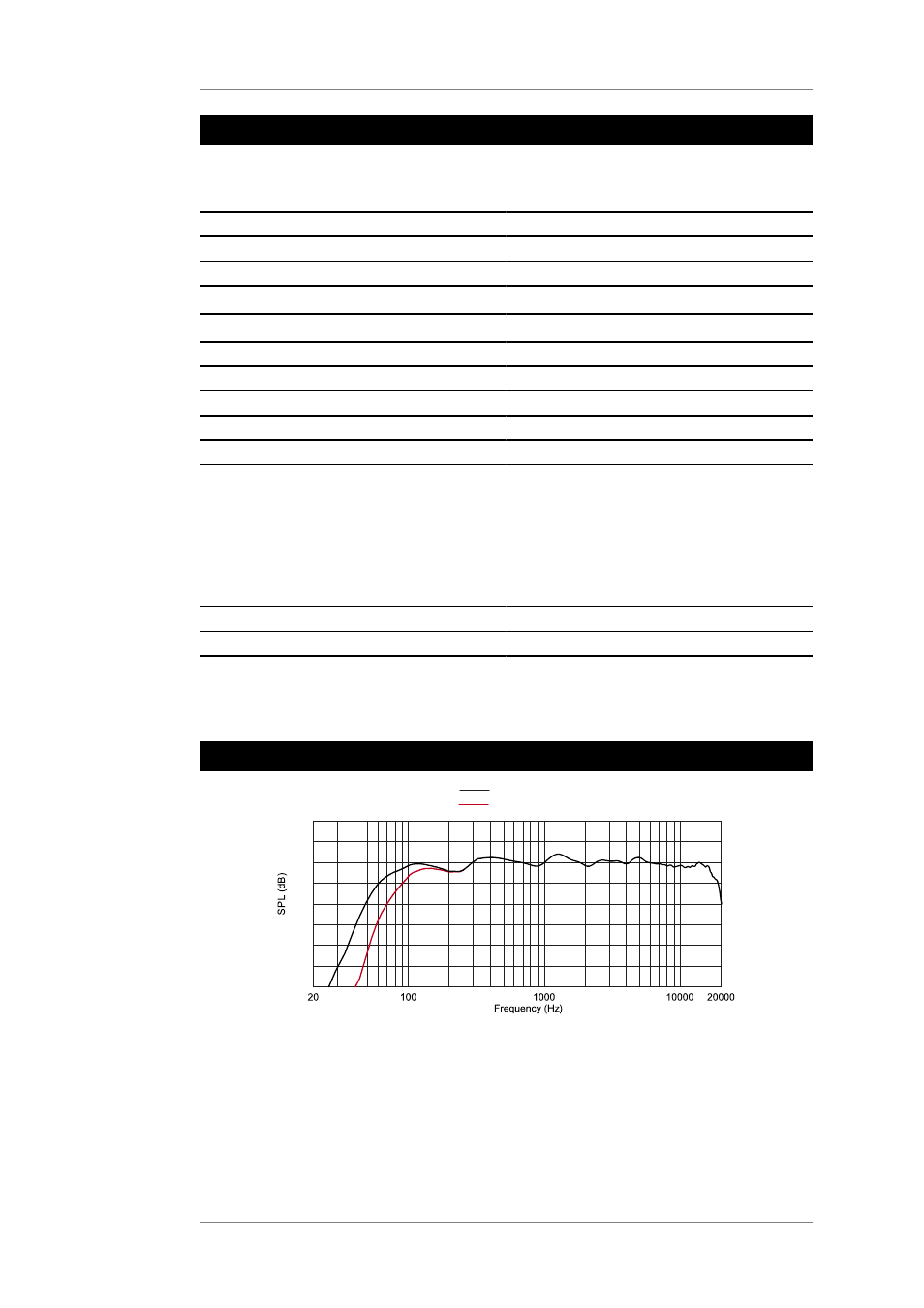

12. Measuring�diagrams
-30
-20
-10
0
10
Frequency response CD 44 Filter B 'OFF'
Frequency response CD 44 Filter B 'ON'
