User Manual
Manual-FCHA1-Rev1009.pdf Page 6 of 9 www.kbcnetworks.com
Copyright © KBC Networks Ltd
LEDs Definition:
POW: Power Supply. On if power input is in OK.
FIB: Fiber Link. Off if the link is in OK.
V: Video.
On
if video output is in OK.
C1: Channel 1 Contact Closure input. On if the contact input is closed.
C2: Channel 1 Contact Closure output. On if the contact output is closed.
C3: Channel 2 Contact Closure input. On if the contact input is closed.
C4: Channel 2 Contact Closure output. On if the contact output is closed.
The other is reserved.
4. Caution
• Switch off all power supply before installation.
• Ensure fiber is properly aligned to the Fiber connector.
• Do NOT stare at the fiber core.

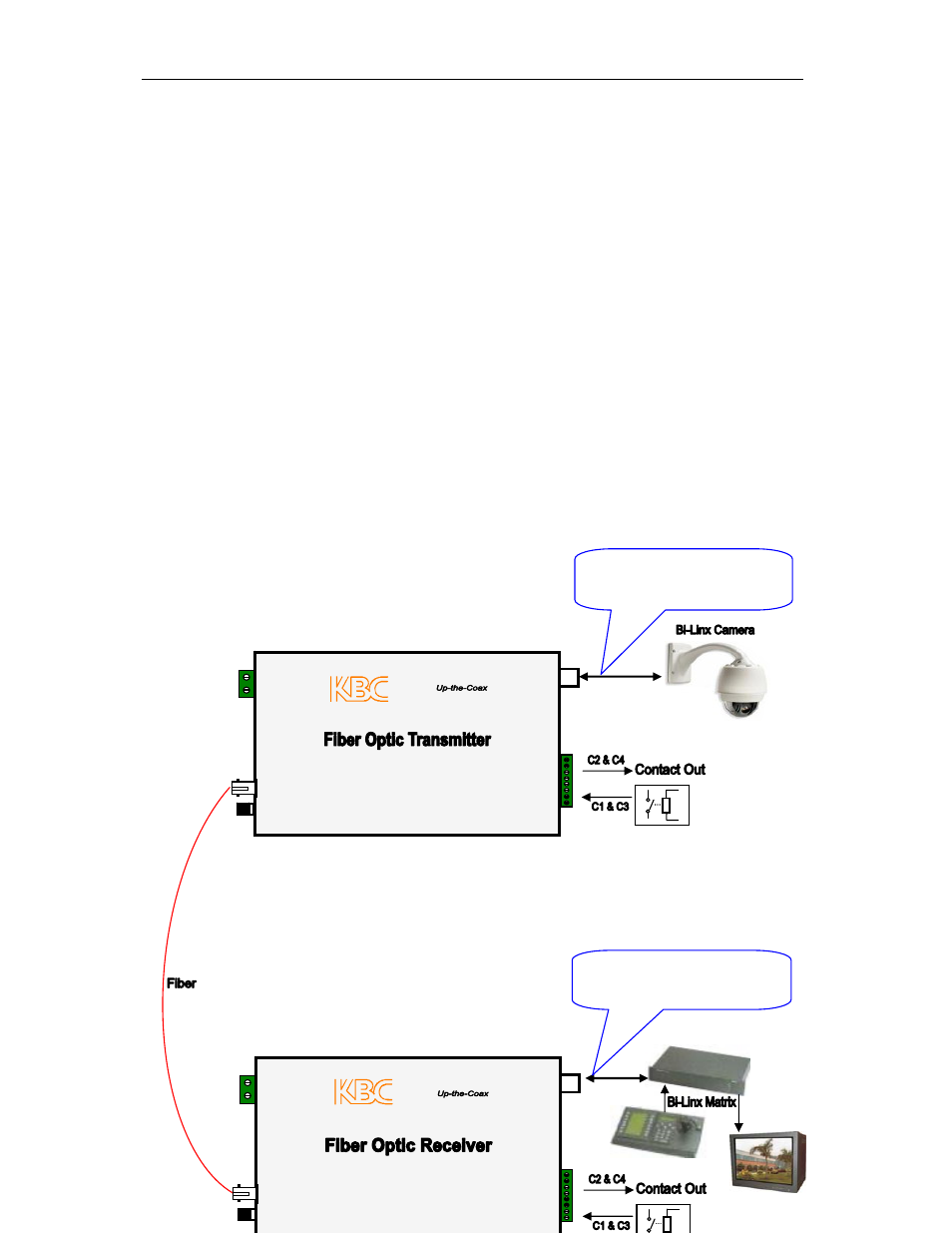

5. Typical Application
Coax Cable
（Video and Control Data）
Coax Cable
（Video and Control Data）
