2.5 Combo ports
The SFP ports can be configured as 100BASE-FX/BX or 1000BASE-SX/LX/BX/ZX in any
permutation.
The RJ45 ports are IEEE802.3ab compliant, 10/100/1000.
Note: If the SFP port is being used then the corresponding RJ45 port is automatically
disabled and vice versa.

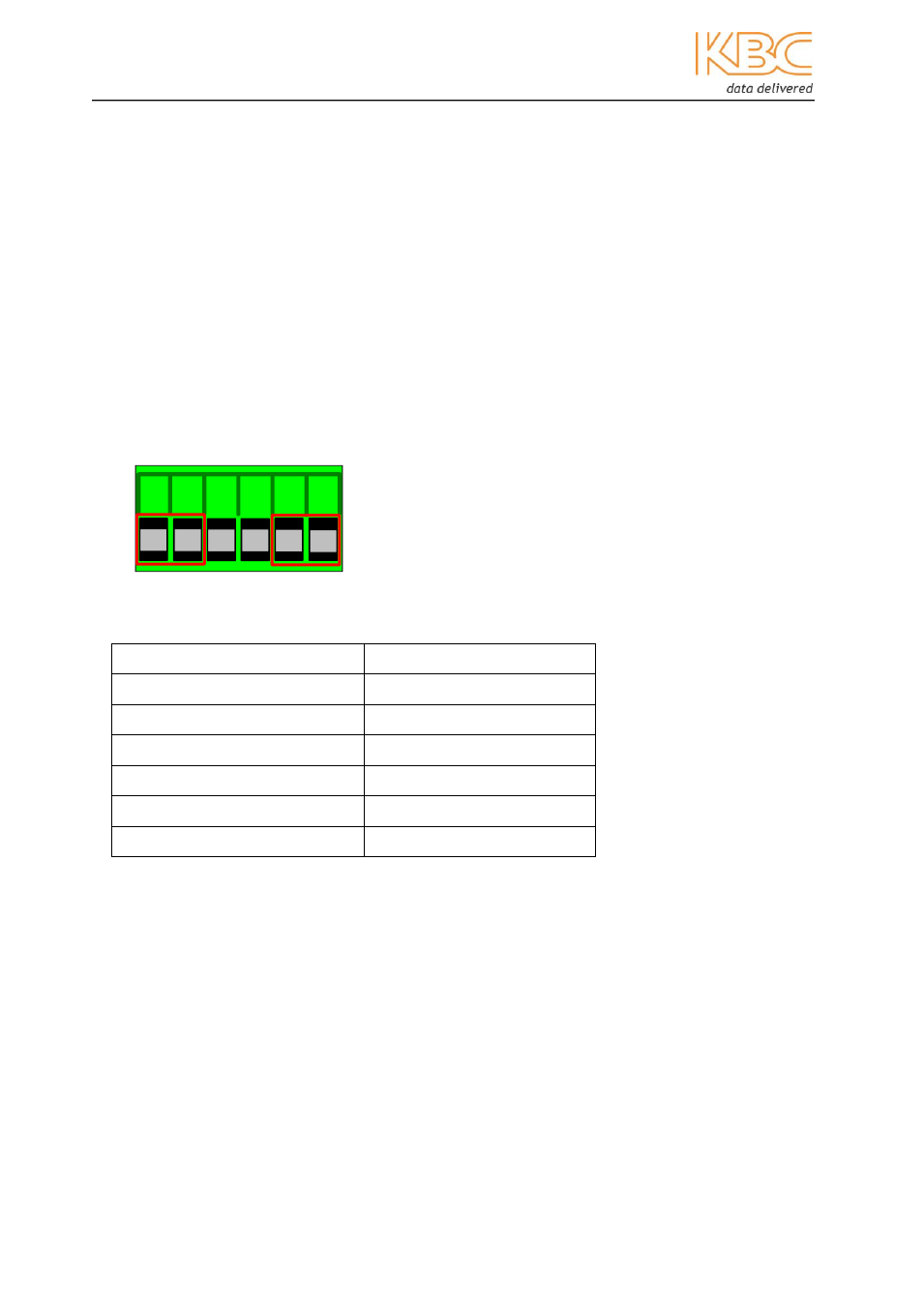

2.6 Power Connections
A 6 pin, power terminal block should be used to connect the power cable to the unit.
V- V-
2 3 4 5 6 1
V+ V+
Figure 2.1 Power connections
Contact number Connections
1 PWR2: -
2 PWR2: +
3 Fault alarm contact
4 Fault alarm contact
5 PWR1: -
6 PWR1: +
Note: If only using one power source, connect pin 1 to pin 5 and pin 2 to pin 6
otherwise the Power Fault Alarm will be lit.
