The HEX™ Series 2-way systems S400, S500 and S600 include an RAF “rear-fill” output as part of

the crossover design. The RAF output is unfiltered to maintain a correct phase relationship to the

front stage, however, the output is attenuated by -10dB to optimize for typical vehicle size and

length. Rear-fill drivers are available separately from your DAT dealer.

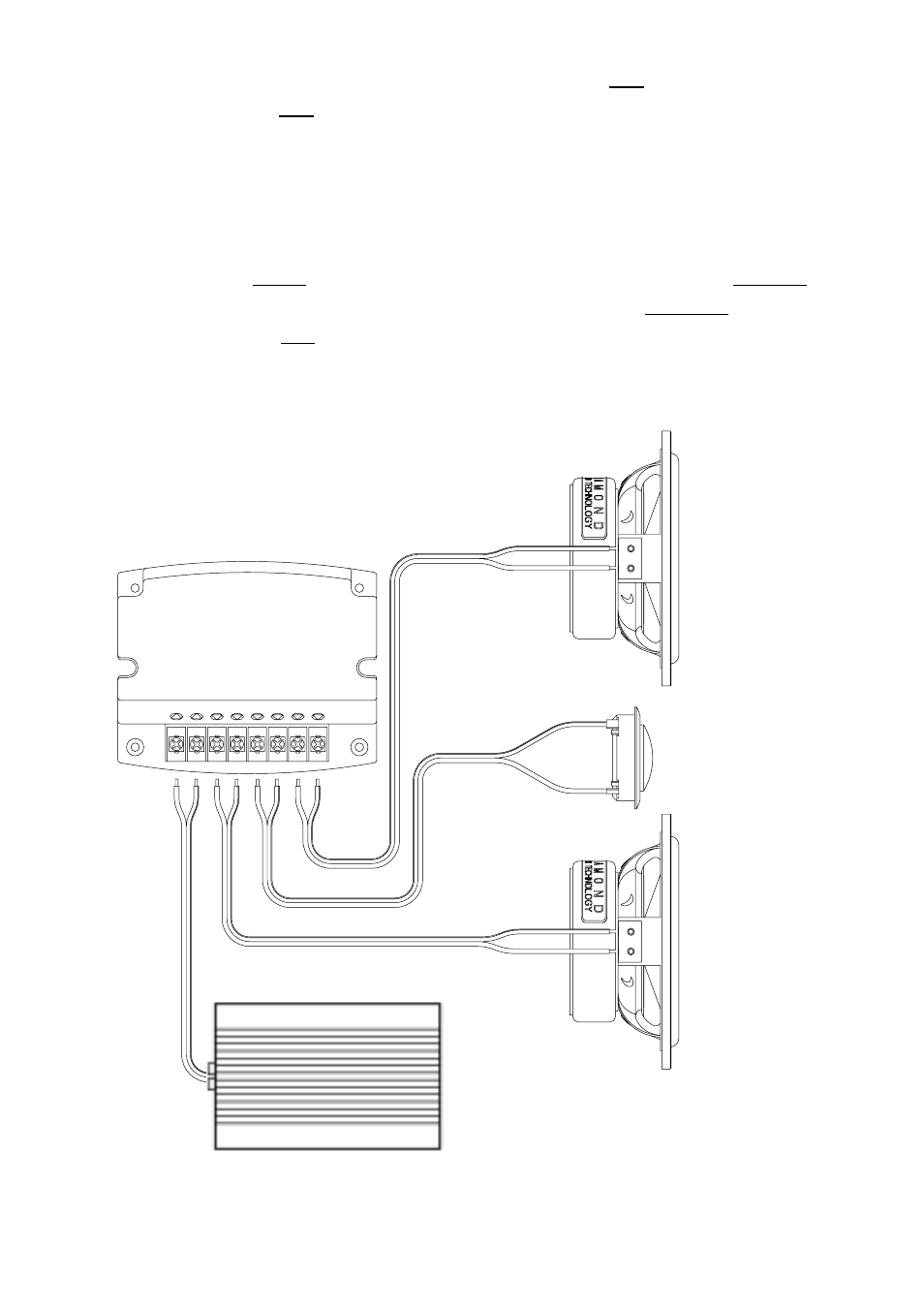

As shown in diagram ‚ below, (1) connect the amplifier’s speaker output (observing correct polar-

ity) to the crossover’s INPUT terminals. Then, (2) connect the terminals labeled WOOFER to the

woofer/midbass driver (i.e., S4.0m, S5.0m or S6.0m). (3), connect the TWEETER terminals to the

S.0ta/S.0ts tweeter. The RAF outputs (4), connect to the rear-fill driver. We suggest using the

S4.0m or S5.0m as the sound is “timbre-matched” to the front system.

-

+

-

+

REAR

TWEETER

WOOFER

INPUT

+

-

+

-

+

-

+

-

Rear Fill Driver

HEX Midrange/

Midbass

HEX Tweeter

Crossover

‚ Front Stage with Rear-Fill system. Easy with the flexible HEX systems.
