Mounting recommendations
Basically, it does not matter in what position you attach the wall
mount to the cabinet.
However, when you attach the wall mount to a complete
24C/24C-E assembly, we recommend you to attach it to the 24C
cabinet instead of the extender.

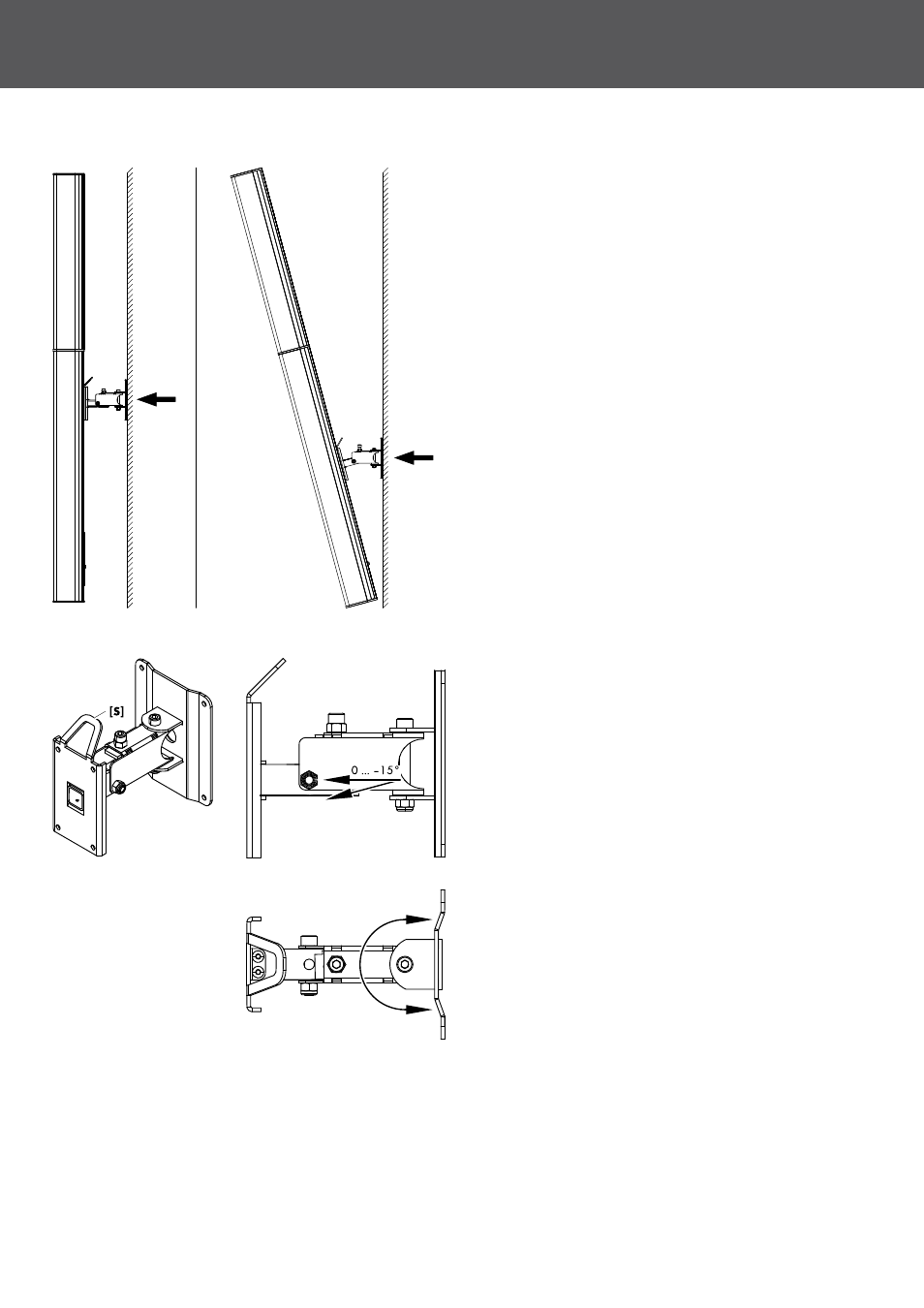

It is advisable to attach the wall mount to the upper part of the
24C cabinet close to the connector panel, as shown in the graphic
opposite.
To achieve the maximum downtilt of 15°, the wall mount must be
attached to the center of the 24C cabinet, as shown in the graphic
opposite.
1.3. Intended use
The d&b Z5442 Wall mount column must only be used in
conjunction with applicable d&b column loudspeakers.
It is intended for direct wall mounting.
The eyelet [S] of the cabinet connecting plate is intended for
attaching a secondary safety device, if required.
Depending on the application and on-site conditions, the wall
mount allows a vertical downtilt of the column of 15°, while the
column can be aimed horizontally within a range of ±90°.
