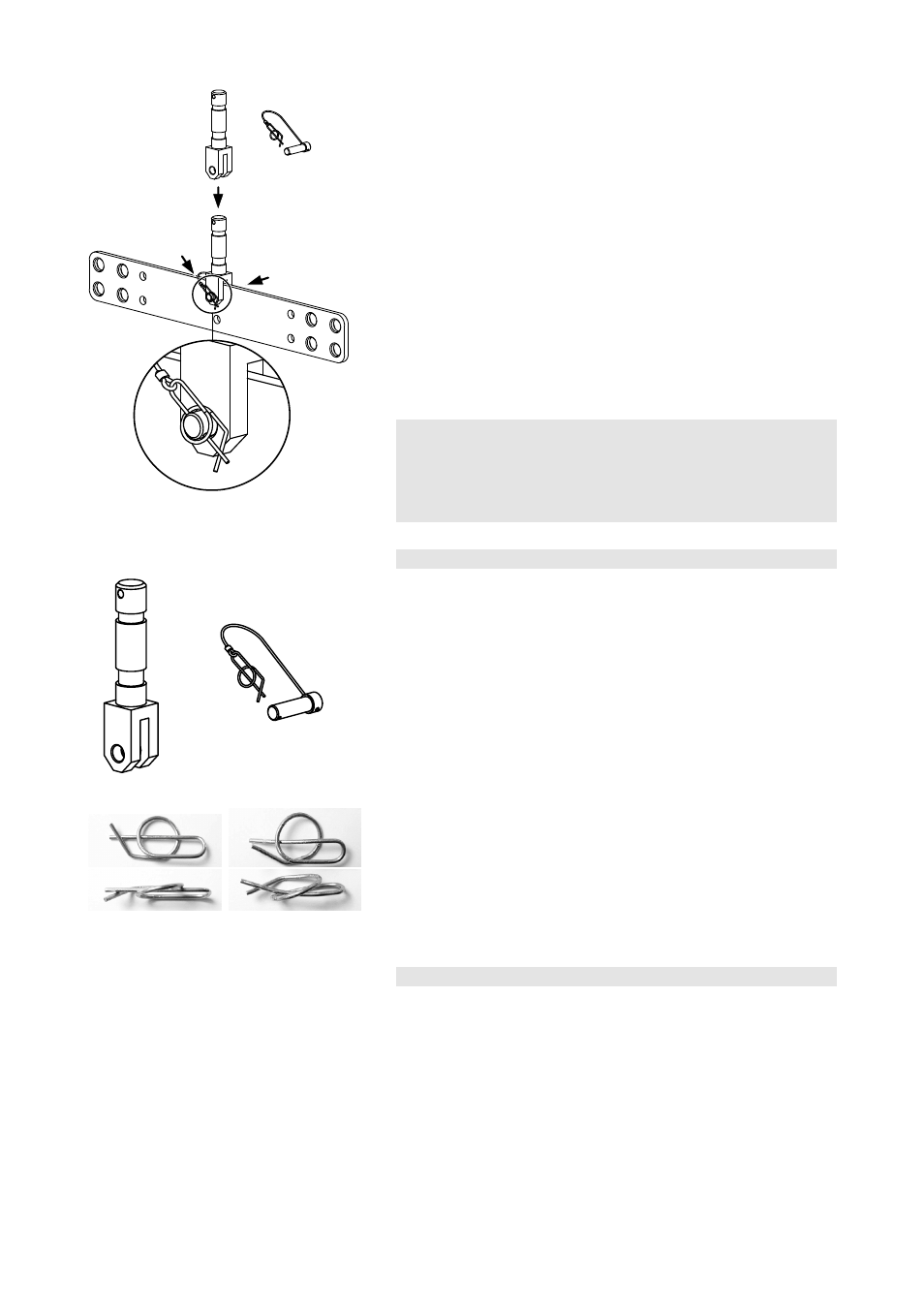

Fig. 3: Z5017 Assemby with Z5090 Single
bar
4.2. Assembly with Z5090 Single bar
1. Unlock and remove the ring cotter [1a] of the fixing bolt and remove
the fixing bolt [1b].
2. Attach the TV spigot to the Single Bar or to the respective hole of the
flying adapter.
3. Insert the fixing bolt [1b] and secure the bolt with the ring cotter [1a].
4. Recheck your work and ensure the ring cotter is properly fitted to the
fixing bolt (Fig. 3).
Safety precaution !
It is essential to bypass the TV spigot using a safety wire
(secondary safety).
If the Ring cotter either breaks or is bent out of shape, the fixing bolt
may slide out of the spigot and release the suspended load.
5. Maintenance and care
[1b] [1a]
[1]
Fig. 4: Z5017 Maintenance and care
Ring cotter o.k. Change the ring cotter
Fig. 5: Condition of the Rue ring cotter [1a]
5.1. Cleaning
Regularly clean and lubricate the TV spigot with WD-40 ® or a similar
product.
5.2. Regular inspections
Test recommendations
− Visual inspection of the TV spigot [1] for obvious damage (e.g.
deformation, cracks or corrosion).
− Visual inspection of the fixing bolt [1b] for obvious damage (e.g.
deformation, notching, cracks or corrosion).
− Visual inspection of the Rue ring cotter [1a] for obvious damage and
deformation. Also carry out a functional test of the locking
mechanism. If the ring cotter can no more be properly fitted to the
fixing bolt and locked it must be exchanged - (Fig. 5).
6. Disposal/Environmental protection
The device must be disposed in accordance to the national
environmental regulations.
Z5017 Mounting instructions (4.0EN) Page 4 of 6
