Z5017 TV spigot HD

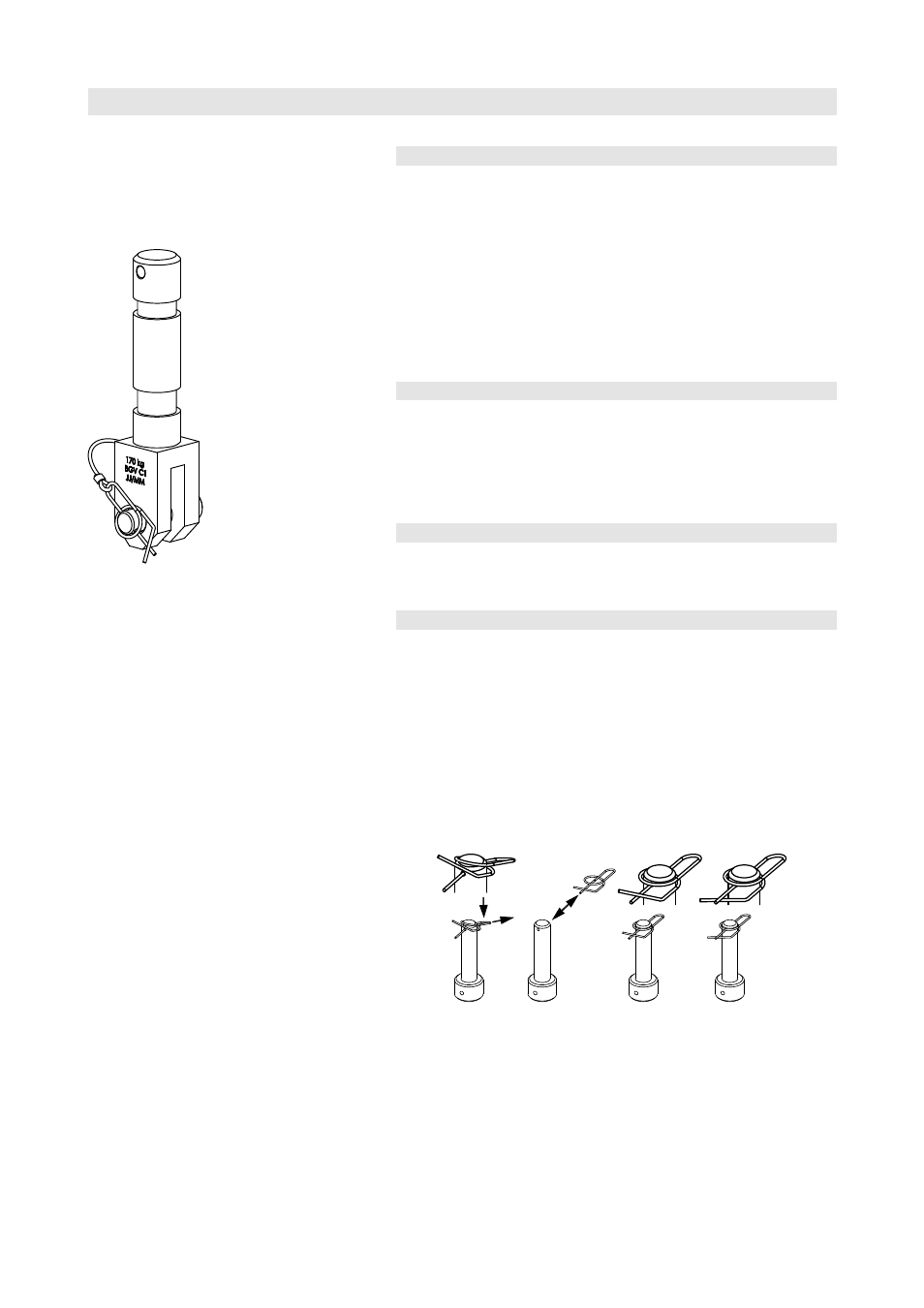

Fig. 1: Z5017 TV spigot HD
1. Product description/Application
The Z5017 TV spigot HD (according to the German standard
DIN 15560-24) can be used to vertically suspend d&b loudspeaker
cabinets from a single suspension point in conjunction with:
− Z5090 Single bar C4/C7/MAX/F2/B1
− Arrays of MAX loudspeaker cabinets using the Z5043 MAX
Horizontal bracket together with the Z5044 MAX Bracket connector.
− Arrays of Ci-Series cabinets in conjunction with the Z5054 Flying
adapter Ci60/Ci90.
2. Load safety information
The maximum permitted load of the TV spigot HD is 170 kg/375 lb
according to the German standard BGV C1. When used with the Z5090
Single bar, the maximum load is 162 kg/370 lb. TV spigot assemblies
must only ever be used with the spigot pointing vertically downwards so
that the force of the load also acts downwards.
3. Scope of supply
The Z5017 TV spigot HD is supplied with a fixing bolt and Rue ring cotter
(securing pin) together with this mounting instructions.
4. Assembly
Installation and set up should only be carried out by qualified and
trained personnel.
It is the responsibility of the person installing the assembly to ensure that
the suspension/fixing points are suitable for the intended use.
All system components must be inspected for faults before use. Please
pay attention to section 5. Maintenance and care on page 4. Damaged
components must be withdrawn from use immediately.
4.1. Function of the securing pin (Rue ring cotter)
Release Remove/
Fit
Snap in Lock
Fig. 2: Function of the Rue ring cotter (schematic diagram)
