7

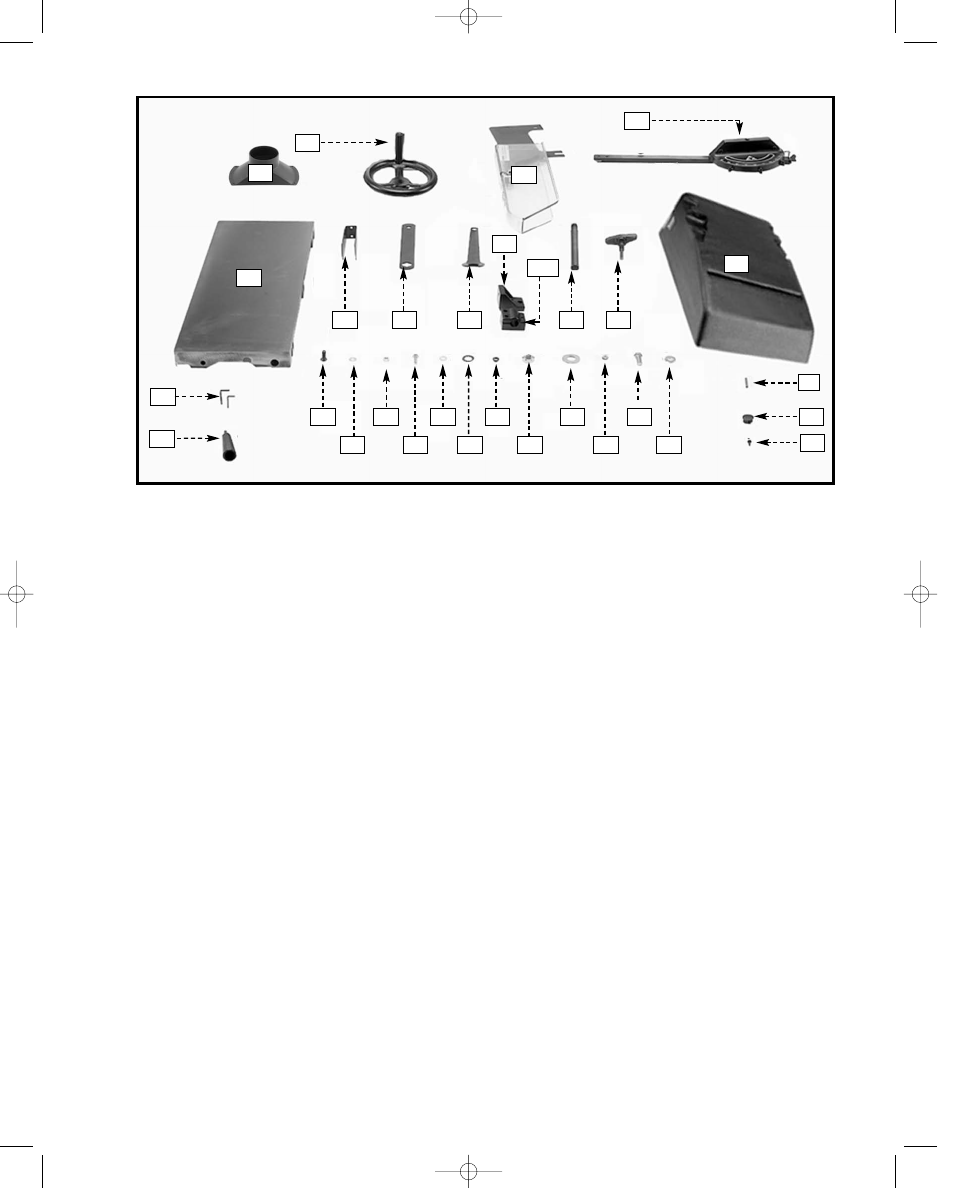

3. DUST CHUTE ADAPTER
4. HANDWHEEL
5. BLADE GUARD AND SPLITTER BRACKET
6. MITER GAUGE
7. EXTENSION WING
8. HANGERS FOR RIP FENCE (2)
9. CLOSED-END ARBOR WRENCH
10. OPEN-END ARBOR WRENCH
11. UPPER BRACKET FOR SPLITTER
11A. LOWER BRACKET FOR SUPPORT ROD
12. SUPPORT ROD
13. LOCKNOB
14. MOTOR COVER
15. 1/8" AND 5/64" HEX WRENCHES
16. 5/16-18X1” FLAT HEAD SCREW FOR MOUNTING
SWITCH (FOR MAGNETIC STARTER ONLY)
17. 5/16” FLAT WASHER FOR MOUNTING SWITCH
(FOR MAGNETIC STARTER ONLY)
18. 5/16-18 HEX NUT FOR MOUNTING SWITCH (FOR
MAGNETIC STARTER ONLY)
19. 5/16-18 X 1" HEX HEAD CAP SCREWS (4)
20. 5/16" L.D. FLAT WASHERS (2)
21. 5/8" INTERNAL TOOTH WASHER
22. 5/16" L.D. LOCKWASHERS (3)
23. 5/8-18 JAM NUT
24. FIBER WASHER (FOR HANDWHEEL)
25. FLAT WASHER FOR MITER GAUGE HANDLE
26. 7/16-20X1¼" HEX HEAD BOLT (3)
27. 7/16" FLAT WASHER (3)
28. KEY (FOR HANDWHEEL)
29. CAP FOR MITER GAUGE HANDLE
30. #10 X 1/2" HEX WASHER HEAD BOLT (8)
31. HANDLE FOR MITER GAUGE
32. CABLE TIE (NOT SHOWN)
UNPACKING AND CLEANING
Carefully unpack the machine and all loose items from the shipping container(s). Remove the protective coating from
all unpainted surfaces. This coating may be removed with a soft cloth moistened with kerosene (do not use acetone,
gasoline or lacquer thinner for this purpose). After cleaning, cover the unpainted surfaces with a good quality household
floor paste wax.
7
3
4
5
6
8 9 10
11
12 13
14
15
16
17
18
19
20
21
22
23
24
25
26 29
27
28
30
31
11A
