Appendix E
The watchdog timer makes the system auto-reset while it stops to work for a period.
The integrated watchdog timer can be setup as system reset mode by program.
Time-out Value Range
- 1 to 255
- Second or Minute
Program Sample
Watchdog timer setup as system reset with 5 second of timeout
2E, 87
2E, 87
2E, 07
2F, 08 Logical Device 8
2E, 30
2F, 01 Activate
2E, F5
2F, 00 Set as Second*
2E, F6
2F, 05 Set as 5
* Minute: bit 3 = 1; Second: bit 3 = 0

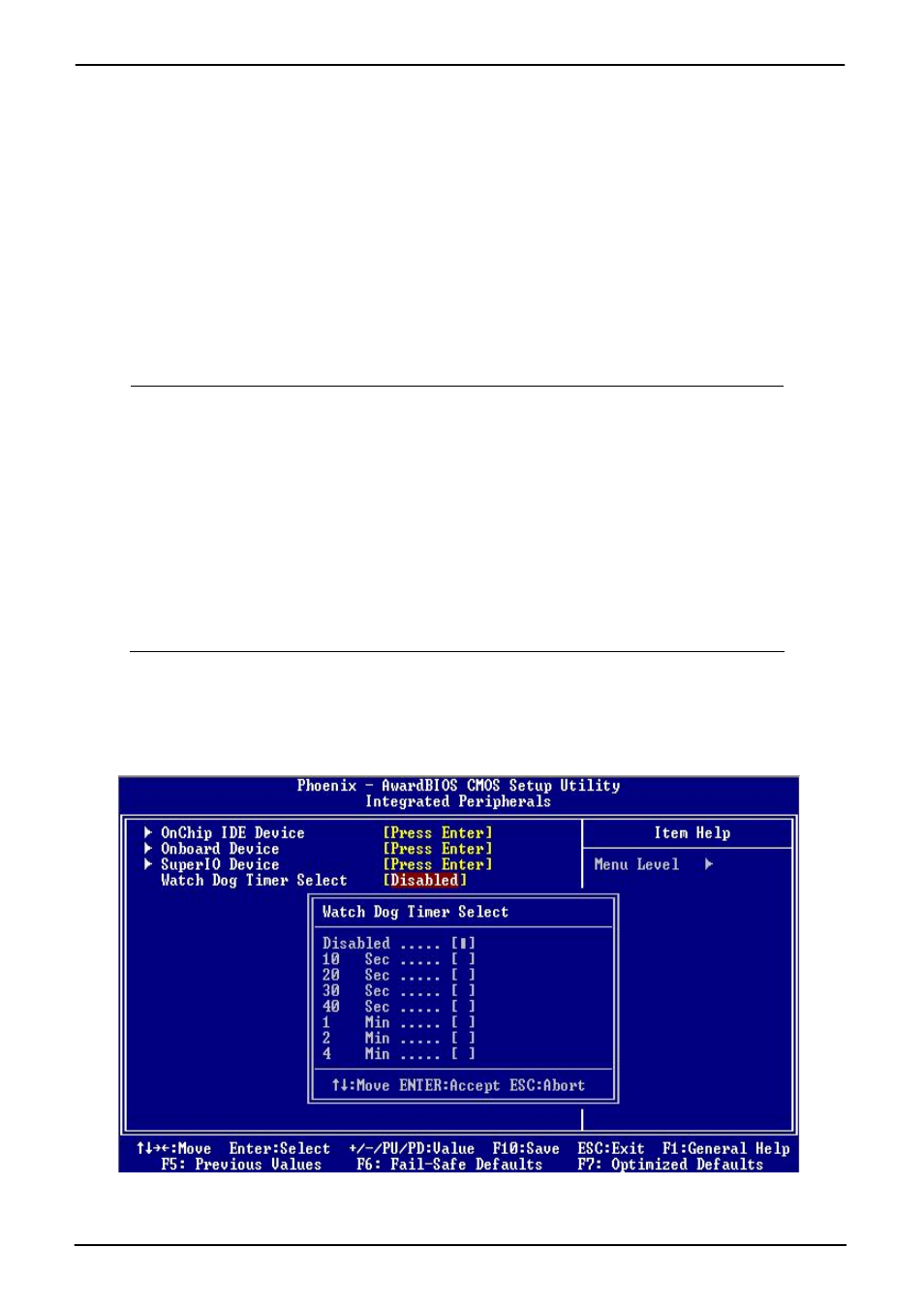

You can select Timer setting in the BIOS, after setting the time options, the system
will reset according to the period of your selection.
