2.12
Based on Intel
®
ICH8-M, the board provides six USB2.0 ports six on board pin header for on
PICMG 1.3 Interface. The USB2.0 interface provides up to 480Mbps of transferring rate.
The Intel
®
ICH8-M contains two Enhanced Host Controller Interface (EHCI) and five
Universal Host Controller Interfaces (UHCI) it can determine whether your connected
device is for USB1.1 or USB2.0, and change the transfer rate automatically.

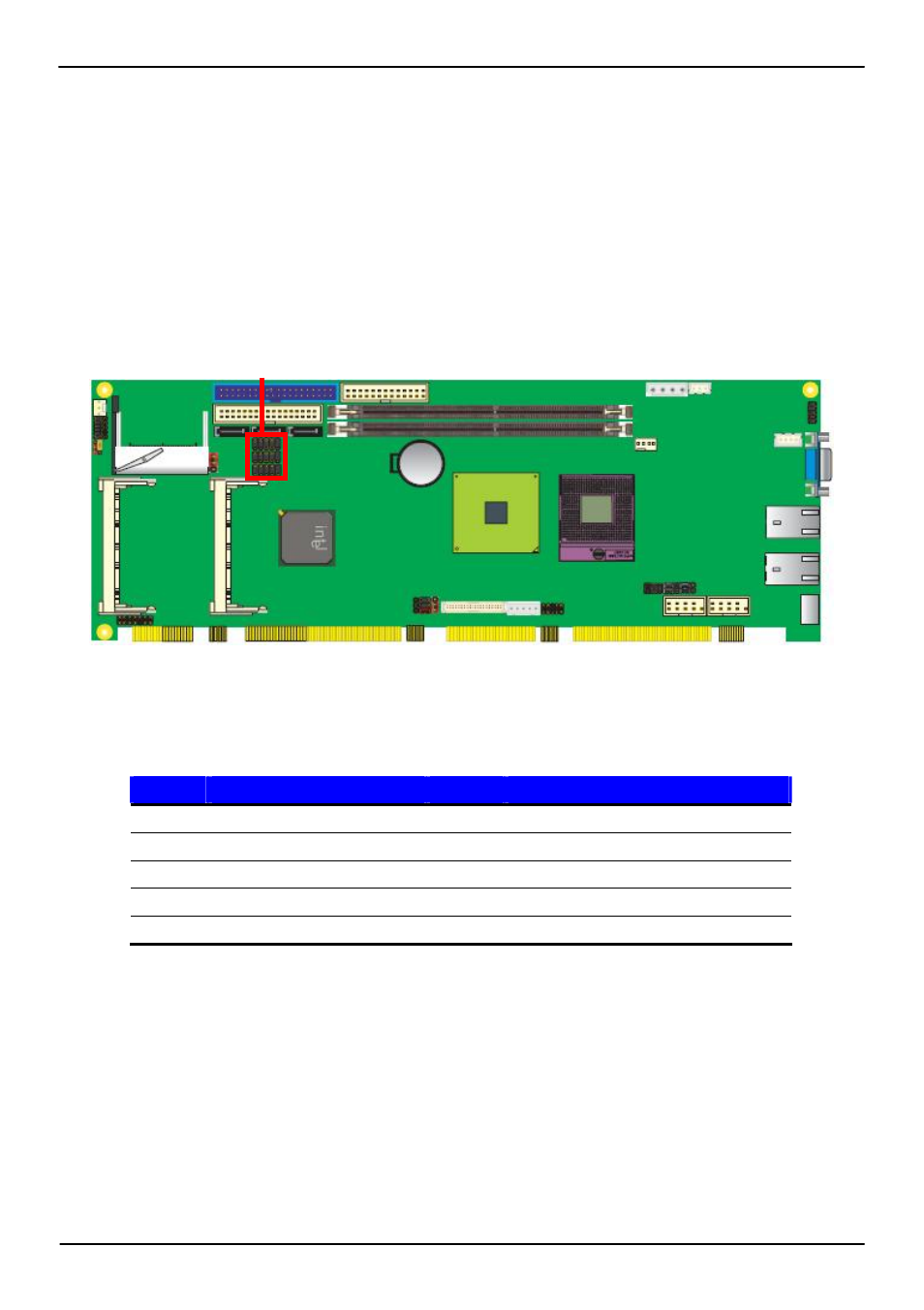

Connector: CN_USB1/2/3
Type: 10-pin (5 x 2) header for USB Port
Pin
Description
Pin
Description
1 VCC
2 VCC
3 Data0-
4 Data1-
5 Data0+
6 Data1+
7 Ground
8 Ground
9 Ground
10
N/C
CN_USB1/2/3
