FS-A71 User’s Manual
-26-
2.10
The board integrates onboard audio interface with REALTEK ALC888 codec, with Intel next
generation of Audio standard as High Definition Audio, it offers more sound and other
advantages than former HD Audio compliance.
The main specifications of ALC888 are:
z
High-performance DACs with 100dB S/N ratio
z
8 DAC channels support 16/20/24-bit PCM format for 2 audio solution
z
Compatible with HD Audio
z
Meets Microsoft WHQL/WLP 2.0 audio requirements
The board provides 2 channels speaker and from pin header MIC-in ports through Audio
cable.

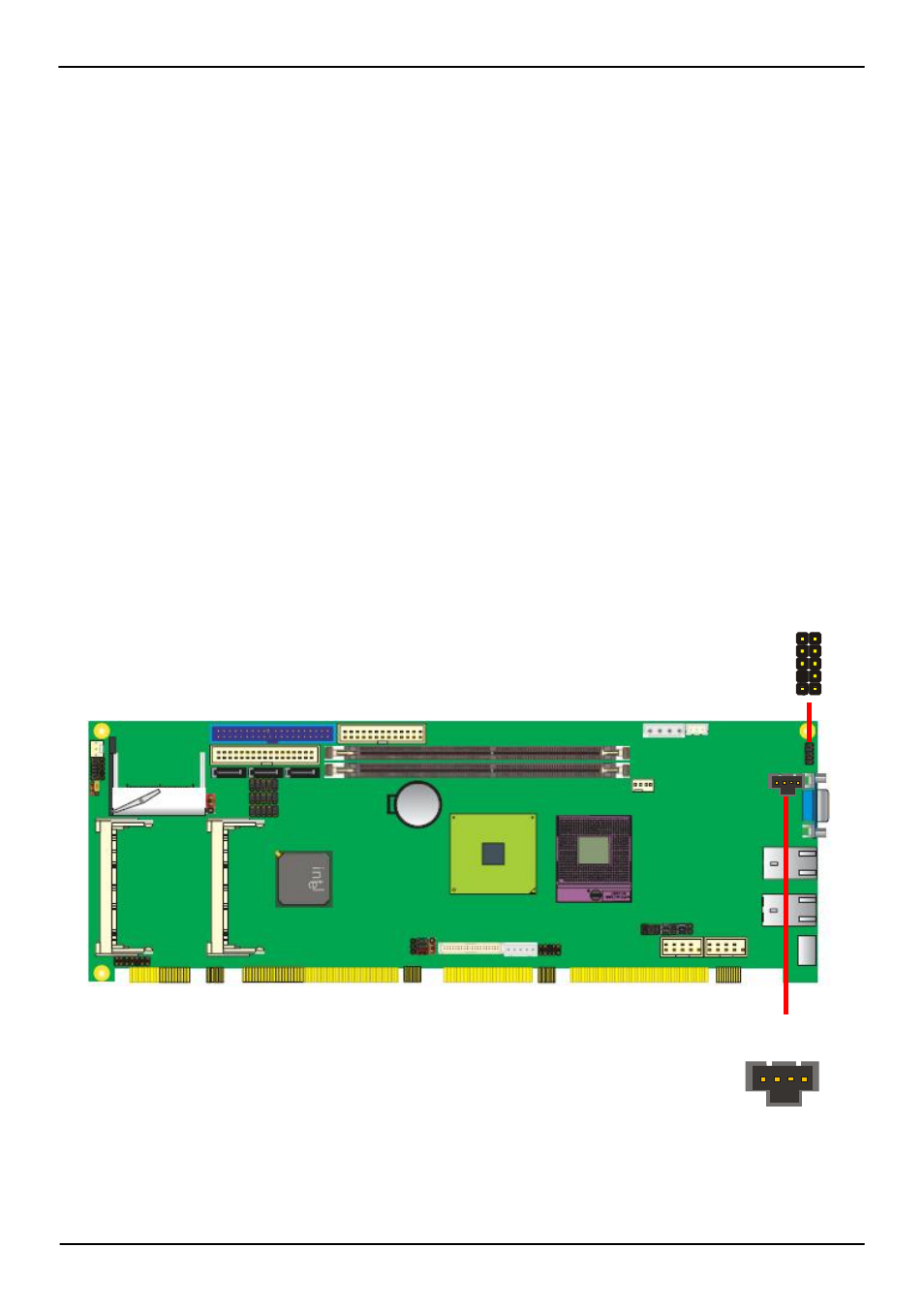

CN_AUDIO
1 4
CDIN
1
2
9
10
