FS-A73 User’s Manual

37

2.15

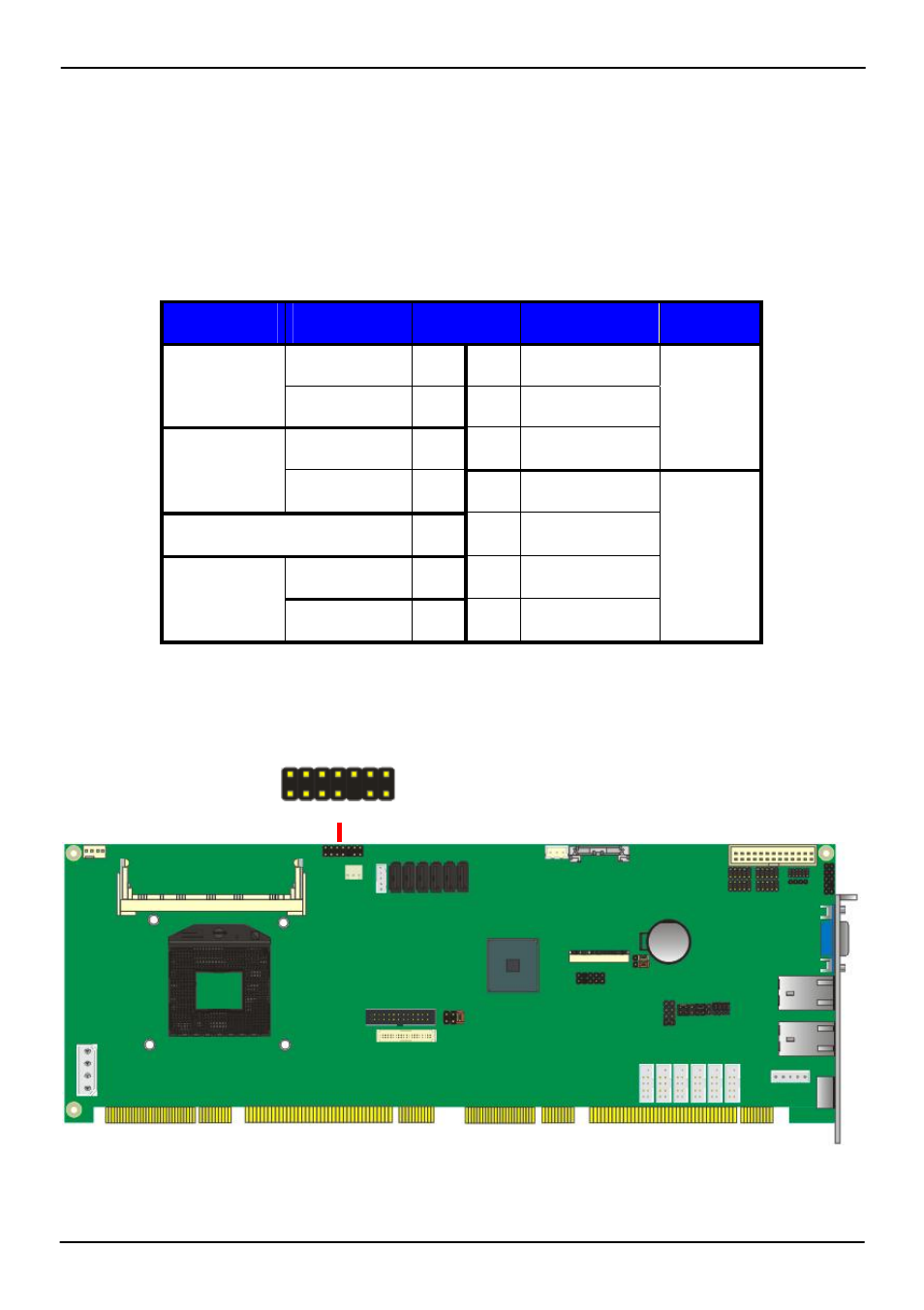

The JFRNT provides front control panel of the board, such as power button, reset and

beeper, etc. Please check well before you connecting the cables on the chassis.

Connector: JFRNT
Type: onboard 14-pin (2 x 7) 2.54-pitch header

Function

Signal

PIN

Signal

Function

HDLED+ 1

2 PWDLED+

IDE LED

HDLED- 3

4 N/C

Reset+ 5

6 PWDLED-

Power

LED

Reset

Reset- 7

8 SPKIN+

N/C 9

10

N/C

PWRBT+ 11

12

N/C

Power

Button

PWRBT- 13

14

SPKIN-

Speaker

1 13

JFRNT

2 14
