FS-A73 User’s Manual
31
2.12
FS-A73 integrates eight USB2.0 ports. The specifications of USB2.0 are listed below:
Interface
USB2.0
Controller
Intel QM57 PCH
Transfer Rate
Up to 480Mb/s
Voltage 5V
The Intel® QM57 PCH contains two Enhanced Host Controller Interface (EHCI) and five
Universal Host Controller Interfaces (UHCI), it can determine whether your connected
device is for USB1.1 or USB2.0, and change the transfer rate automatically.

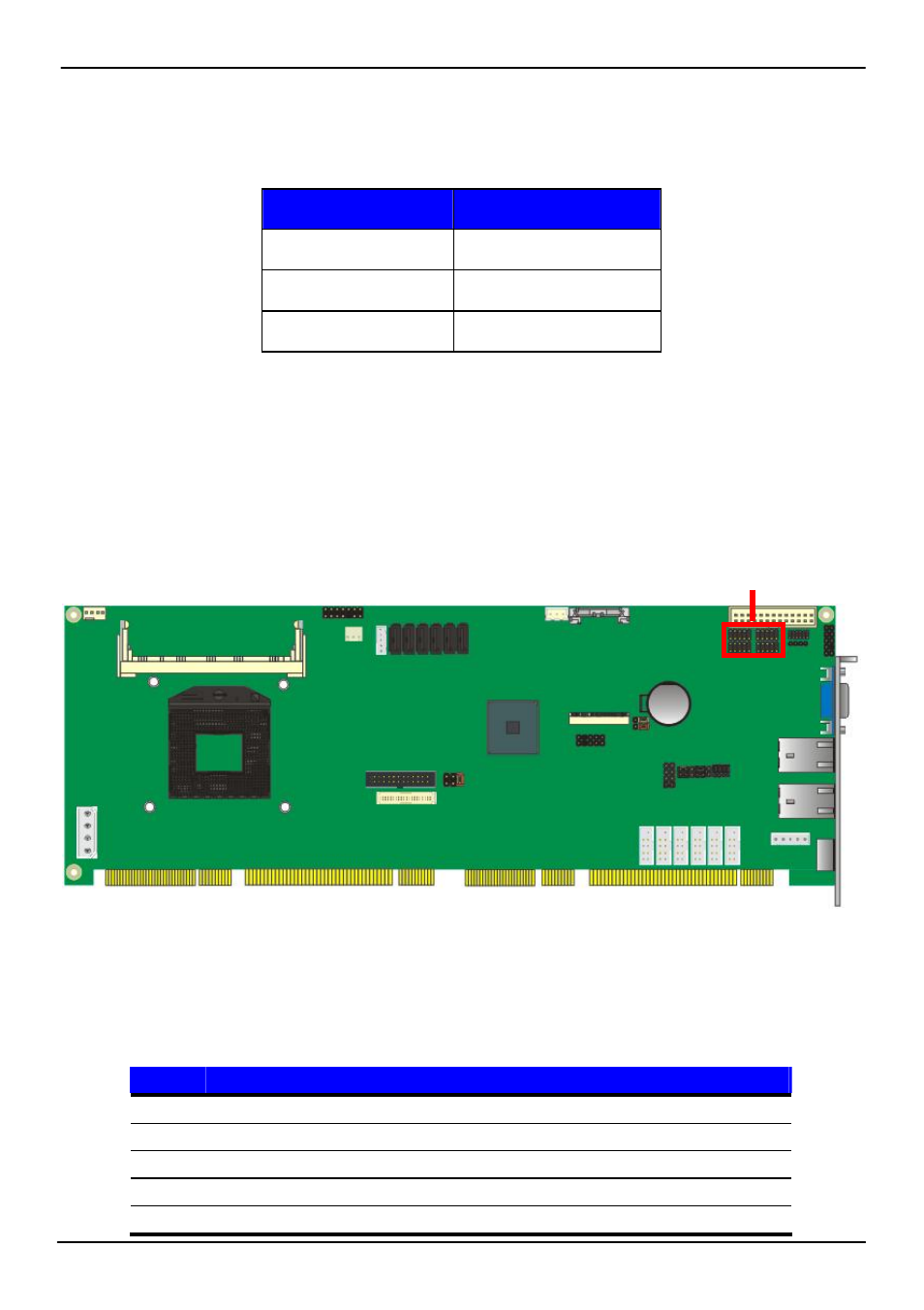

Connector: CN_USB1/2/3/4
Type: 10-pin (5 x 2) header for USB1/2/3/4 Ports
Pin
Description
Pin
Description
1 VCC
2 VCC
3 Data0-
4 Data1-
5 Data0+
6 Data1+
7 Ground
8 Ground
9 Ground
10
N/C
CN_USB1/2/3/4
