7

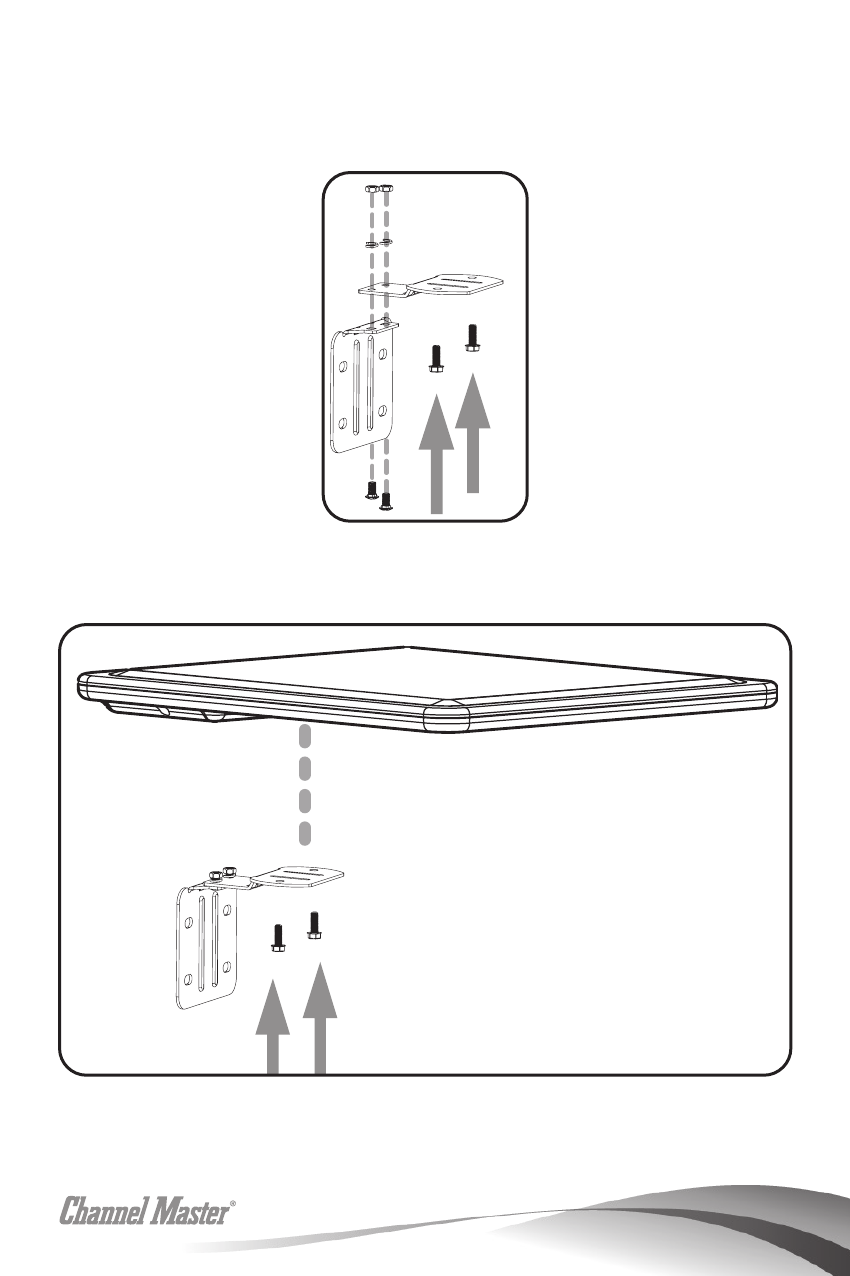

Outdoor Use, Wall Mounting:
1. Assemble the metal mount (Fig. a) using the two (10
mm) round head screws provided.
Figure a
2. Attach the metal mount (Fig. 3) to the antenna unit
using the two (15 mm) screws provided.
Figure 3
