CM-3000HD Installation Instructions:
Indoor Use, Table Top:

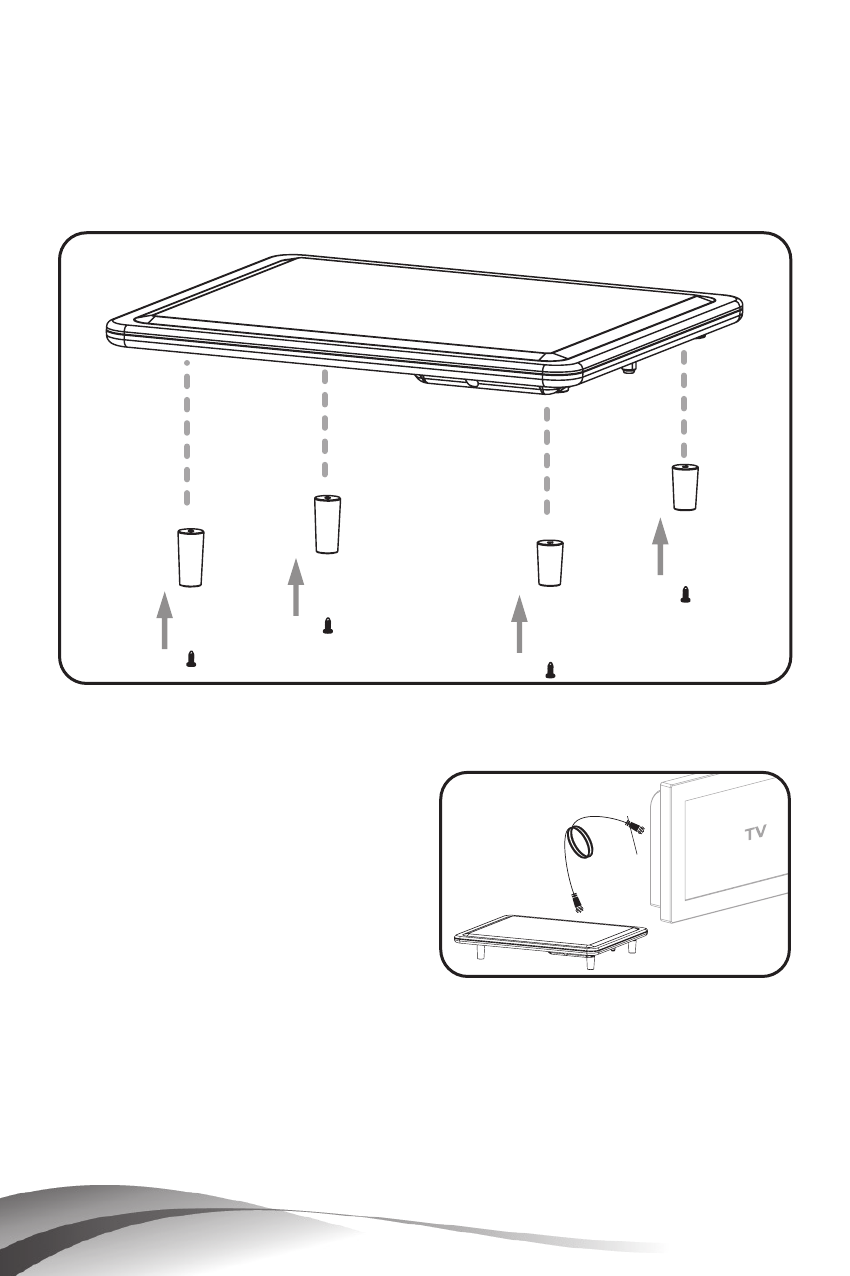

1. Attach the plastic feet (Fig. 1) to the antenna unit
using the four (10 mm) screws provided.
Screws
Tornillos
Vis
Figure 1
2. Place the CM3000HD on a counter near the TV set.
3. Connect the F
connector from one
end of a coaxial jumper
to the F connector on
the antenna. Connect
the F connector from
the other end of a
coaxial jumper to the F
connector on the TV set or Set Top Box/DVR (
Fig. 2).
4. Adjust the position of the antenna as necessary to get
the strongest signals (see Operating Instructions on
page 10).
5. Installation is now complete.
Coaxial Cable
Cable coaxial
Câble coaxial
Figure 2
