Power Jet-Light 4 x 36 W IP54
Instruction manual 16 GB

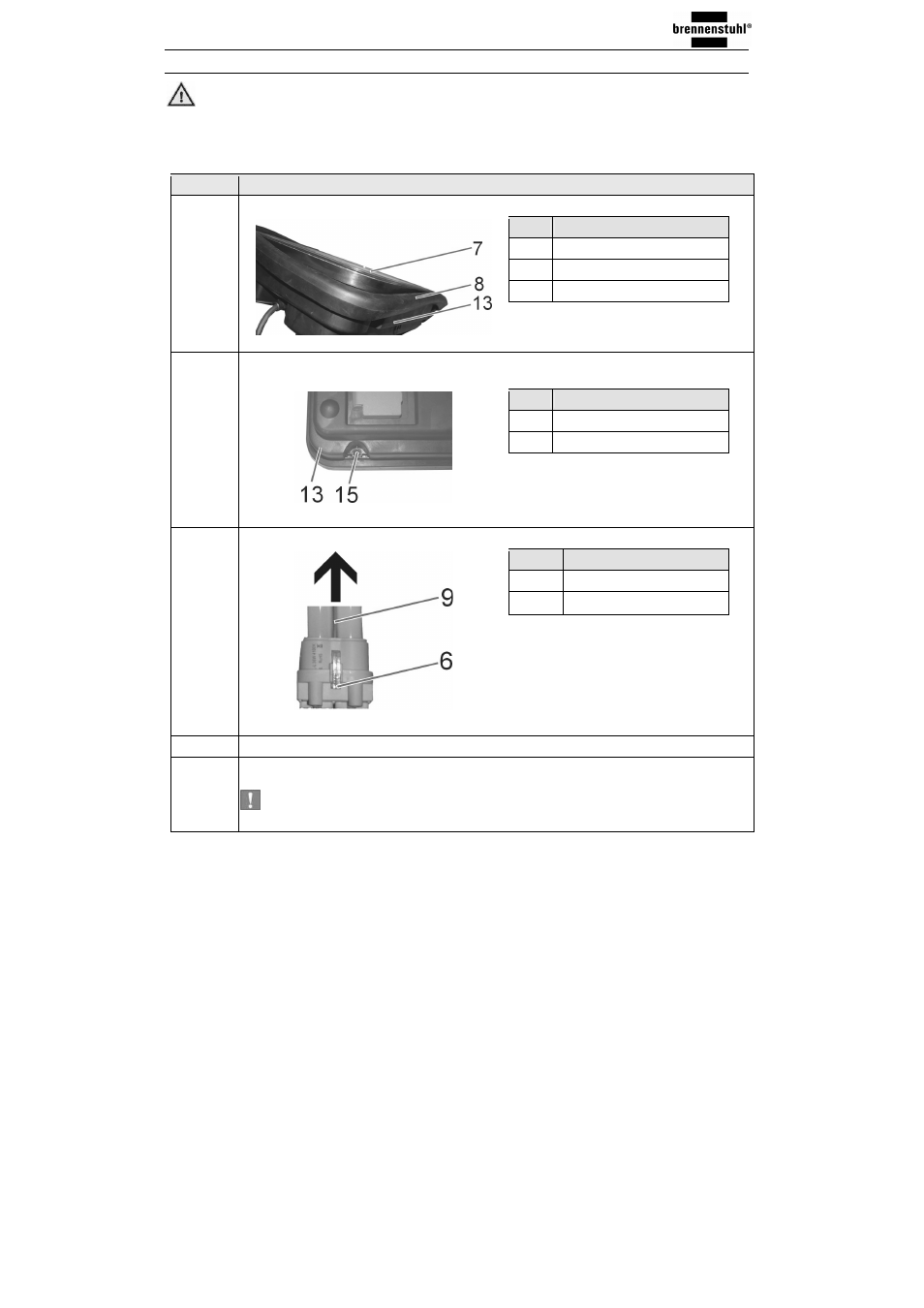

6.2 Change lamp
DANGER:
Disconnect mains plug before opening the working lamp!
Let working lamp cool down before touching it (at least 15 minutes).
Any contact might cause burns.
Step Operation
Turn working light on the “back“. Press rubber lip down.
Pos. Description
7 Protective cover
8 Rubber lip
13 Casing
1
Figure 3: Remove rubber lip
Table 4: Remove rubber lip
Unscrew the 4 screws of the protective cover from casing. Remove protective
cover.
Pos. Description
13 Casing
15 Protective cover screws
2
Figure 4: Open protective cover
Table 5: Open protective cover
Remove lamp from socket by pulling it upwards.
Pos. Description
6 Socket
9 Lamp
3
Figure 5: Socket
Table 6: Socket
4 Insert new lamp with light pressure.
5 Put protective cover on the casing. Screw the 4 screws of the protective cover into
the protective cover. Put sealing over protective cover again.
IMPORTANT: See that the sealing sits correctly between casing and
protective cover.
