Power Jet-Light 4 x 36 W IP54

Instruction manual

5 Technical specifications

Device:

Power Jet - Light 4 x 36 W

Art. no. 1 17266 0

Protection class:

IP 54 (dustproof, waterproof)

Power supply:

230 V~ 50 Hz

Cable:

Rubber cable H07RN-F 3G1.5

Length of cable:

approx. 5 m

Dimensions (H x W x D):

approx. 520 x 375 x 110 mm

Weight:

6.0 kg

Protection class:

Max. load:

max. 3500 W

Rated current:

max. 16 A

Lamp:
Power input:

up to 4 x 36 W (lamp)

Lamp:

4 x 36 W, PL compact lamp

Protection class:

6 Operation

and

installation

IMPORTANT:

Observe the following directions, the safety instructions in particular, in

order to prevent incorrect operation and possible defects.

6.1 Initial

commissioning

Step

Operation

Pos. Description

4 Adjusting

screw

10 Mounting

bracket

11 Washer
12 Spacer
13 Casing

14 Toothed

lock

washer

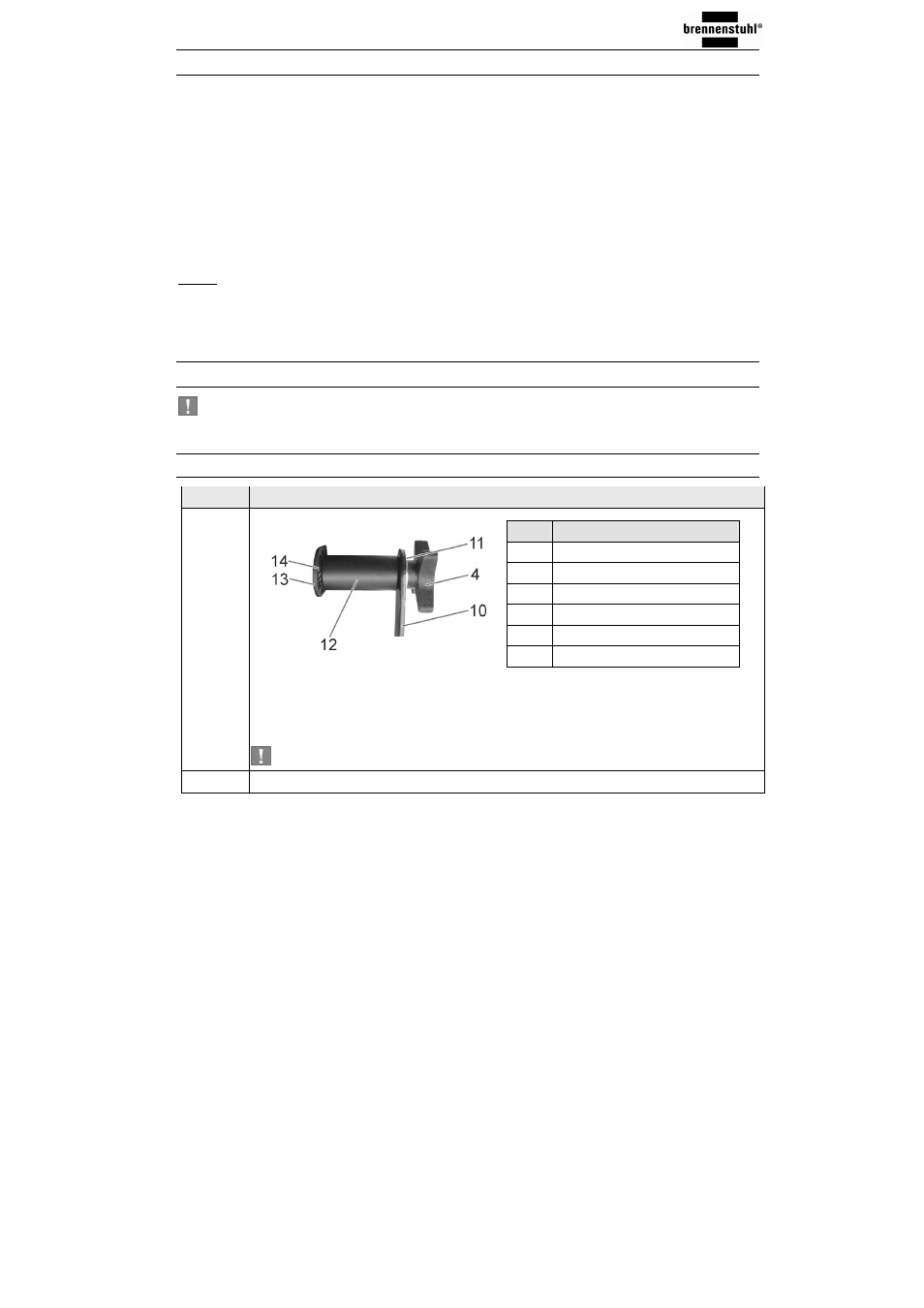

Figure 2: Commissioning

Table 3: Commissioning

Fix the socket in the middle of the mounting bracket. Mount lamp as shown in
figure 2.

The angle of the working light can be adjusted with the adjusting screws.

IMPORTANT: Check all screw connections prior to initial commissioning.

Press ON/ OFF button. The working lamp will be switched on or off.
