Page 17: Bcd-1000
Rev. 1.06
- 17 -
BCD-1000

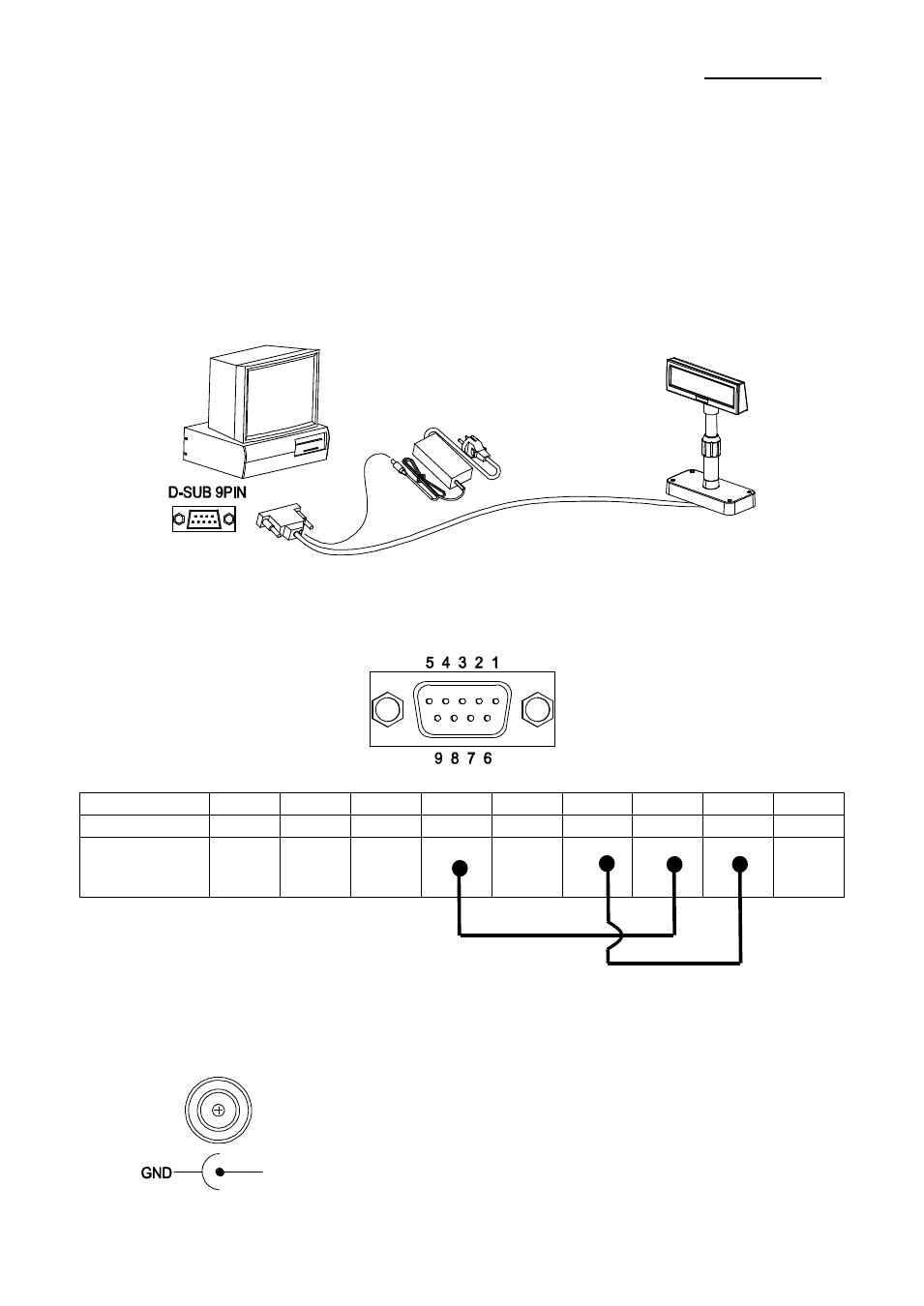

6-1-3 Installation Instructions
STEP1. Turn the computer system power off.
STEP2. Connect the Display Cable to the RS-232 Port of the Computer.
STEP3. Connect the DC Power source by the appropriate DC Power adapter.
STEP4. Turn on the computer and the power supply unit, the display will be on and ready
for receiving data.
6-1-4 Signal Assignments (Cable-end DSUB)
1
2
3
4
5
6
7
8
9
pin Name
NC
RXD
TXD
DTR
GND
DSR
RTS
CTS
NC
Short
Connection
6-1-5 DC Power Jack
MAX 300 ~ 1350mA. +12VDC ~ +24VDC.
