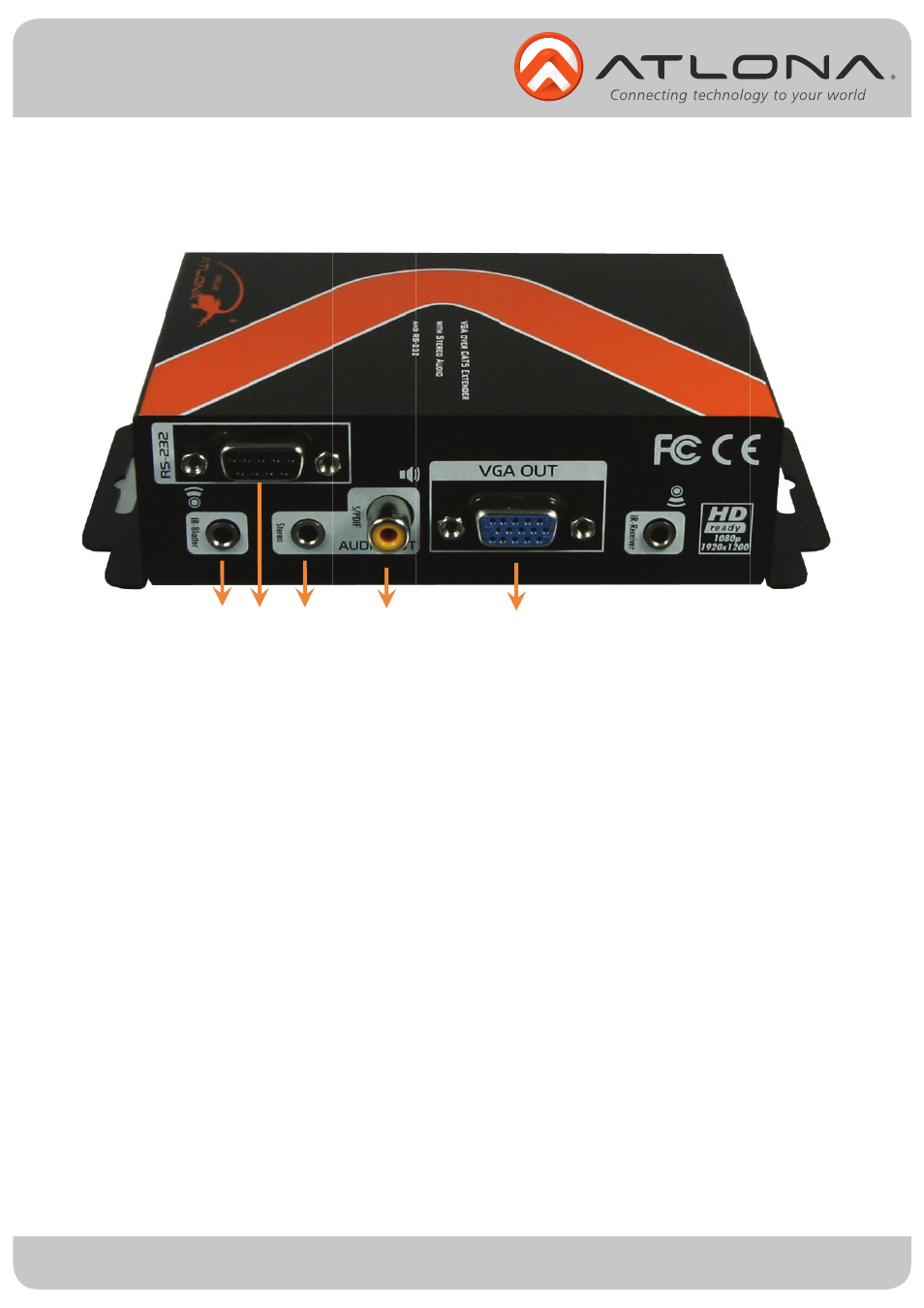

AT-VGA-RS300R
Front Panel
1. IR Receiver: Connect to the IR receiver
2. RS-232: Connect 9pin connector to device then RS-232 capable device
3. Audio Out: Connect analog audio to analog enabled device
4. S/PDIF Out: Connect S/PDIF connector to a digital audio device
5. VGA Out: Connect to VGA display or use a breakout cable to connect to a component video display
6. IR Blaster: Connect to the IR blaster.
