AT-VGA-RS300S
8. +5V DC: interlocked power jack to connect to 5V DC power supply unit
9. Local VGA: VGA loop-out to a local VGA display or component video display via a VGA component
breakout cable.
10. System OUT: Plug in a CAT5/5e/6 cable that needs to be linked to AT-VGA-RS300R
11. Local S/PDIF: Digital stereo audio loop-out
12. Local Stereo: Analog stereo audio loop-out
8
9
10
11
12

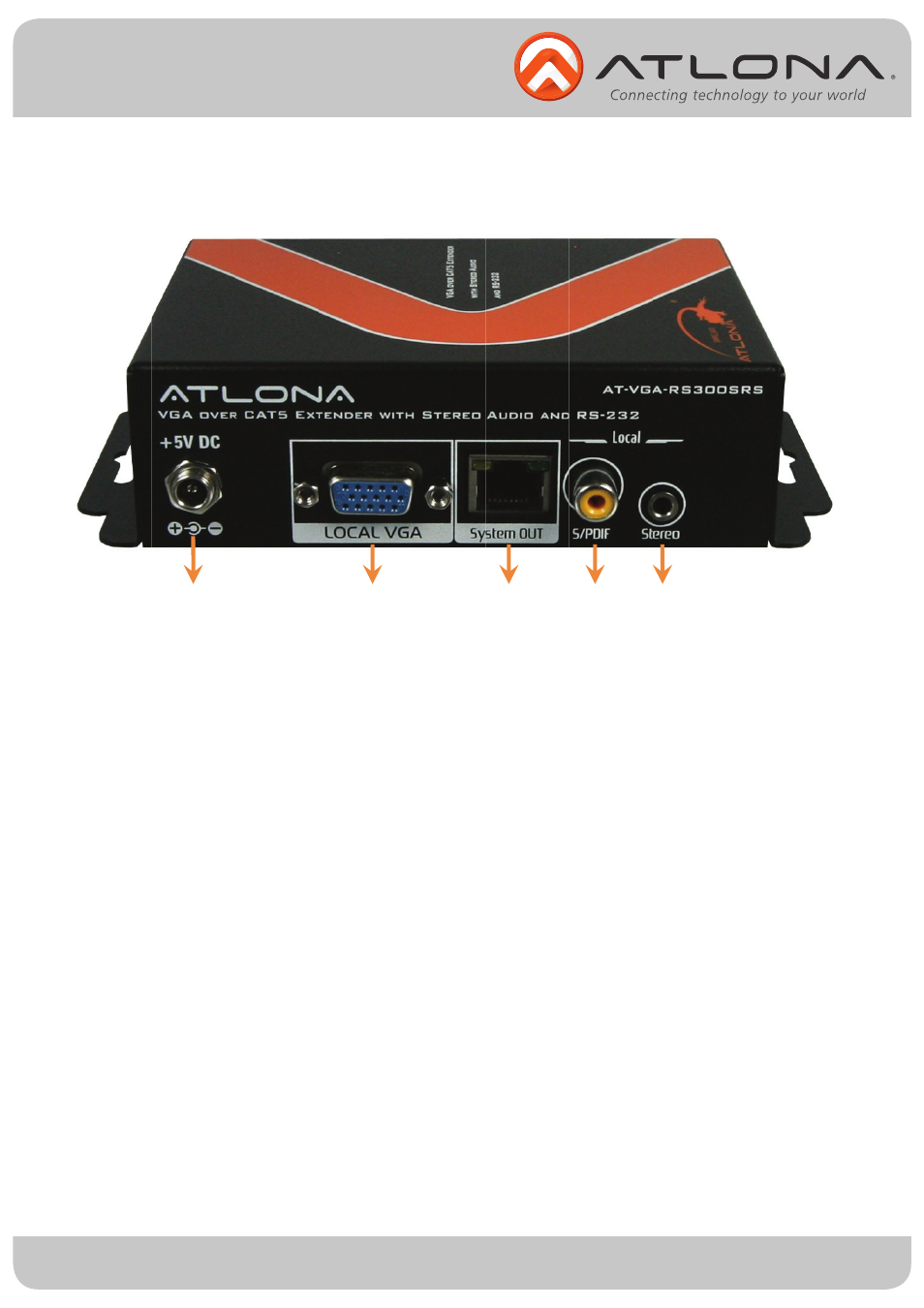

Rear Panel
