EDID LEARNING
DIP SWITCH
NOTICE
Pin No. 1 2 3 4
OFF ( ) Used for
SMPTE352M
3G level B Audio group 3&4 Update EDID
ON ( ) 3G level A Audio group 1&2 Default EDID
1. Factory default for 4-pin DIP: ON-ON-ON-ON
2. AT-HD-3GSDI mainly embeds the audio channels in audio group 1&2 or 3&4. Please adjust DIP switch pin 3
for setup.
3. While stereo audio is chosen, only the first pair of HDMI audio will placed into CH 1 & 2 of Group 1 or 3,
dependent upon pin 3.
4. In order to keep the compatibility of HDMI to most monitors, AT-HD-3GSDI features EDID learning ability.
The operation is shown in the EDID learning section.
1. Turn off AT-HD-3GSDI and set the pin 4 of DIP switch of AT-HD-3GSDI to OFF.
2. Connect the TV monitor thru HDMI port to AT-HD-3GSDI, and then turn on AT-HD- 3GSDI.
3. The LED of AT-HD-3GSDI will dim and light again, which indicates the EDID learning process is finished.
4. Connect AT-HD-3GSDI to the HDMI source through a HDMI cable and enjoy the experience.

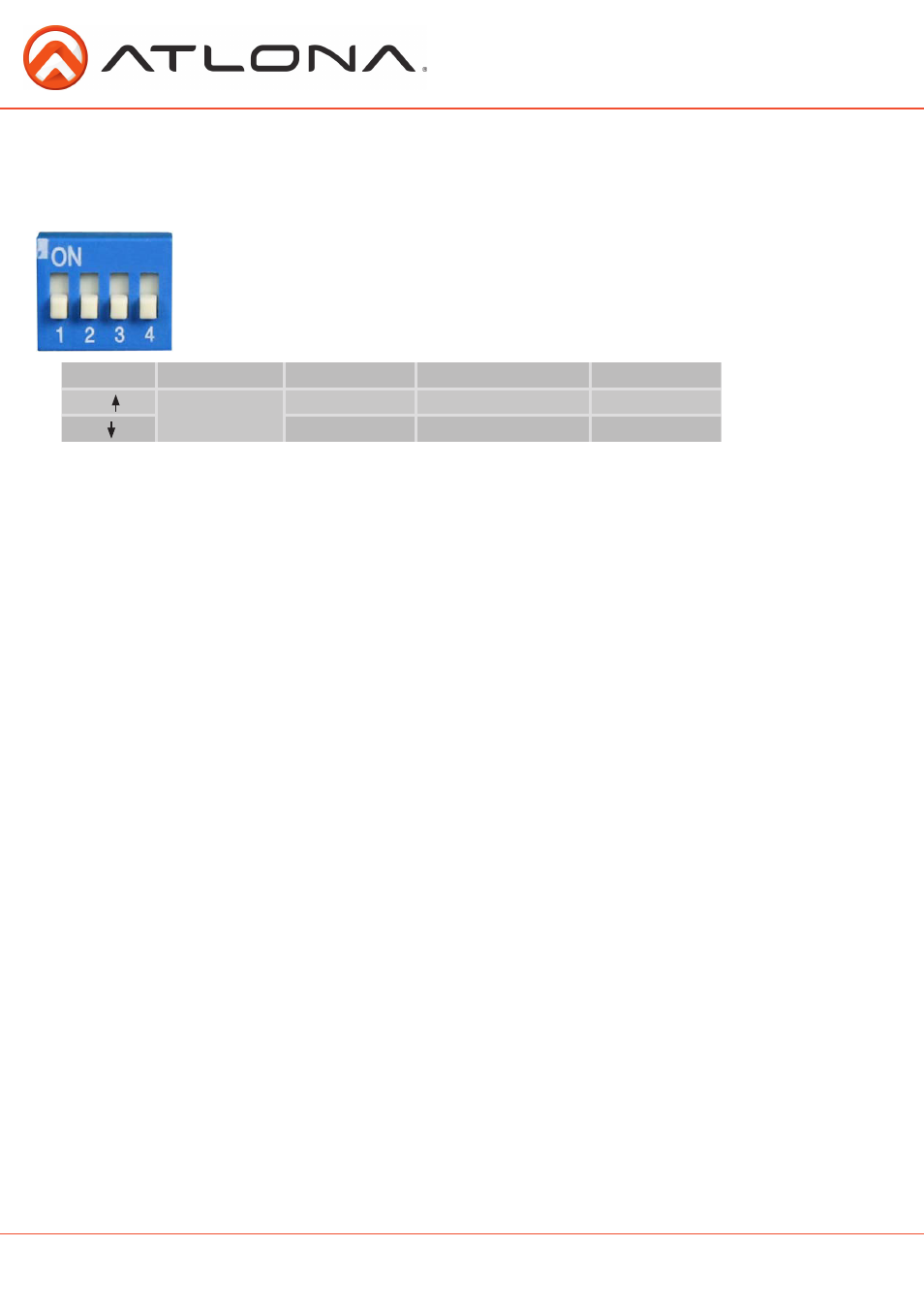

A 4-pin DIP switch is used for user interface, and users can access this
switch from the bottom of the unit.
A 4-pin DIP switch is used for user interface, and users can access this switch from the bottom of the unit.
