12.1. Setting the Display Resolutions
To change the display’s resolution, select an available resolution from the Display Preferences window of the display you
wish to change:
The resolutions available depend on both the DisplayLink enabled product and the capabilities of the connected display.
12.2. Rotating a Display
If you wish to rotate your display, you can configure the orientation using the ‘Rotate’ drop down. Select the appropriate
angle of rotation to match your display’s set up:
Each time the user rotates, any settings made to the mode, resolution, frequency or depth are remembered the next time
the user switches back to that angle of rotation.

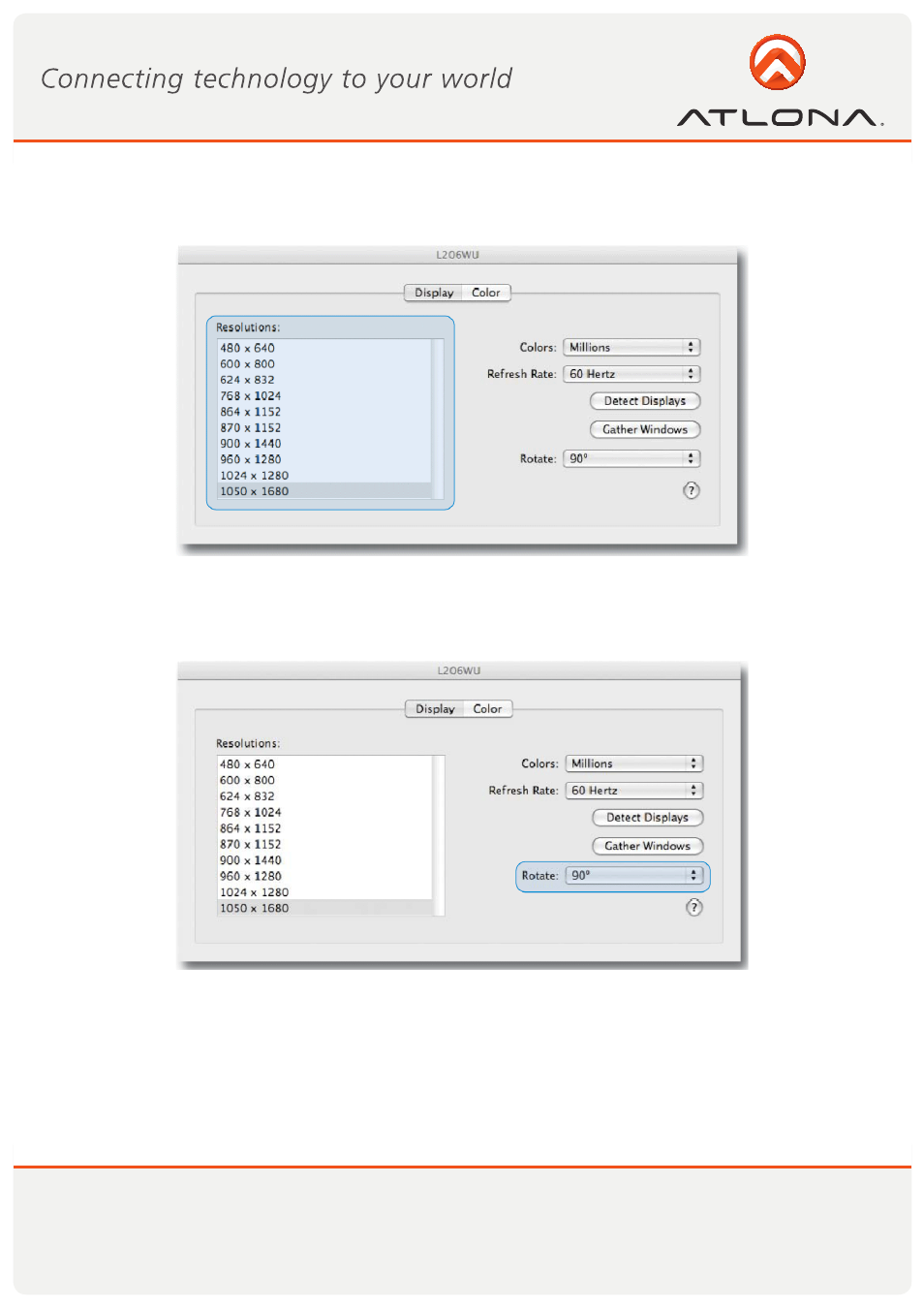

Display Preferences:
Resolution Options
Display Preferences:
Rotation Options
