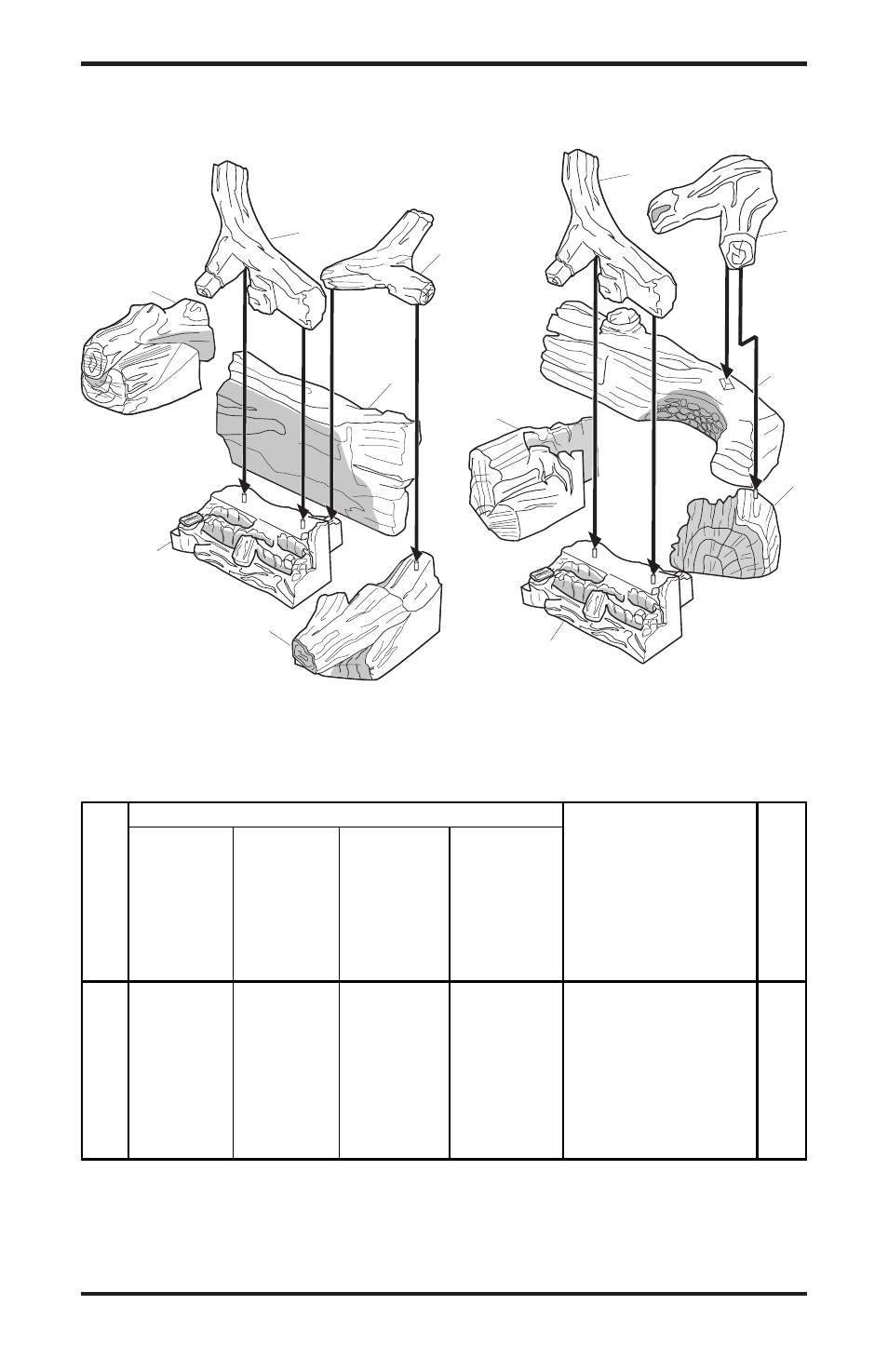

ILLUSTRATED PARTS BREAKDOWN
LOGS
PART NUMBER
CSG3924NT
CSG3924PT
CSG3924NR
CSG3924PR
VRL24NT VRL30NT CTB3924NT
VRL24PT VRL30PT CTB3924PT
KEY VRL24NR VRL30NR CTB3924NR CSG3930NR
NO. VRL24PR VRL30PR CTB3924PR CSG3930PR DESCRIPTION QTY.
1 110020-01 110020-02 110020-03 110020-04 Log Set 1
2 110103-01 110103-01 110103-01 110103-01 Log Ember Bed 1
3 110105-01 110106-01 110107-01 111528-01 Log, Right Front 1
4 110105-02 110106-02 110107-02 111528-02 Log, Left Front 1
5 110105-03 110106-03 110107-03 111528-03 Log, Back 1
6 110105-04 110105-04 110107-04 111528-04 Log, Right Crossover 1
7 110104-01 110104-01 110104-01 110104-01 Log, Left Crossover 1
Log Set for Models:
VRL24NT, VRL24PT, VRL24NR,
VRL24PR, VRL30NT, VRL30PT,
VRL30NR, VRL30PR
Log Set for Models:
CSG3924NT, CSG3924PT, CSG3924NR,
CSG3924PR, CSG3930NR, CSG3930PR,
CTB3924NT, CTB3924PT,
CTB3924NR, and CTB3924PR
2
3
5
4
2
3
6
7
7
5
4
6
