INSTALLATION

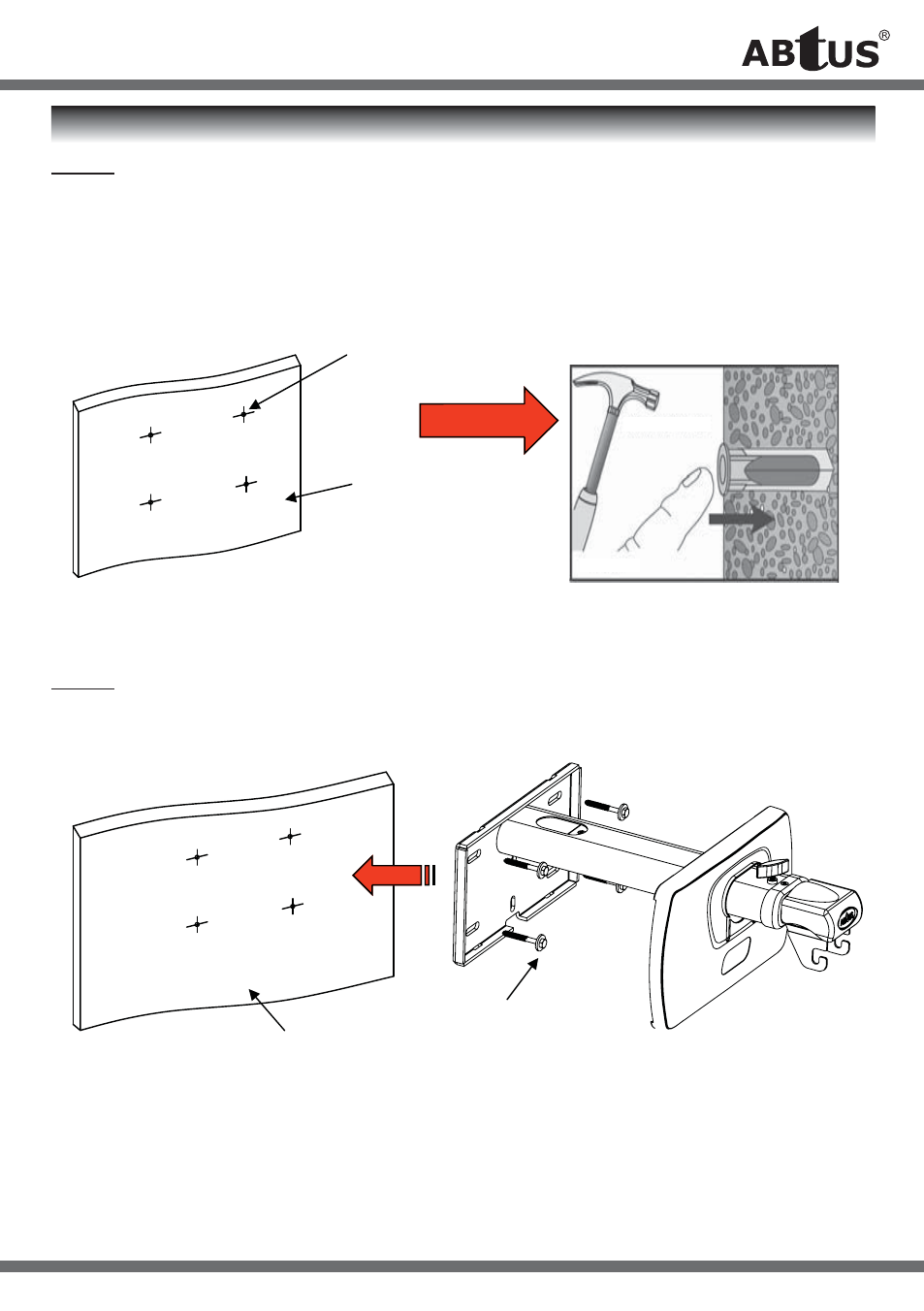

Step - 1
Mark the position on the wall for the Wall Plate. Drill and insert Wall Anchors (in Item 4)into concrete wall.
Note: do not use Wall Anchor for mounting on wooden wall.
Note: Mounting position will be vary dependant on the Brand and Model of Projector used. Please refer to
Projector User Manual for installation details.
Step - 2
Mount Wall Arm (Item 1) onto wall by using the Lag Bolts and Washers (in Item 4) provided.
markings
Wall
Hammer
Gently
Push in
Wall
Lag bolts and Washer
