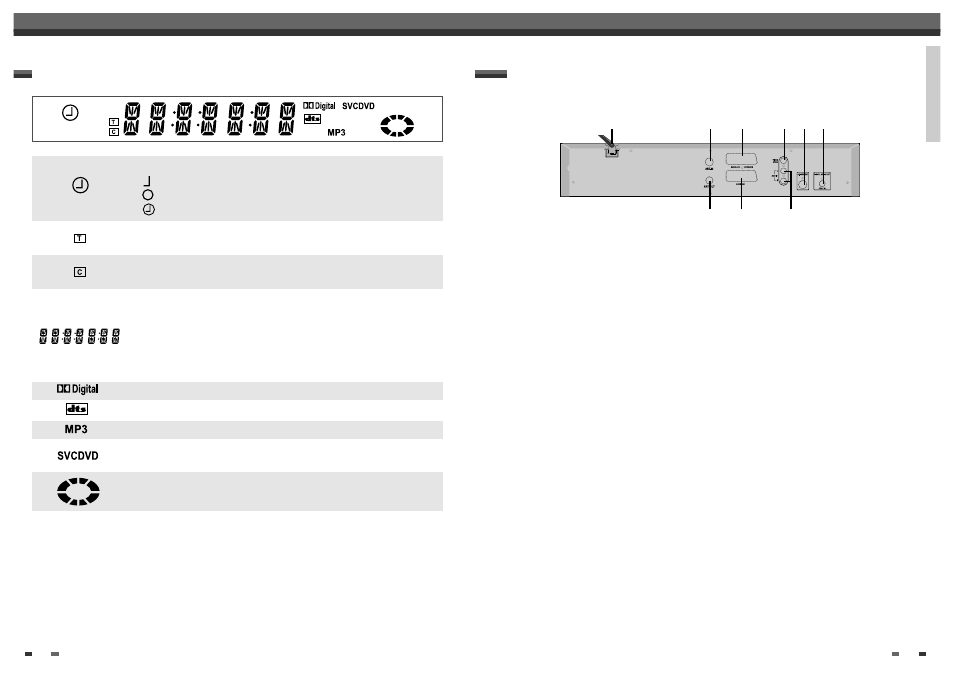

Identification of Controls Identification of Controls
Rear panel Operation Display Window
! Mains socket
Connection to the mains supply
@ Aerial input
Connection of the aerial
# Scart socket 2
Connection of an additional device (satellite
receiver, set-top box, video recorder, camcorder,
etc.)
$ Video output
Connection for a TV set with a video input (CVBS,
Composite Video)
% S Video output
Connection for an S-Video compatible TV set
^ Digital audio output
Connection of a digital audio device (amplifier/
receiver)
& Aerial output
Connection of the TV set
* Scart socket 1
Connection of a TV set. RGB-output
( Analogue audio output
Connection of a TV set with audio input sockets
or connection of an additional device
! @ $ # % ^
& * (
REC and TIMER REC display
To be Timer-recorded
Recording
TIMER Recording /OTR (One Touch Recording)
TITLE
Displays the title number selected/played (DVD)
CHAPTER
Displays the chapter selected/played
Time, Counter and Current Operation
Tray is opened Tray is closed
Disc is loaded There is no disc in tray
Disc has some error Menu screen is displayed
Setup menu is displayed Power is ON
Power is OFF
Dolby Digital Indicator
dts Disc Indicator
MP3 Disc Indicator
Disc Type Indicator
Currently loaded disc type (SVCD, VCD, DVD, CD etc.) is displayed.
Disc Operation
