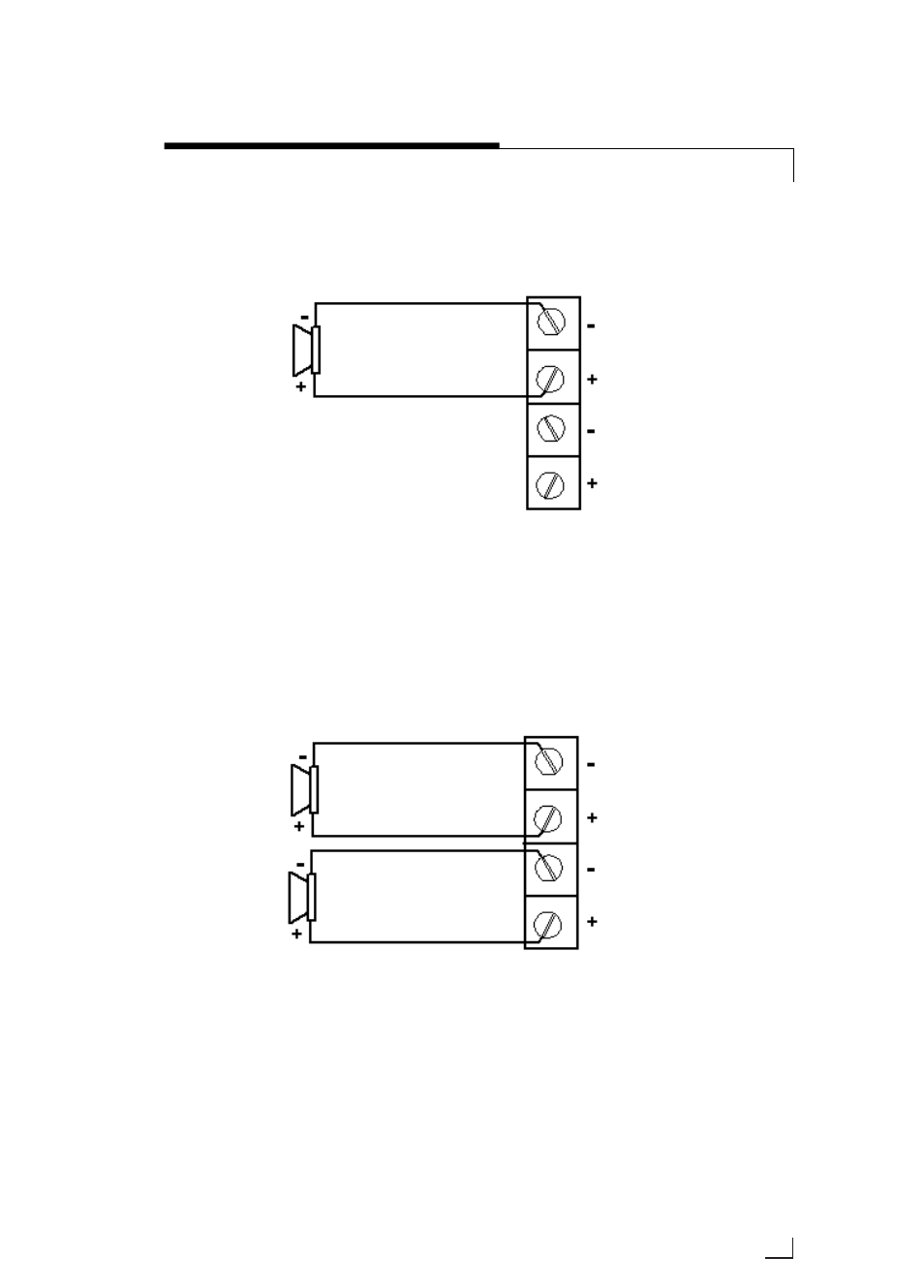

SPEAKER WIRING DIAGRAMS

Single subwoofer connection (top view)

Two subwoofer connection (top view)

NNOOTTEE::

The dual + and -- subout terminals of the 600d/1100d are paralleled internally and the combined load impedance should be
taken into consideration when connecting multiple subwoofers.
