TOP PANEL CONTROLS
GAIN FREQ
MIN 30Hz MAX 250Hz
PHASE
BASS EQ SUBSONIC
OFF OFF
0
ON ON
180

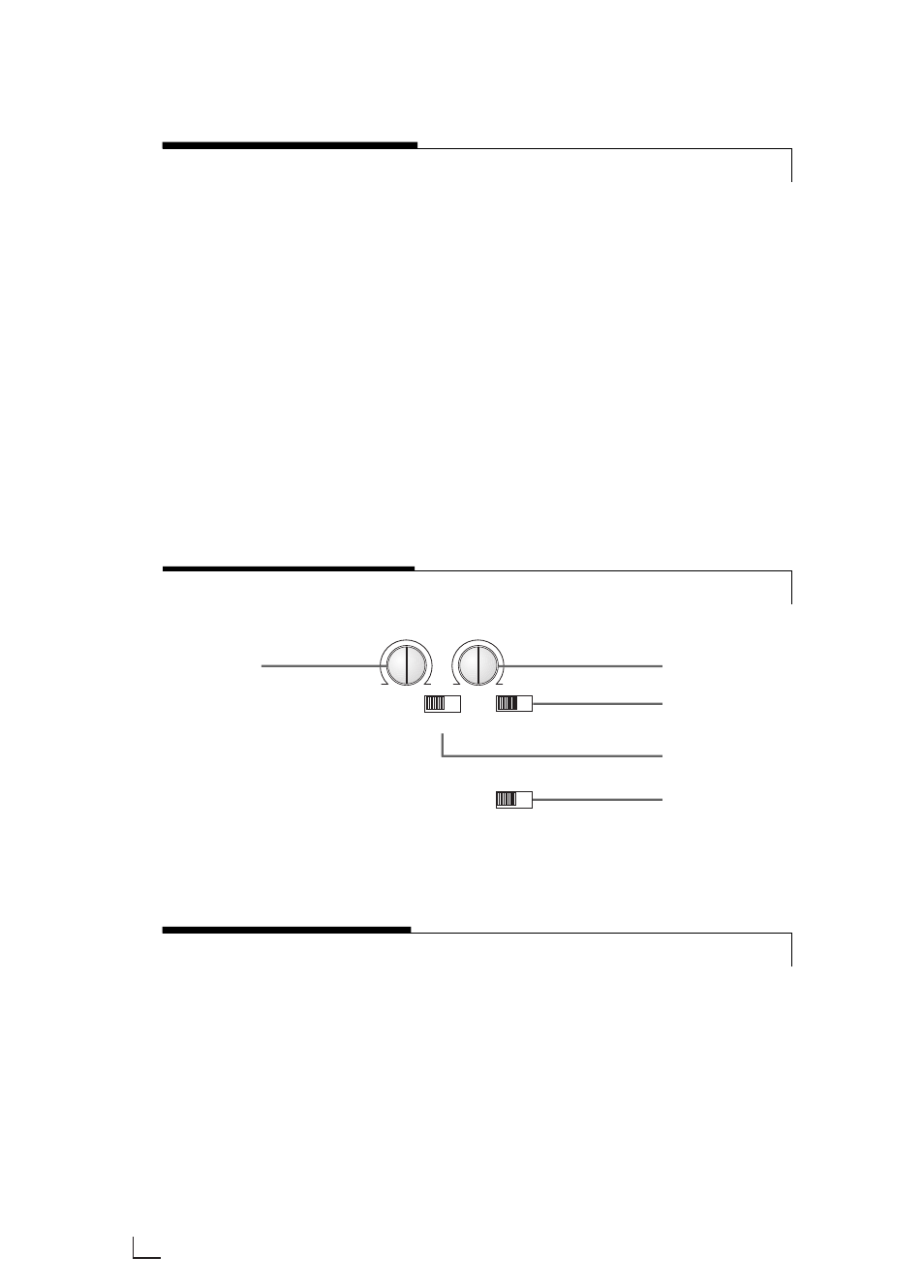

FIGURE 4—AMPLIFIER CONTROLS TOP
1. IInnppuutt GGaaiinn AAddjjuussttm meenntt - Controls
the amplifier’s sensitivity and is
used to match the input level of the
amplifier to the output level of the
signal source.
2. CCrroossssoovveerr FFrreeqquueennccyy AAddjjuussttm meenntt -
Adjusts the crossover point for the
on-board low-pass crossover.
3. SSuubbssoonniicc FFrreeqquueennccyy SSw wiittcchh - Sets
the cutoff point for subsonic
frequencies below 30Hz. Frequen-
cies below 30Hz will be attenuated
by 24db per octave.
4. BBaassss EEQQ SSw wiittcchh - Adds 8db of addi-
tional boost to the subwoofer
output when active.
5. SSuubb PPhhaassee SSw wiittcchh - Changes the
phase of the subwoofer output by
180 degrees.
4
1 2
3
5
Control Panel Cover
The gain and filter controls are located
under a control panel cover on top of
the amplifier. The control panel cover
must be removed to gain access to the
gain and filter controls.
Remove/Install
Four Allen-head screws hold the control
panel cover to the amplifier top panel,
one at each corner. They can be
removed with the wrench supplied in
the hardware pack.
TOP PANEL FEATURES
