2.2 Overview

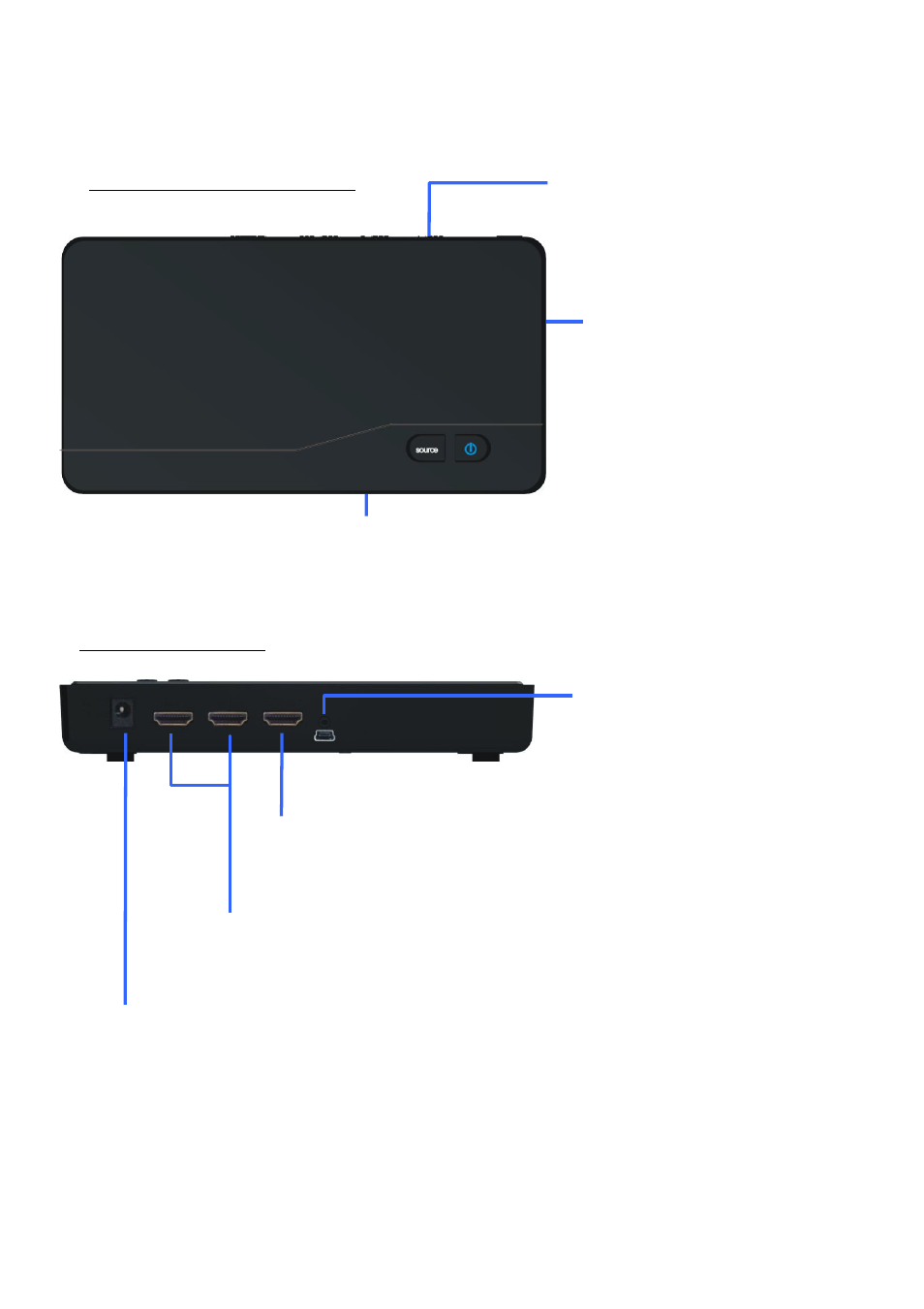

2.2.1 WHD200T (TX): PC to TV Transmitter
 Front Panel Buttons and LEDs
 Main Unit Back Panel
 Power Button with LED
Indicator
Press to turn the transmitter on
and off. The indicator in the
power button is lit in solid blue
when the power is on, and turns
red in standby mode.
 Source Selection Button
Press to switch Source inputs of
the transmitter.
 Source LEDs
These two LED indicators are lit in solid blue to show
current input you switch.
 IR OUT Blaster Extender
Jack
Plug the IR Blaster Extender
Cable into the IR OUT jack of
the transmitter.
 DC IN
For connecting the SWW1810T power adapter.
HDMI OUT
Connect Transmitter to High-definition audio/video devices
that have an HDMI port using a provided HDMI cable.
 HDMI OUT
Connect to HDTV set via an HDMI cable.
