9
English
Introduction
3D SYNC
Out 5V
5V PWR
Out 6W ( ) ( ) 3D SYNC
Out 5V
5V PWR
Out 6W ( ) ( )

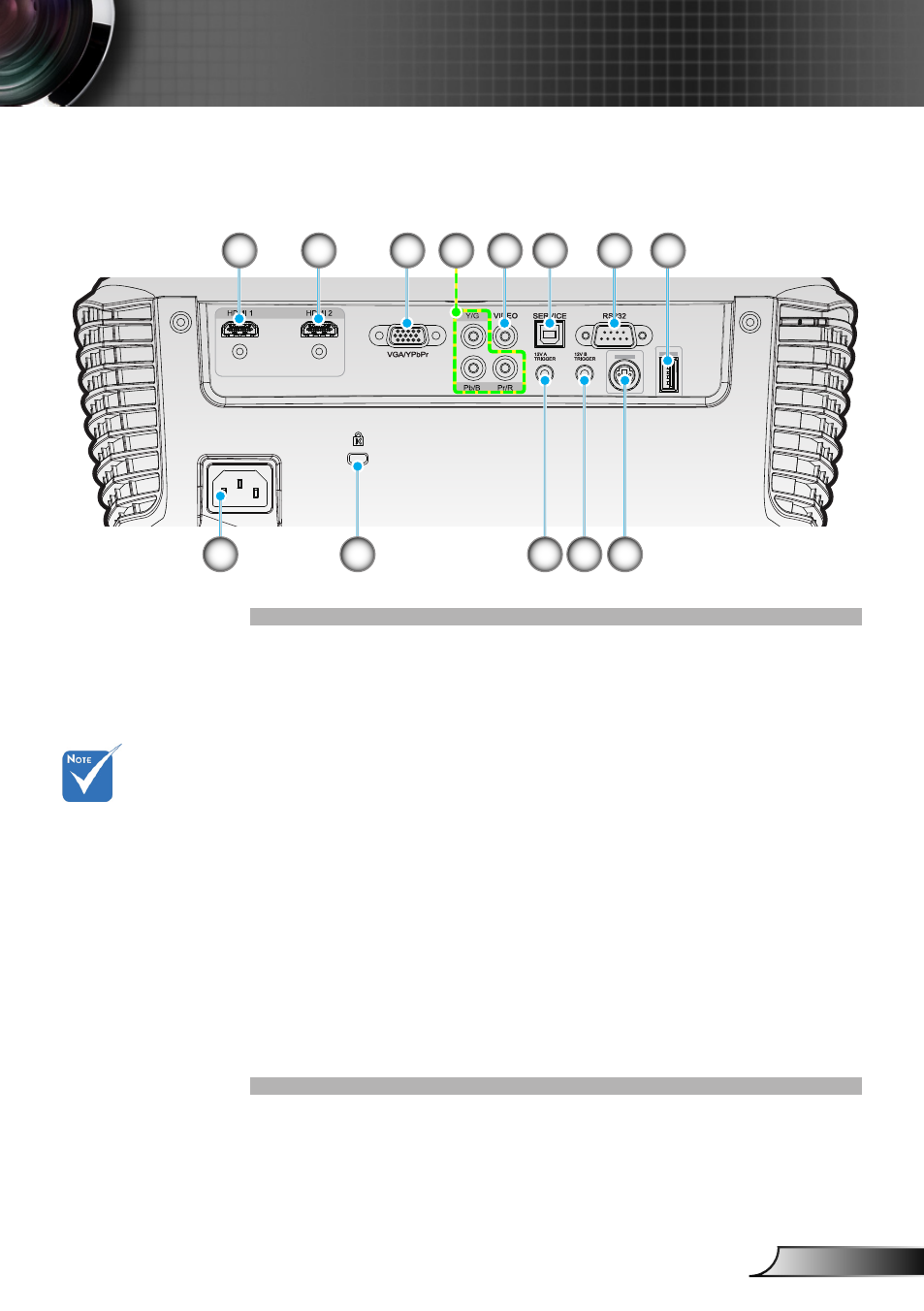

Input/Output Connections
HDMI 1 Connector (v1.4a 3D supported) 1.
HDMI 2 Connector (v1.4a 3D supported) 2.
VGA-In/YPbPr Connector 3.
(PC Analog Signal/Component Video Input/HDTV/YPbPr)
Component Video Input Connector (YPbPr) 4.
Composite Video Input Connector 5.
USB for firmware upgrade 6.
RS-232 Connector (9-pin) 7.
USB for Power (5V@1A) 8.
Power Socket 9.
Kensington 10. TM Lock Port
12V Trigger A Relay Connector (12V, 250mA. 3.5mm Mini 11.
Jack)
12V Trigger B Relay Connector (12V, 250mA. 3.5mm Mini 12.
Jack)
3D Sync Out (5V) 13.
The interface is ™
subject to model’s
specifications.
1 2 3 5 6 7
9 10
4 8
11 12 13
