KEY PART NAME DELFIELD PART #
Complete assembly, 115V, infinite w/drain XMK00104
Complete assembly, 115V, infinite w/o drain XMK00105
Complete assembly, 208V, infinite w/drain XMK00068
Complete assembly, 208V, infinite w/o drain XMK00106
1 Deflector plate GMK00061
2 Bottom cover GMK00062
3 Food well, with drain 016-0014
Food well, without drain 016-0015
4 Screw 932-1353
5 Element, 115V 219-4006
Element, 208V 219-4007
6 Screws (2) 932-1379
7 Insulation 343-4663
8 Thermostat non-adjustable 219-4335
9 Screw 932-1007
10 Drain cover GMK00063
11 Screws (2) 932-1007
12 Infinite control, 120V 219-4107
Infinite control, 230V 219-4110
13 Infinite control knob 323-4557
14 Pilot light, red, 115V 219-4190
Pilot light, amber, 230V 219-4095

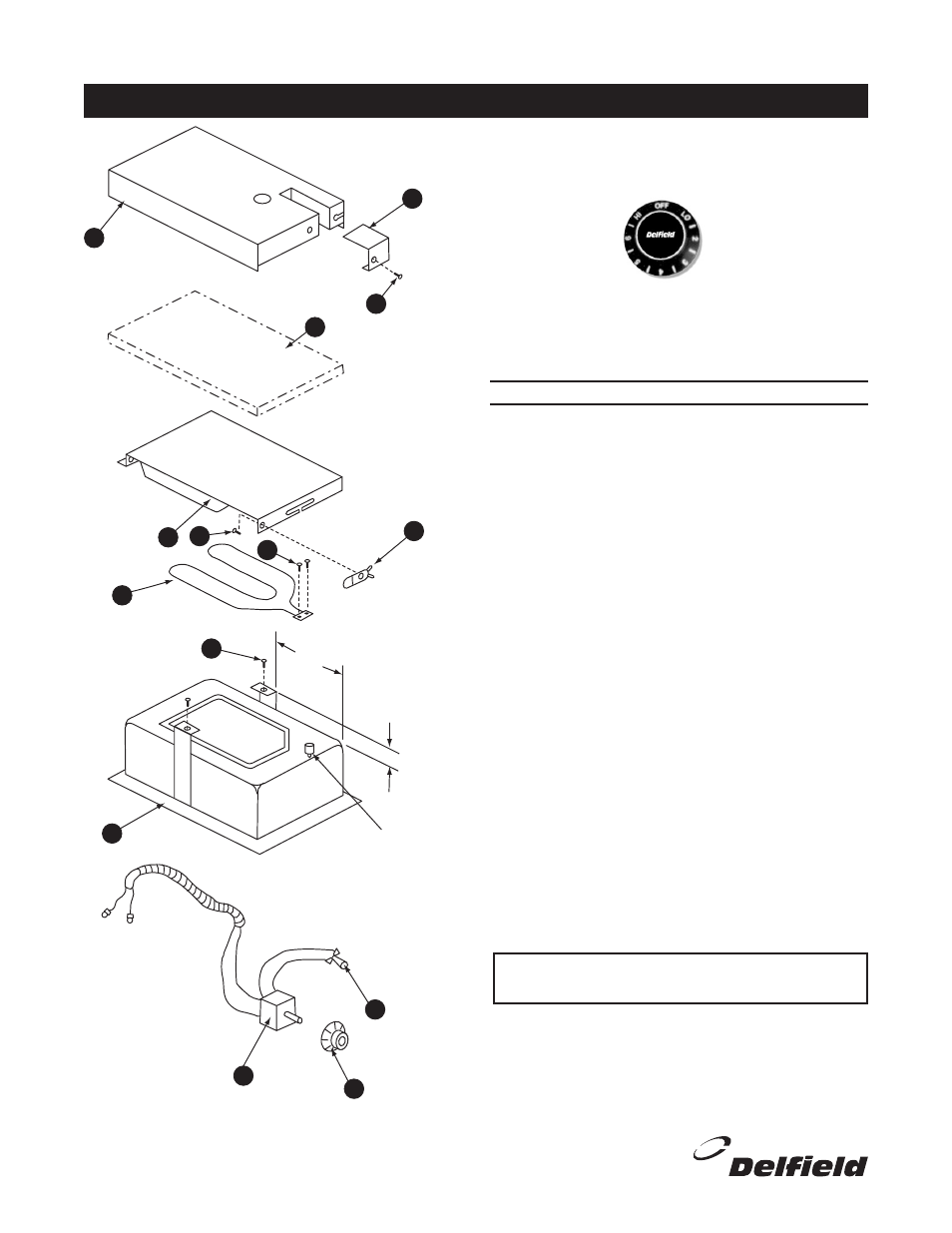

DELFIELD FOOD WELL (DFW) ASSEMBLY:
WITH INFINITE CONTROL
8.50
2.31 CLEAR
DRAIN
OPTIONAL
3
11
8
6
1
5
9
10
4
7
2
12
14
13
INFINITE
CONTROL
NOTE: If you need four or more component parts, you
must buy a complete assembly.
