F14 AND 48000 Series Service and Installation Manual
For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com
6
F14 AND 48000 Series Service and Installation Manual
7
For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com

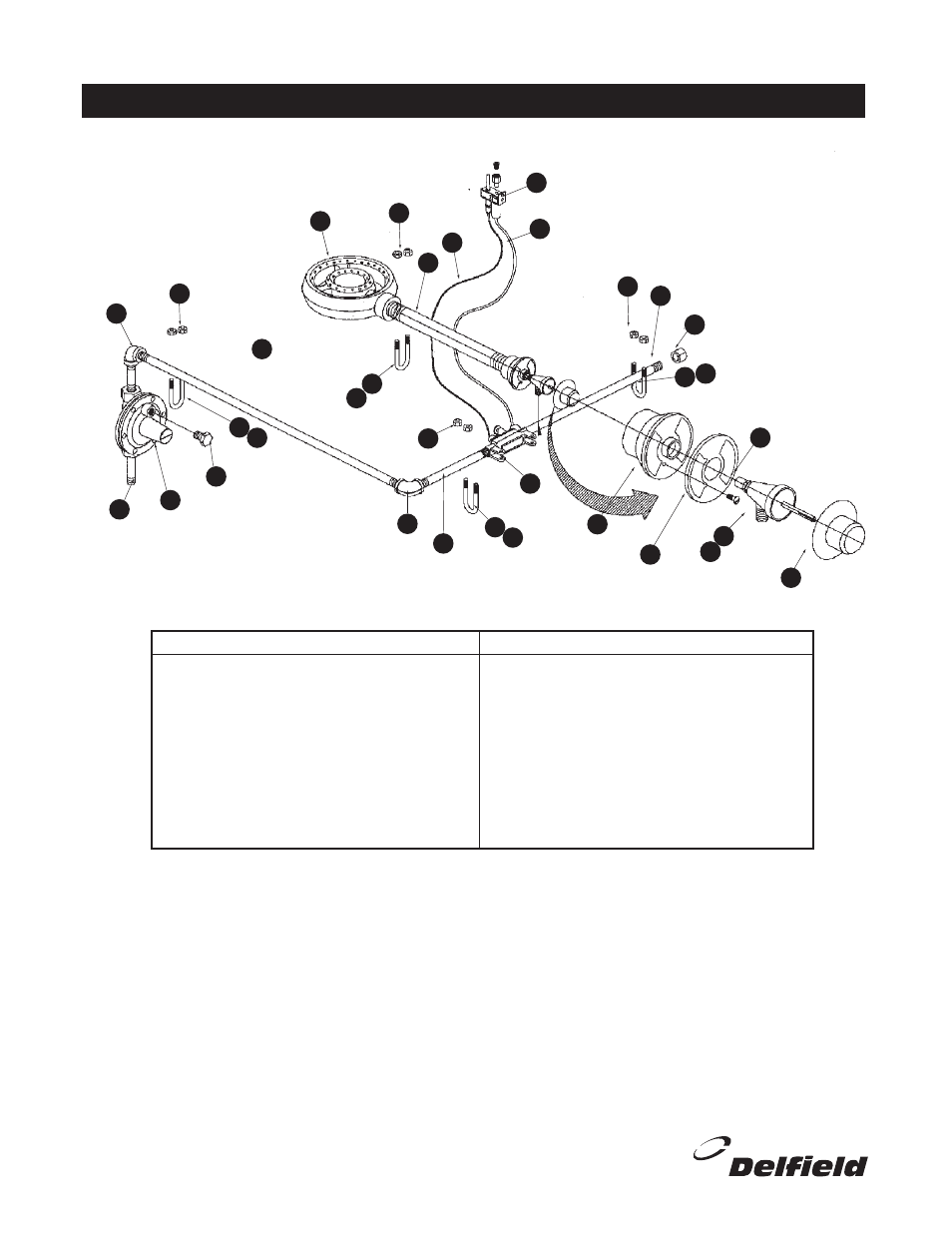

GAS BURNER ASSEMBLY: F14GW SERIES (SINGLE SHOWN)
23
21
22
20
18
19
16 15
10
23
2
9
7
8
6
13
12
11
1
3
2
5
4
16
15
2
2
16
15
1
14
16
15
17
KEY QTY PART# DESCRIPTION
1 2 3547413 elbow 1/2” NPT
2 8 9321035 nut, 1/4-20
3 1 3547411 manifold nipple, 23”
4 1 3234205A gas burner assy
5 1 3547409 nipple, 3/4 x 12
6 1 3234341 thermocouple
7 1 3234342 pilot assembly
8 20 3547329 tubing, copper, 1/4 O.D. x .028
9 1 3547407 pipe, manifold, valve, 12”
10 1 3547408 cap, 1/2 NPT
11 2 3547234 nipple, 1/2” x 2”
12 1 3234022 regulator, natural gas
KEY QTY PART# DESCRIPTION
13 1 3234023 device, vent limiting, gas reg.
14 1 3547406 nipple, 1/2 x 6.5”
15 4 9321157 u-bolt, 1/4 - 20
16 8 9321059 washer, 1/4
17 1 3234343 valve, safety
18 1 3234205B chamber, air mixing
19 1 3234205C plate, air mixing
20 1 3547593 fitting, inlet, burner (natural)
21 1 3234205D cock, front handle
22 1 3234205E handle, valve
23 1 3547591 fitting, inlet burner (LP)
24 1 3547412 nipple, manifold 31.25” dbl bnr only
NOTE: The same parts are used for the
double burner assembly
