PORTABLE FORCED AIR HEATERS

RJ45 And RJ70

PUMP PRESSURE
ADJUSTMENT

1.

Remove pressure gauge plug from filter
end cover.

2.

Install accessory pressure gauge (part
number HA1180).

3.

Start heater (see Operation, page 5). Al-
low motor to reach full speed.

4.

Using a flat blade screwdriver, adjust
pressure. Turn relief valve to right to
increase the pressure. Turn relief valve
to left to decrease the pressure. Set
pump pressure as follows:

RJ45: 0.22 kg/cm

2

at 50 Hz.

0.24 kg/cm

2

at 60 Hz.

RJ70: 0.35 kg/cm

2

at 50 Hz.

0.38 kg/cm

2

at 60 Hz.

5.

Remove pressure gauge. Replace pres-
sure gauge plug in filter end cover.

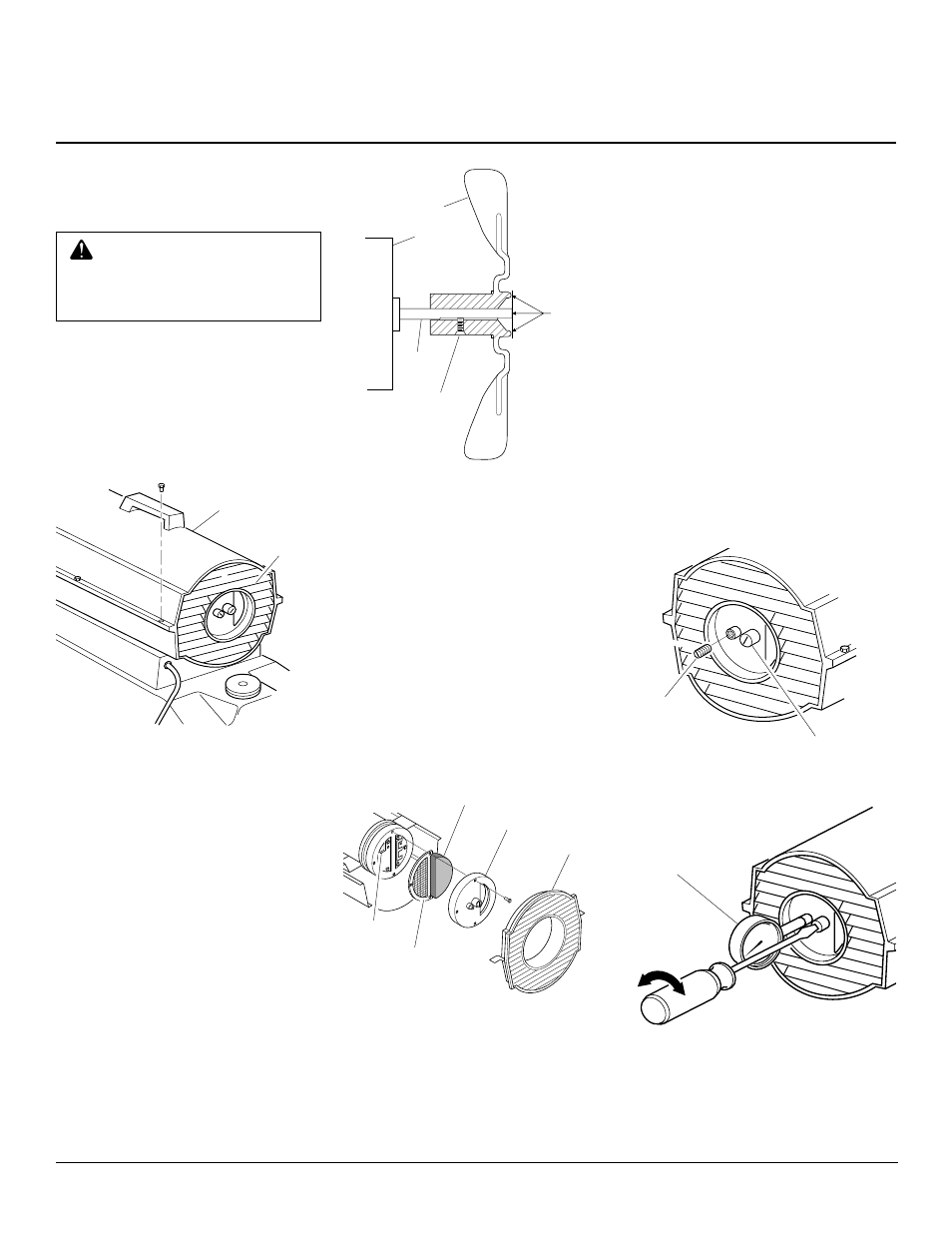

Figure 7 - Pressure Gauge Plug Removal

Figure 8 - Adjusting Pump Pressure

Pressure
Gauge

SERVICE
PROCEDURES

WARNING: Never service

heater while it is plugged in, op-
erating, or hot. Severe burns and
electrical shock can occur.

Figure 4 - Upper Shell Removal

Figure 6 - Air Output, Air Intake, and Lint
Filters

Figure 5 - Fan Cross Section

Upper Shell

Fan
Guard

UPPER SHELL REMOVAL

1.

Remove screws along each side of
heater using 5/16" nut-driver. These
screws attach upper and lower shells
together.

2.

Lift upper shell off.

3.

Remove fan guard.

FAN

IMPORTANT:

Remove fan from motor

shaft before removing motor from heater.
The weight of the motor resting on the
fan could damage the fan pitch.

1.

Remove upper shell (see above).

2.

Use 1/8" Allen wrench to loosen set-
screw which holds fan to motor shaft.

3.

Slip fan off motor shaft.

4.

Clean fan using soft cloth moistened
with kerosene or solvent.

5.

Dry fan thoroughly.

6.

Replace fan on motor shaft. Place
fan hub flush with end of motor
shaft (see Figure 5).

7.

Place setscrew on flat of shaft.
Tighten setscrew firmly (7200-8900
grams/centimeter).

8.

Replace fan guard and upper shell.

Fan

Motor

Flush

Setscrew

Motor
Shaft

Air Intake Filter

Filter End Cover

Fan Guard

Air Output Filter

Lint Filter

AIR OUTPUT, AIR INTAKE,
AND LINT FILTERS

1.

Remove upper shell (see Upper Shell
Removal
).

2.

Remove filter end cover screws using
5/16" nut-driver.

3.

Remove filter end cover.

4.

Replace air output and lint filters.

5.

Wash or replace air intake filter (see
Preventative Maintenance Schedule,
page 5).

6.

Replace filter end cover.

7.

Replace fan guard and upper shell.

IMPORTANT:

Do not oil filters.

Relief Valve

Pressure
Gauge
Plug
