Digimate DGL3704M User Manual
Page 12
10
Operation - TV
O
O
O
S
S
S
D
D
D
M
M
M
E
E
E
N
N
N
U
U
U
D
D
D
E
E
E
S
S
S
C
C
C
R
R
R
I
I
I
P
P
P
T
T
T
I
I
I
O
O
O
N
N
N
To access MENU, navigate and make adjustments using; MENU、cCH、dCH、
eVOL、f VOL and ENTER.
y
Pressing “MENU” displays the OSD menu. Use cCH / dCH on the remote
controller to scroll the options on the menu.
y
Press “ENTER” button to enter sub menu.
y
Usee/f to adjust settings.
y
Press “ENTER” to confirm desired settings.
y
Press “MENU” after adjustment is made, to revert to the next adjustment.
y
Press “MENU” to exit the current OSD menu.

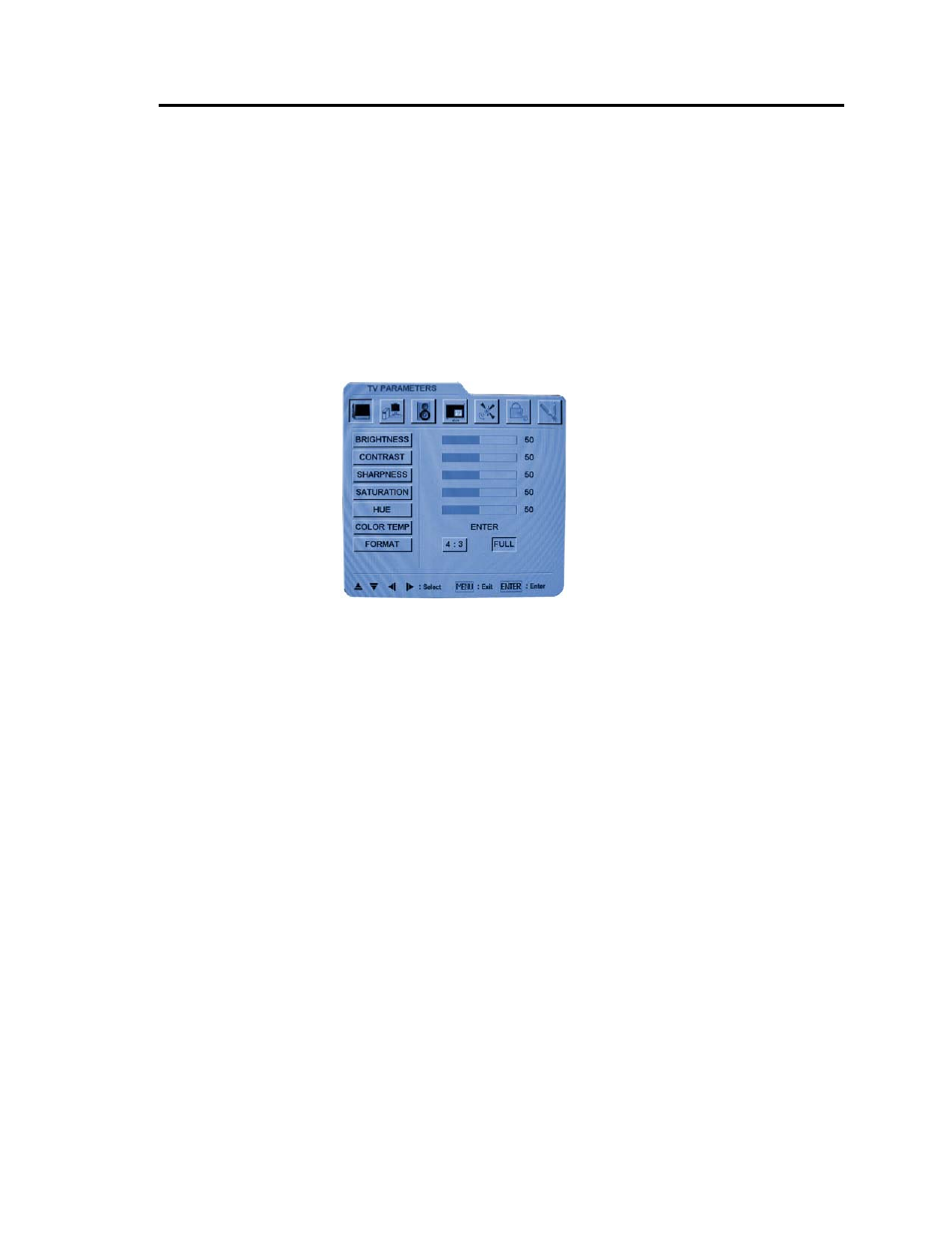

Main Menu:
There are seven SUB-MENUS in the main OSD Menu.
1. TV PARAMETERS; 2.PC PARAMETERS; 3.AUDIO SETTINGS; 4.Picture-In-Picture;
5.CHANNEL SETTINGS; 6.PARENTAL CONTROLS; 7.GENERAL SETTINGS.
In TV mode – Press MENU
Use e/f buttons to select the submenu: TV Parameters, Audio Setting, Picture-In-
Picture, Channel Settings, Parental Controls, and General Settings.
Note: In TV mode, “PC Parameters” cannot be selected.
In Video mode (S-VIDEO, AV1 ,AV2, AV3, COMPONENT1(Y1Cb1Cr1) ,
COMPONENT2(Y2Pb2Pr2))
Press “MENU” button, Main menu will be displayed on the screen (see figure above).
Use e/f buttons to select the submenu: TV Parameters, Audio Setting, Picture-In-
Picture, and General Settings.
Note: 1. In this mode, “Channel Settings” cannot be selected.
2. For
devices with PROGRESSIVE SCAN 480p, 720p or 1080i output, connect
them to Component-2 jacks to obtain the ideal resolution and picture quality.
In PC mode (DVI, VGA)
Press “MENU” button, Main menu will be displayed on the screen (see figure above).
Use e/f buttons to select the submenu: Audio Settings,
Picture-In-Picture
and General
Settings.
Note: In this mode, “TV Parameters” and “Channel Settings” cannot be selected.
